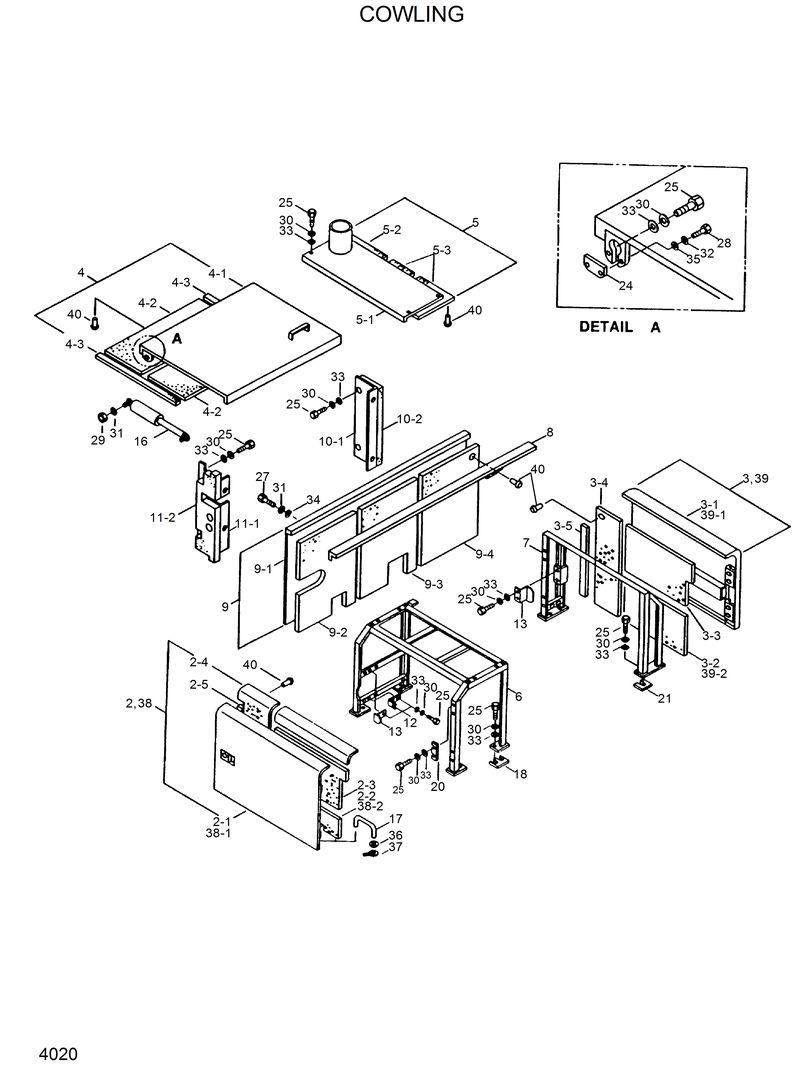

Запчасти Hyundai R320LC COWLING

71E8-24211

71E8-24211-. Sponge

71E8-24201

71E8-24201-. Plate

10

71E8-2413

71E8-2413-Screen Assy-F/Tank

10-1

71E8-2410

71E8-2410-. Screen Plate

10-2

71E8-2411

71E8-2411-. Sponge

11

71E8-24231

71E8-24231-Screen Assy-H/Tank

11-1

71E8-2420

71E8-2420-. Screen Plate

11-2

71E8-2421

71E8-2421-. Sponge

13

E271-2100

E271-2100-Bracket-Cover Lock

16

E271-2128

E271-2128-Gas Spring

17

E171-2014

E171-2014-Stay

18

E171-2053

E171-2053-Shim

2

71E8-21501

71E8-21501-Side Cover Assy-Lh

2-1

71E8-2151

71E8-2151-. Side Cover Wa-Lh

2-2

71E8-21541

71E8-21541-. Sponge

20

E271-2166

E271-2166-Shim

21

71E3-2103

71E3-2103-Shim

24

71E9-2208

71E9-2208-Plate

25

S017-120252

S017-120252-Bolt-Hex

27

S015-080302

S015-080302-Bolt-Hex

28

S015-040152

S015-040152-Bolt-Hex

29

S205-081002

S205-081002-Nut-Hex

3

71E8-21601

71E8-21601-Side Cover Assy-Rh

3-1

71E8-2161

71E8-2161-. Side Cover Wa-Rh

3-2

71E8-21641

71E8-21641-. Sponge

3-3

71E8-22410

71E8-22410-. Sponge

3-3

71E8-22410

71E8-22410-. Sponge

3-4

71E8-22420

71E8-22420-. Sponge

3-4

71E8-22420

71E8-22420-. Sponge

30

S411-120002

S411-120002-Washer-Spring

31

S411-080002

S411-080002-Washer-Spring

32

S411-040002

S411-040002-Washer-Spring

33

S403-122002

S403-122002-Washer-Plain

34

S403-082002

S403-082002-Washer-Plain

35

S401-042002

S401-042002-Washer-Plain

36

S403-102002

S403-102002-Washer-Plain

37

S461-250202

S461-250202-Pin-Split

38

71E8-53100

71E8-53100-Side Cover Assy-Lh

38-1

71E8-53110

71E8-53110-. Side Cover Wa-Lh

39

71E8-53200

71E8-53200-Side Cover Assy-Rh

39-1

71E8-53210

71E8-53210-. Side Cover Wa

39-2

71E9-2154

71E9-2154-. Rubber Pad

39-2

71E9-2154

71E9-2154-. Rubber Pad

39-2

71E9-2154

71E9-2154-. Rubber Pad

39-2

71E9-2154

71E9-2154-. Rubber Pad

4

71E8-2200

71E8-2200-M.C.V Hood Assy

4-1

71E8-2201

71E8-2201-. M.C.V Hood Wa

4-2

71E9-2116

71E9-2116-. Sponge

4-3

71E9-2206

71E9-2206-. Rubber Pad

40

71E1-5218

71E1-5218-Pin-Cap & Galv

5

71E8-2240

71E8-2240-Pump Hood Assy

5-1

71E8-2250

71E8-2250-. Pump Hood Weld Assy

5-2

71E8-2251

71E8-2251-. Sponge

5-3

71E0-0504

71E0-0504-. Sponge

6

71E8-2300

71E8-2300-Support Wa-Lh

7

71E8-2350

71E8-2350-Support Wa-Rh

8

71E8-23700

71E8-23700-Support Eng Hood Wa

9

71E8-24100

71E8-24100-Screen Assy

9-1

71E8-24011

71E8-24011-. Screen Plate

9-2

71E8-24120

71E8-24120-. Sponge

9-3

71E8-24130

71E8-24130-. Sponge

9-4

71E8-24140

71E8-24140-. Sponge

N12

E271-2099

E271-2099-Bracket-Side Cover
