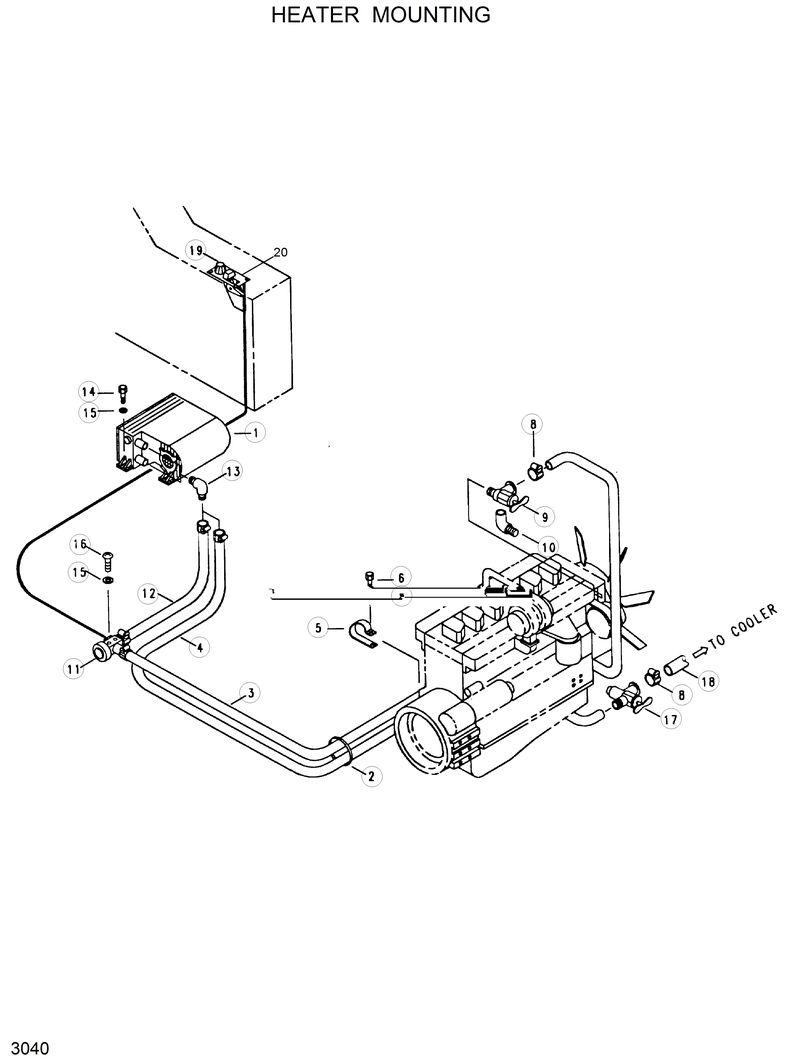

Запчасти Hyundai R320LC HEATER MOUNTING

E127-3136

E127-3136-Valve-Cut Off

S551-035146

S551-035146-Tie-Wire

E127-3136

E127-3136-Valve-Cut Off

1

E127-3034

E127-3034-Heater Unit

10

21L1-4006

21L1-4006-Adapter

11

21E3-4009

21E3-4009-Valve-Adjustable

12

21E3-4010

21E3-4010-Hose-Outlet

13

31E4-5005

31E4-5005-Adaptor-Hose

14

S015-080202

S015-080202-Bolt-Hex

15

S411-080002

S411-080002-Washer-Spring

16

S161-080152

S161-080152-Screw

17

E127-3135

E127-3135-Valve-Cut Off

18

21E9-4014

21E9-4014-Hose

19

E123-2533

E123-2533-Sw-Heater

2

S551-001500

S551-001500-Tie-Wire

20

21E8-0003

21E8-0003-Plate-Rh(1)

3

21E5-4005

21E5-4005-Hose-Inlet

4

21E5-4006

21E5-4006-Hose-Outlet

5

S542-260002

S542-260002-Clamp

6

S015-060202

S015-060202-Bolt-Hex

7

S411-060002

S411-060002-Washer-Spring

8

S520-027000

S520-027000-Clamp
