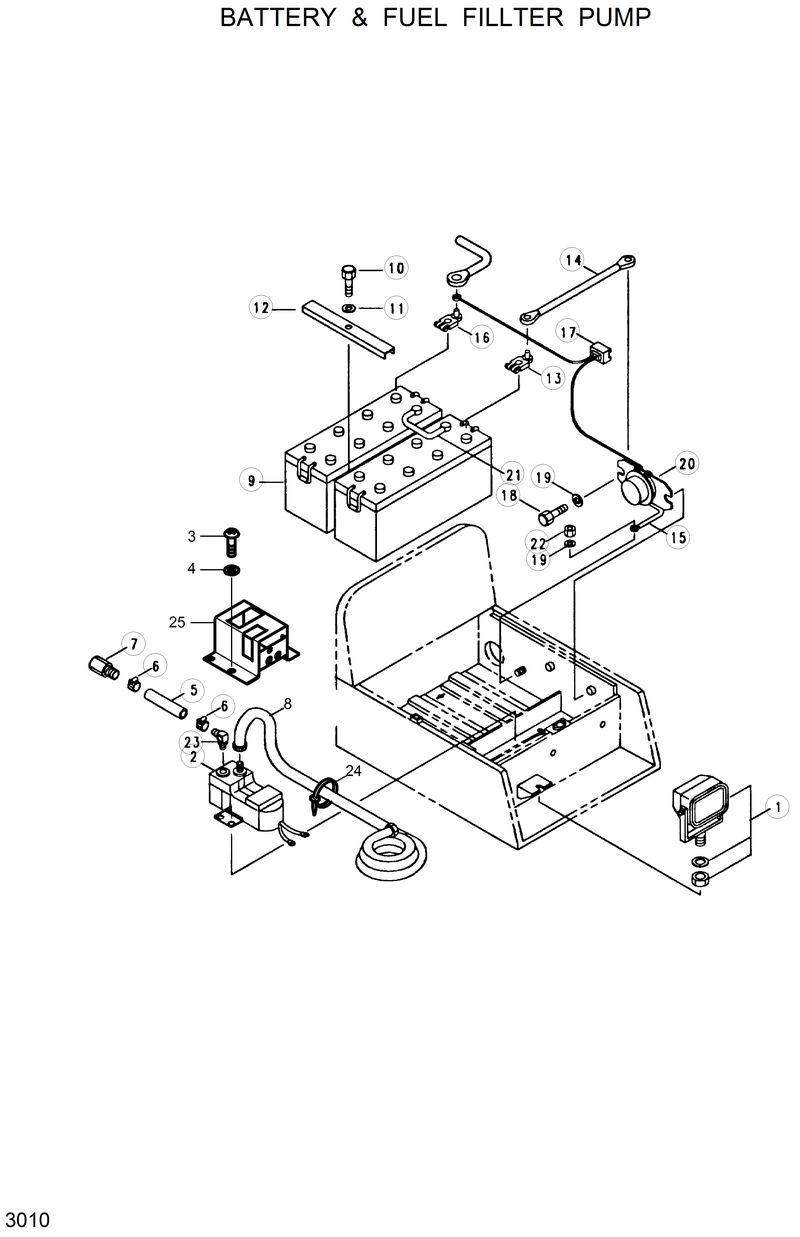

Запчасти Hyundai R320LC BATTERY & FUEL FILLER PUMP

24E7-30070

24E7-30070-Fuel Filler Pump Assy

S401-041002

S401-041002-Washer-Plain

S401-041002

S401-041002-Washer-Plain

1

21E7-2014

21E7-2014-Work Light Assy

1-1

21E1-49610

21E1-49610-. Bulb

10

S017-102652

S017-102652-Bolt-Hex

11

S411-100002

S411-100002-Washer-Spring

12

E125-1502

E125-1502-Bracket-Battery

13

21E3-1018

21E3-1018-Terminal-Battery

14

21E8-1010

21E8-1010-Cable(Batt-Relay)

15

21E5-1015

21E5-1015-Cable Relay-Earth

16

21E3-1017

21E3-1017-Terminal-Battery

17

21E5-1018

21E5-1018-Fusible Link

18

S015-080252

S015-080252-Bolt-Hex

19

S411-080002

S411-080002-Washer-Spring

2

21E4-3007

21E4-3007-Fuel Filler Pump Assy

20

21E5-0013

21E5-0013-Relay-Battery

21

21E5-1008

21E5-1008-Cable(Batt-Batt)

22

S205-081002

S205-081002-Nut-Hex

23

22M3-9100

22M3-9100-Elbow

24

E127-3158

E127-3158-Band-Fuel Pump

25

21E8-10600

21E8-10600-Cover-F/F Pump

3

S161-040152

S161-040152-Screw

5

21E4-4020

21E4-4020-Hose-Outlet

6

S520-017000

S520-017000-Clamp-Hose

7

E129-7002

E129-7002-Hose-Long Nipple

8

E127-5005

E127-5005-Hose-Inlet

9

E125-1501

E125-1501-Battery Assy
