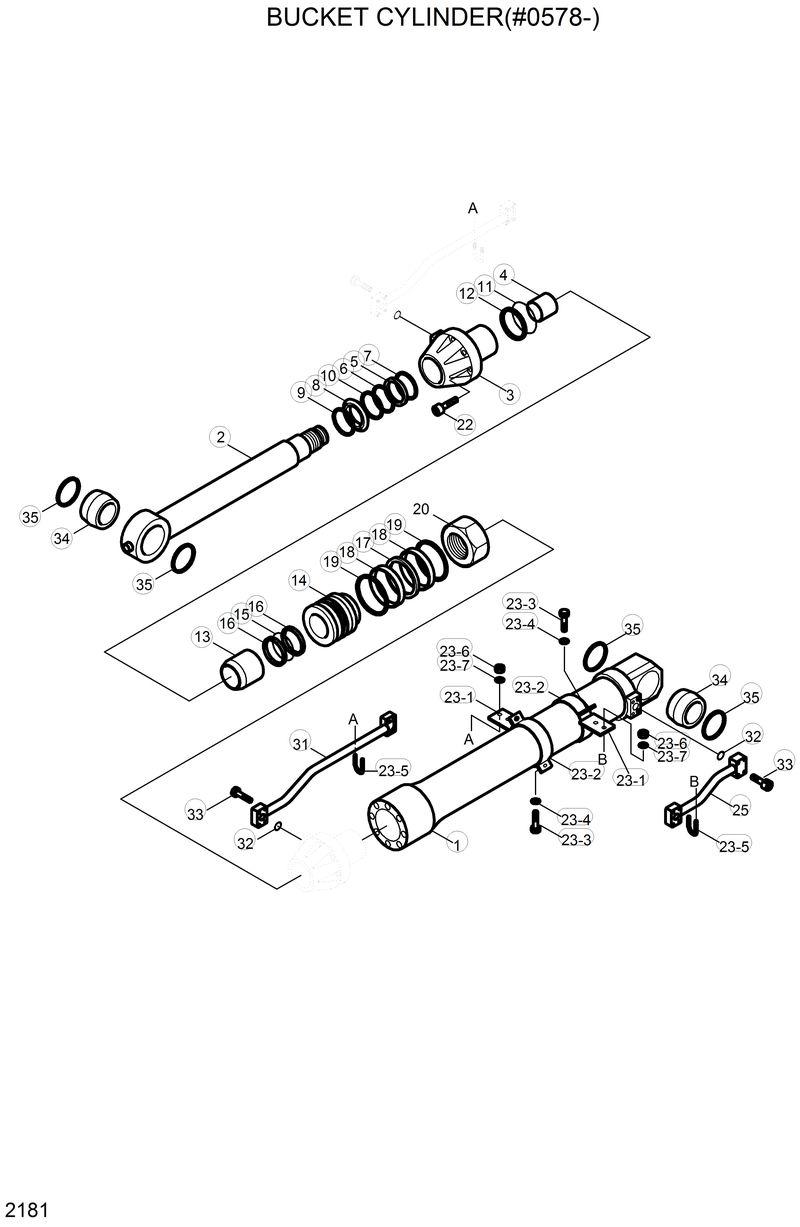

Запчасти Hyundai R320LC BUCKET CYLINDER(#0578-)

S641-130003

S641-130003-. Ring-Back Up

31Y1-08250

31Y1-08250-. Tube Assy

31Y1-08320

31Y1-08320-. Gland

S631-130004

S631-130004-. O-Ring

31E5-60110

31E5-60110-Bucket Cylinder

*

31E5-50240

31E5-50240-Bucket Cylinder

1

HC303-100-00

HC303-100-00-. Tube Assy

13

31YC-23040

31YC-23040-. Ring-Cushion

14

31Y1-08000

31Y1-08000-. Piston

2

31Y1-08290

31Y1-08290-. Rod Assy

20

31YC-61090

31YC-61090-. Nut-Lock

22

S109-220804

S109-220804-. Bolt-Socket

23

31Y1-08330

31Y1-08330-. Band Assy

23-1

31Y1-08340

31Y1-08340-.. Band Sub Assy

23-2

31YC-31210

31YC-31210-.. Band

23-3

S015-120452

S015-120452-.. Bolt-Hex

23-4

S411-120002

S411-120002-.. Washer-Spring

23-5

S071-023430

S071-023430-.. U-Bolt

23-6

S201-101002

S201-101002-.. Nut-Hex

23-7

S411-100002

S411-100002-.. Washer-Spring

3

HC302-300-20

HC302-300-20-. Gland

30

31Y1-08360

31Y1-08360-. Pipe Assy-B

31

31Y1-08350

31Y1-08350-. Pipe Assy-R

33

S107-100554

S107-100554-. Bolt-Socket

34

31YC-11180

31YC-11180-. Bushing-Pin

4

S731-100040

S731-100040-. Du-Dushing

K

31Y1-08371

31Y1-08371-. Seal Kit

K

31Y1-08370

31Y1-08370-. Seal Kit

K10

Y320-100000

Y320-100000-. Ring-Wear

K11

S631-135004

S631-135004-. O-Ring

K12

S641-135003

S641-135003-. Ring-Back Up

K15

S632-085004

S632-085004-. O-Ring

K16

S642-085003

S642-085003-. Ring-Back Up

K17

Y420-140000

Y420-140000-. Seal-Piston

K18

Y310-140100

Y310-140100-. Ring-Wear

K19

Y440-140000

Y440-140000-. Ring-Dust

K32

Y171-024004

Y171-024004-. O-Ring

K35

Y000-090000

Y000-090000-. Seal-Dust

K5

Y200-100011

Y200-100011-. Seal-Rod

K6

Y180-100020

Y180-100020-. Ring-Back Up

K7

Y240-100011

Y240-100011-. Ring-Buffer

K8

Y110-100011

Y110-100011-. Wiper-Dust

K9

Y190-114000

Y190-114000-. Ring-Snap
