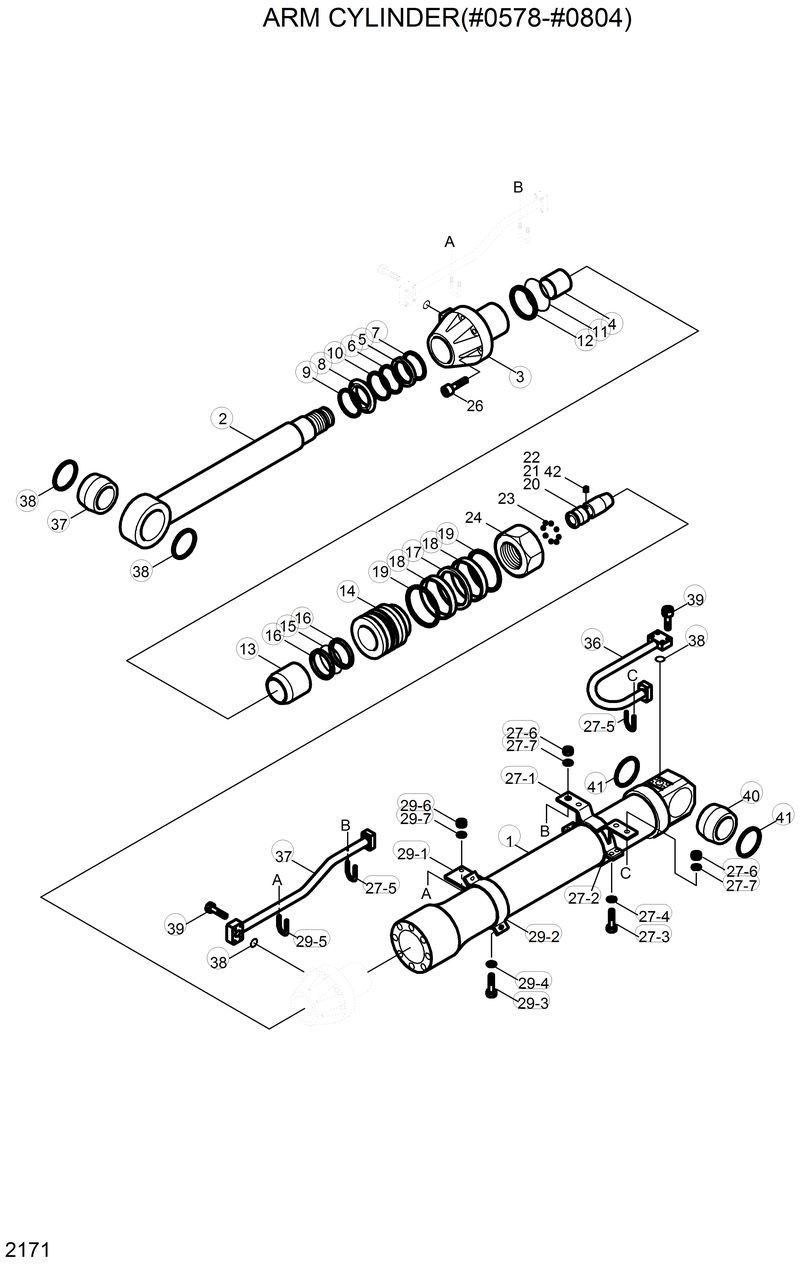

Запчасти Hyundai R320LC ARM CYLINDER(#0578-#0804)

*

31E5-50230

31E5-50230-Arm Cylinder

1

HC301-100-00

HC301-100-00-. Tube Assy

13

31YC-23050

31YC-23050-. Ring-Cushion

14

31Y1-08170

31Y1-08170-. Piston

2

31Y1-08130

31Y1-08130-. Rod Assy

20

31YC-27010

31YC-27010-. Spear-Cushion

21

31YC-2A020

31YC-2A020-. Valve-Check

22

31YC-99070

31YC-99070-. Spring-Coil

23

Y890-015011

Y890-015011-. Ball-Steel

24

31YC-61110

31YC-61110-. Nut-Lock

26

S109-240904

S109-240904-. Bolt-Socket

27

31Y1-08200

31Y1-08200-. Band Assy-B

27-1

31Y1-08210

31Y1-08210-.. Band Sub Assy-B

27-2

31YC-32120

31YC-32120-.. Band

29

31Y1-08180

31Y1-08180-. Band Assy-R

29-1

31Y1-08190

31Y1-08190-.. Band Sub Assy-R

29-2

31YC-31240

31YC-31240-.. Band

29-3

S015-120452

S015-120452-.. Bolt-Hex

29-3

S015-120452

S015-120452-.. Bolt-Hex

29-4

S411-120002

S411-120002-.. Washer-Spring

29-4

S411-120002

S411-120002-.. Washer-Spring

29-5

S071-023430

S071-023430-.. U-Bolt

29-5

S071-023430

S071-023430-.. U-Bolt

29-6

S201-101002

S201-101002-.. Nut-Hex

29-6

S201-101002

S201-101002-.. Nut-Hex

29-7

S411-100002

S411-100002-.. Washer-Spring

29-7

S411-100002

S411-100002-.. Washer-Spring

36

31Y1-08230

31Y1-08230-. Pipe Assy-B

37

31Y1-08220

31Y1-08220-. Pipe Assy-R

39

S107-100554

S107-100554-. Bolt-Socket

4

S732-110045

S732-110045-. Bushing

40

31YC-11190

31YC-11190-. Bushing-Pin

42

S113-080124

S113-080124-. Screw-Soc Hd Set

9

Y190-126000

Y190-126000-. Ring-Snap

K

31Y1-08240

31Y1-08240-Seal Kit(5Ў­8,10Ў­12,15Ў­

K10

Y320-110000

Y320-110000-. Ring-Wear

K11

S632-155004

S632-155004-. O-Ring

K12

S642-155003

S642-155003-. Ring-Back Up

K15

S632-095004

S632-095004-. O-Ring

K16

S642-095003

S642-095003-. Ring-Back Up

K17

Y420-160000

Y420-160000-. Seal-Piston

K18

Y310-160300

Y310-160300-. Ring-Wear

K19

Y440-160000

Y440-160000-. Ring-Dust

K38

Y171-024004

Y171-024004-. O-Ring

K41

Y000-100100

Y000-100100-. Seal-Dust

K5

Y200-110011

Y200-110011-. Seal-Rod

K6

Y180-110020

Y180-110020-. Ring-Back Up

K7

Y240-110011

Y240-110011-. Ring-Buffer

K8

Y110-110011

Y110-110011-. Wiper-Dust

N3

HC301-300-00

HC301-300-00-. Gland
