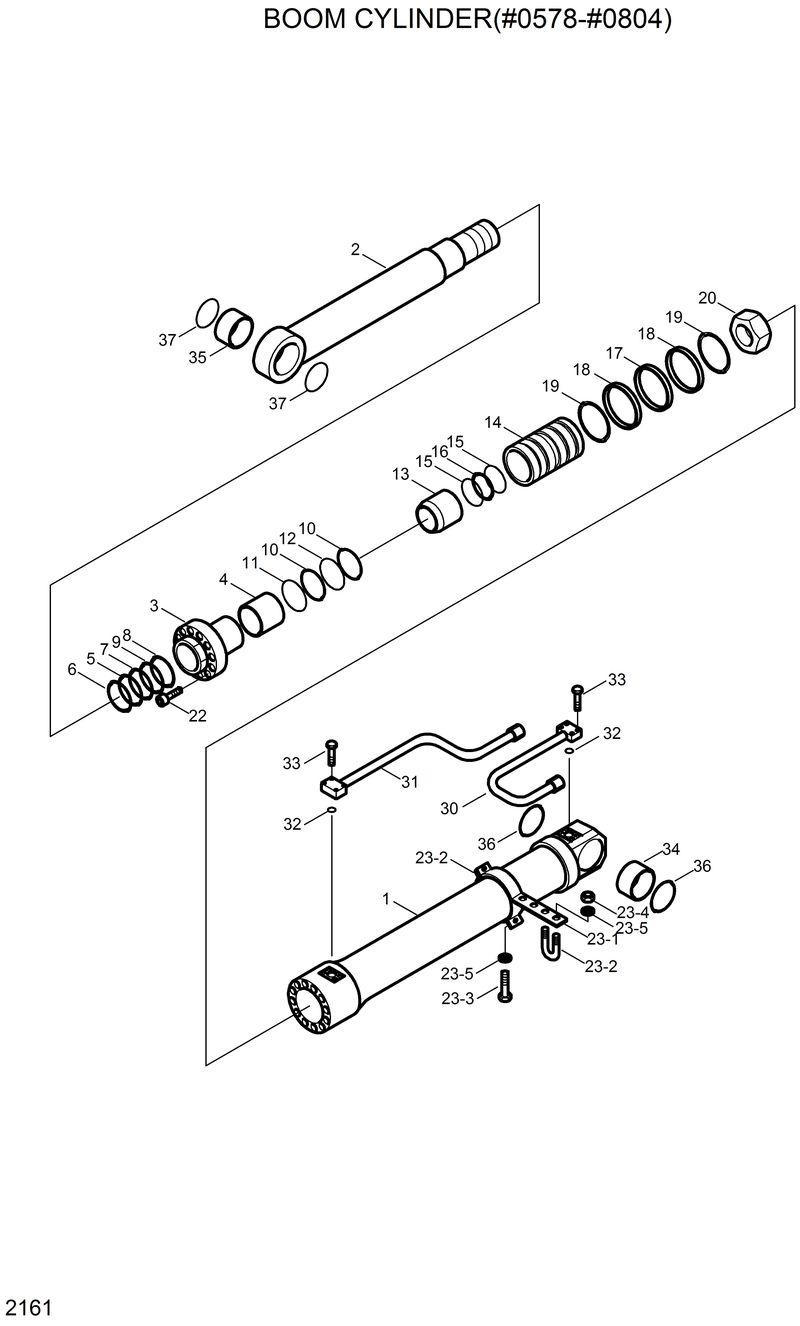

Запчасти Hyundai R320LC BOOM CYLINDER(#0578-#0804)

31E5-50220

31E5-50220-Boom Cylinder-Rh

31Y1-08040

31Y1-08040-. Pipe Assy-R(Rh)

31Y1-08060

31Y1-08060-. Pipe Assy-B(Rh)

*

31E5-50210

31E5-50210-Boom Cylinder-Lh

1

HC302-100-00

HC302-100-00-. Tube Assy

13

31YC-23040

31YC-23040-. Ring-Cushion

14

31Y1-08000

31Y1-08000-. Piston

2

31Y1-07960

31Y1-07960-. Rod Assy

20

31YC-61090

31YC-61090-. Nut-Lock

22

S109-220804

S109-220804-. Bolt-Socket

23

31Y1-08010

31Y1-08010-. Band Assy

23-1

31Y1-08020

31Y1-08020-.. Band Sub Assy

23-2

31YC-32090

31YC-32090-.. Band

23-3

S015-120452

S015-120452-.. Bolt-Hex

23-4

S411-120002

S411-120002-.. Washer-Spring

23-5

S071-023430

S071-023430-.. U-Bolt

23-6

S201-101002

S201-101002-.. Nut-Hex

23-7

S411-100002

S411-100002-.. Washer-Spring

3

HC302-300-10

HC302-300-10-. Gland

30

31Y1-08050

31Y1-08050-. Pipe Assy-B(Lh)

31

31Y1-08030

31Y1-08030-. Pipe Assy-R(Lh)

33

S107-100554

S107-100554-. Bolt-Socket

34

31YC-11180

31YC-11180-. Bushing-Pin

35

31YC-11190

31YC-11190-. Bushing-Pin

4

S731-100040

S731-100040-. Du-Dushing

9

Y190-114000

Y190-114000-. Ring-Snap

K

31Y1-08070

31Y1-08070-Seal Kit(5Ў­8,10Ў­12,15Ў­

K10

Y320-100000

Y320-100000-. Ring-Wear

K11

S631-135004

S631-135004-. O-Ring

K12

S641-135003

S641-135003-. Ring-Back Up

K15

S632-085004

S632-085004-. O-Ring

K16

S642-085003

S642-085003-. Ring-Back Up

K17

Y420-140000

Y420-140000-. Seal-Piston

K18

Y310-140100

Y310-140100-. Ring-Wear

K19

Y440-140000

Y440-140000-. Ring-Dust

K32

Y171-024004

Y171-024004-. O-Ring

K36

Y000-090000

Y000-090000-. Seal-Dust

K37

Y000-100100

Y000-100100-. Seal-Dust

K5

Y200-100011

Y200-100011-. Seal-Rod

K6

Y180-100020

Y180-100020-. Ring-Back Up

K7

Y240-100011

Y240-100011-. Ring-Buffer

K8

Y110-100011

Y110-100011-. Wiper-Dust
