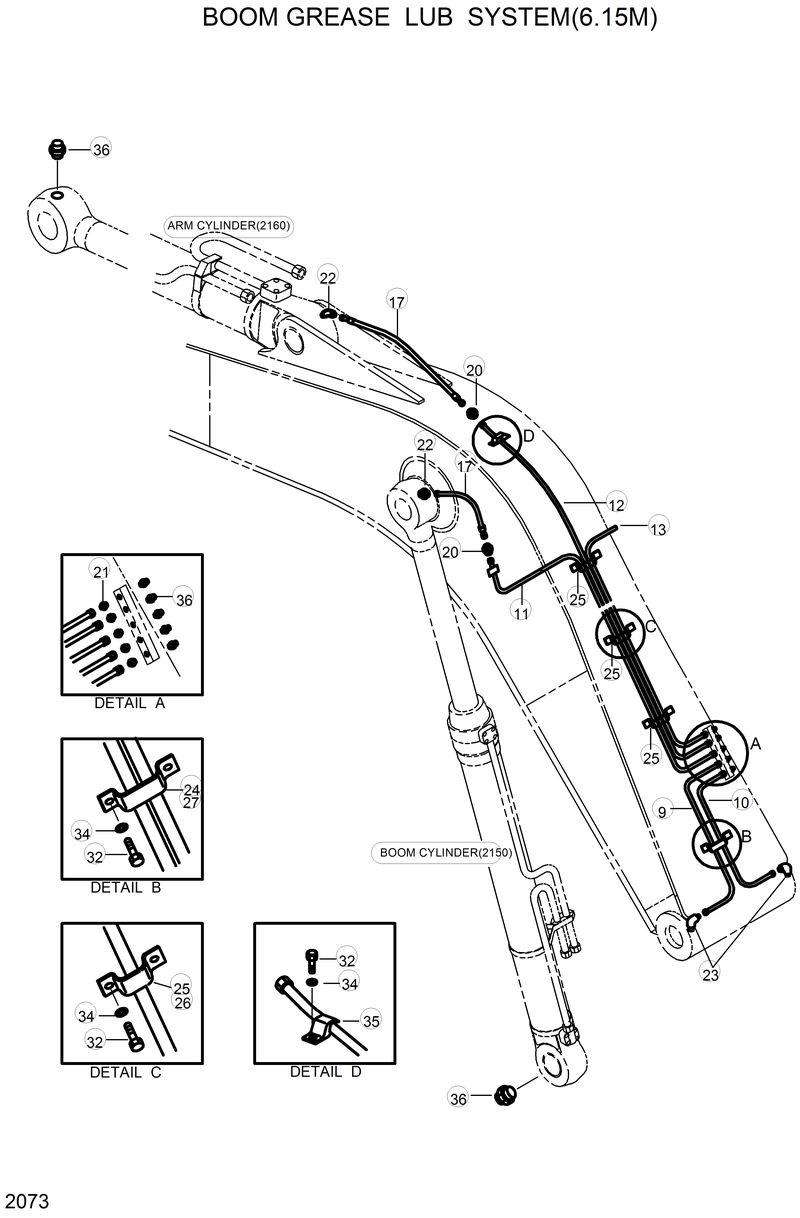

Запчасти Hyundai R320LC BOOM GREASE LUB SYSTEM(6.15M)

10

31E5-50070

31E5-50070-Pipe Assy

11

31E5-50080

31E5-50080-Pipe Assy

12

31E5-50090

31E5-50090-Pipe Assy

13

31E5-50100

31E5-50100-Pipe Assy

17

P600-042016

P600-042016-Hose Assy

20

P010-430011

P010-430011-Connector

21

E131-0625

E131-0625-Connector

22

E131-0626

E131-0626-Connector

23

E231-0349

E231-0349-Elbow-90

24

31E9-0078

31E9-0078-Clamp-Pipe

25

31E9-0125

31E9-0125-Clamp-Pipe

26

31E6-0211

31E6-0211-Pad-Rubber

27

31E6-0212

31E6-0212-Pad-Rubber

32

S015-060152

S015-060152-Bolt-Hex

34

S411-060002

S411-060002-Washer-Spring

35

S541-080002

S541-080002-Clamp-Tube

36

S651-810002

S651-810002-Nipple-Grease

9

31E5-50060

31E5-50060-Pipe Assy
