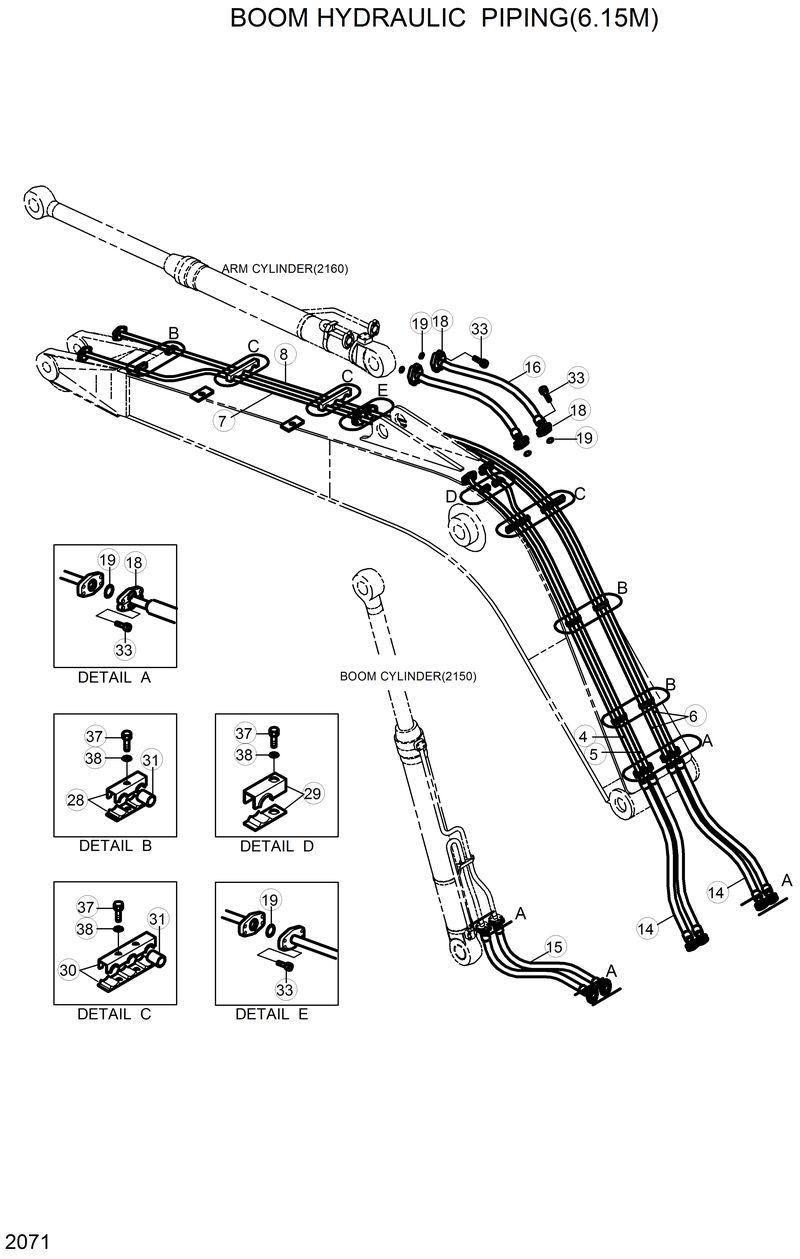

Запчасти Hyundai R320LC BOOM HYD PIPING(6.15M)

32E9-00860

32E9-00860-Clamp-Pipe

32E9-00870

32E9-00870-Clamp-Pipe

31E9-53220

31E9-53220-Spacer-Pipe

32E9-00880

32E9-00880-Clamp-Pipe

P681-167319

P681-167319-Hose Assy-Flg

14

P681-167328

P681-167328-Hose Assy-Flg

15

31E5-20260

31E5-20260-Hose Assy

16

P680-167322

P680-167322-Hose Assy-Flg,0x0

18

P173-160104

P173-160104-Flange-Split

19

CO0423A

CO0423A-O-Ring

28

31E4-00790

31E4-00790-Clamp-Pipe

29

31EK-00790

31EK-00790-Clamp-Pipe

30

31E5-50310

31E5-50310-Clamp-Pipe

31

31E4-00830

31E4-00830-Connector

33

S107-100354

S107-100354-Bolt-Socket

37

S017-160752

S017-160752-Bolt-Hex

38

S411-160002

S411-160002-Washer-Spring

4

31E5-50010

31E5-50010-Pipe

5

31E5-50020

31E5-50020-Pipe

6

31E5-50030

31E5-50030-Pipe

7

31E5-50040

31E5-50040-Pipe

8

31E5-50050

31E5-50050-Pipe
