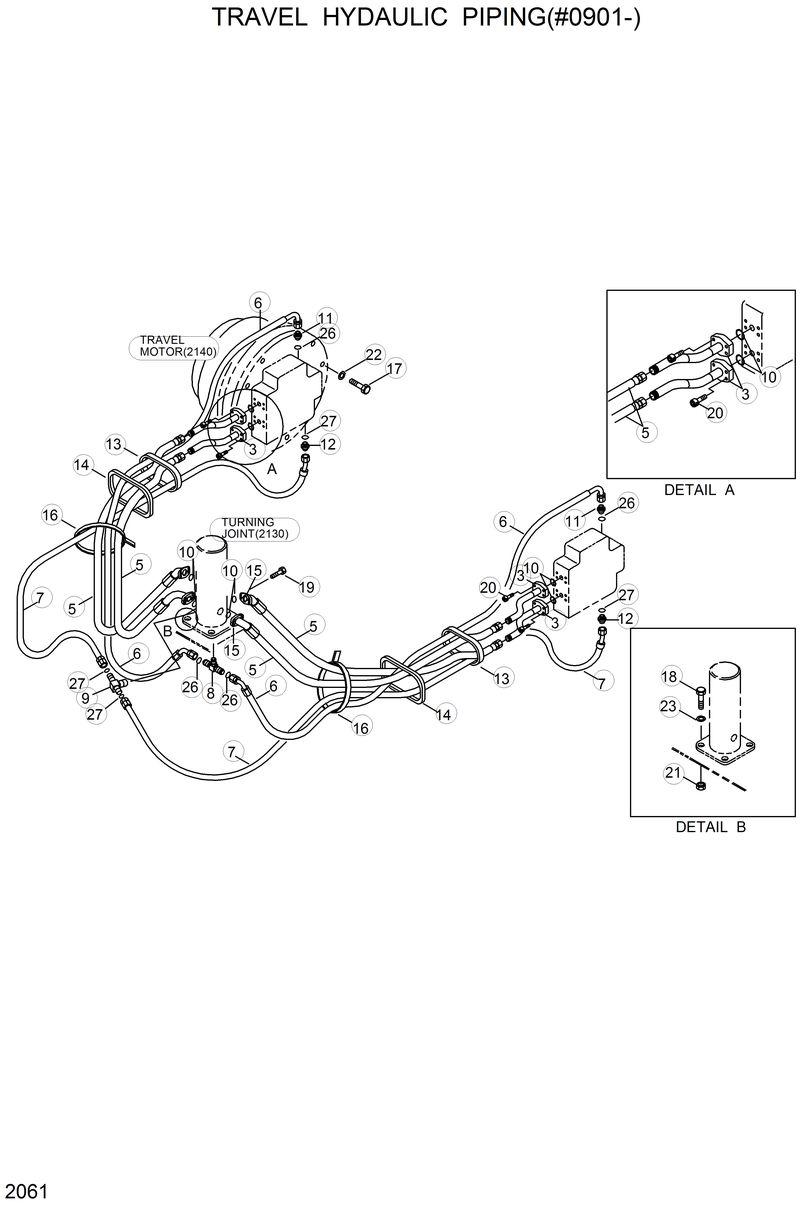

Запчасти Hyundai R320LC TRAVEL HYDRAULIC PIPING(#0901-)

10

CO0423A

CO0423A-O-Ring

11

P010-110004

P010-110004-Connector

12

P010-110009

P010-110009-Connector

13

S760-151238

S760-151238-Grommet

14

S760-112200

S760-112200-Grommet

15

P173-160104

P173-160104-Flange-Split

16

S551-050203

S551-050203-Clamp-Band

17

S017-200802

S017-200802-Bolt-Hex

18

S017-160502

S017-160502-Bolt-Hex

19

S107-100302

S107-100302-Bolt-Socket

20

S107-120352

S107-120352-Bolt-Socket

21

S207-161002

S207-161002-Nut-Hex

22

S411-200002

S411-200002-Washer-Spring

23

S411-160002

S411-160002-Washer-Spring

24

S411-120002

S411-120002-Washer-Spring

25

S411-100002

S411-100002-Washer-Spring

26

S631-011001

S631-011001-O-Ring

27

S631-018001

S631-018001-O-Ring

3

32E9-00800

32E9-00800-Flange Wa

4

31E9-0081

31E9-0081-Block

5

P660-167344

P660-167344-Hose Assy

6

P620-083050

P620-083050-Hose Assy

7

P610-042061

P610-042061-Hose Assy

8

P310-080808

P310-080808-Tee

9

P310-040404

P310-040404-Tee
