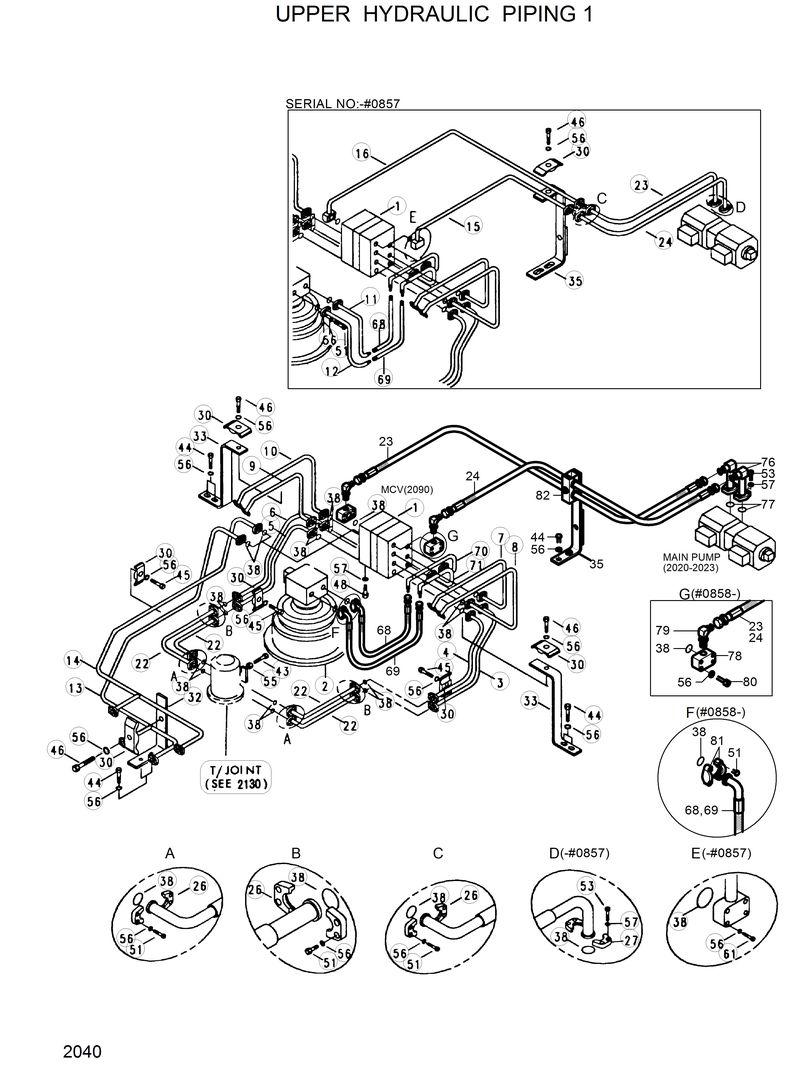

Запчасти Hyundai R320LC UPPER HYDRAULIC PIPING 1
№
Артикул
Название
Примечание
Количество
S017-100802
S017-100802-Bolt-Hex
31E5-10760
31E5-10760-Hose Assy
P660-167431
P660-167431-Hose Assy-Thd 90 Flg
E131-0121
E131-0121-Clamp-Pipe
P660-126317
P660-126317-Hose Assy-Thd 90 Flg
E131-0121
E131-0121-Clamp-Pipe
31E5-10750
31E5-10750-Hose Assy
31E5-30442
31E5-30442-Bracket
S017-100802
S017-100802-Bolt-Hex
1
31E5-0001
31E5-0001-Main Control Valve
10
31E5-1008
31E5-1008-Pipe Assy
11
31E5-1072
31E5-1072-Pipe
12
31E5-1070
31E5-1070-Pipe
13
31E5-1011
31E5-1011-Pipe Assy
14
31E5-1012
31E5-1012-Pipe Assy
15
31E5-1053
31E5-1053-Pipe
16
31E5-1054
31E5-1054-Pipe
2
31E5-0002
31E5-0002-Swing Motor
22
31E5-2004
31E5-2004-Hose Assy
23
31E5-2011
31E5-2011-Hose Assy
24
31E9-0090
31E9-0090-Hose Assy
27
P174-160104
P174-160104-Flange-Split
3
31E5-1049
31E5-1049-Pipe
32
31E5-3002
31E5-3002-Bracket-Boom
33
31E5-3003
31E5-3003-Bracket
35
31E5-3044
31E5-3044-Bracket
38
CO0423A
CO0423A-O-Ring
4
31E5-1050
31E5-1050-Pipe
43
S017-200902
S017-200902-Bolt-Hex
44
S017-100202
S017-100202-Bolt-Hex
48
S017-120302
S017-120302-Bolt-Hex
5
31E5-1051
31E5-1051-Pipe
50
S017-200852
S017-200852-Bolt-Hex
55
S207-201002
S207-201002-Nut-Hex
56
S411-100002
S411-100002-Washer-Spring
6
31E5-1052
31E5-1052-Pipe
61
S107-100553
S107-100553-Bolt-Socket
64
E231-0146
E231-0146-Hose-Rubber
68
31E4-2069
31E4-2069-Hose
69
31E4-2068
31E4-2068-Hose
7
31E5-1005
31E5-1005-Pipe Assy
70
31E5-1069
31E5-1069-Pipe
71
31E5-1071
31E5-1071-Pipe
76
31E5-1110
31E5-1110-Adaptor
77
S631-011001
S631-011001-O-Ring
78
31E5-10730
31E5-10730-Block
79
P020-110005
P020-110005-Elbow-90
8
31E5-1006
31E5-1006-Pipe Assy
80
S017-100652
S017-100652-Bolt-Hex
80
S017-100652
S017-100652-Bolt-Hex
82
31E5-10740
31E5-10740-Clamp Assy
9
31E5-1007
31E5-1007-Pipe Assy
Выбрано товаров: 57
