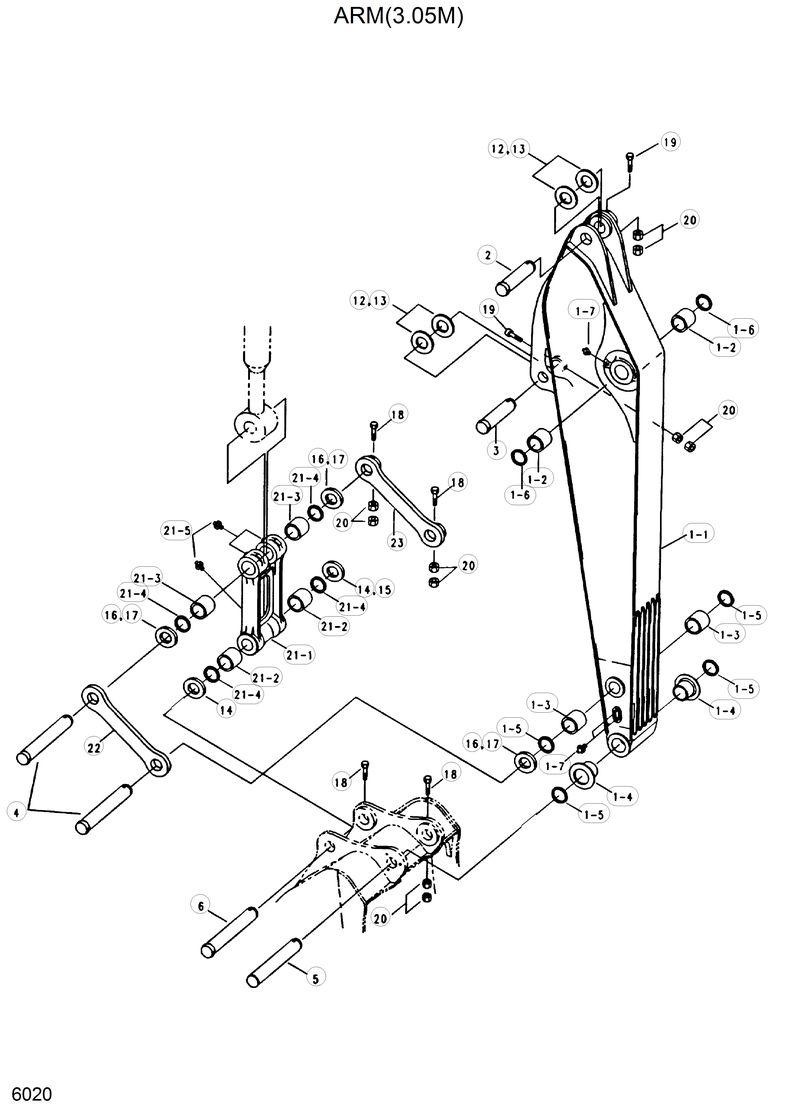

Запчасти Hyundai R290LC ARM(3.05M)

1

61E9-0020

61E9-0020-Arm Assy

1-2

61E9-1122

61E9-1122-. Bushing

1-3

E262-2062

E262-2062-. Bushing

1-4

61E9-1125

61E9-1125-. Bushing

1-5

S700-080306

S700-080306-. Dust Seal-Dkiy Type

1-6

S700-100308

S700-100308-. Dust Seal-Dkiy Type

12

S391-090165

S391-090165-Shim-Round(1.0t)

13

S392-090165

S392-090165-Shim-Round(2.Ot)

14

S391-080145

S391-080145-Shim-Round(1.0t)

15

S392-080145

S392-080145-Shim Round(2.0t)

16

S391-080160

S391-080160-Shim-Round(1.0t)

17

S392-080160

S392-080160-Shim Round(2.0t)

18

S017-161402

S017-161402-Bolt-Hex

19

S017-161502

S017-161502-Bolt-Hex

2

61E9-1105

61E9-1105-Pin Assy

20

S205-161002

S205-161002-Nut-Hex

21

61E9-2100

61E9-2100-Control Rod Assy

21-1

61E9-2101

61E9-2101-. Control Rod

21-2

E262-2101

E262-2101-. Rod-Control

21-3

61E9-1124

61E9-1124-. Bushing

21-4

61E3-2146

61E3-2146-. Seal-Dust

21-5

S651-810002

S651-810002-. Nipple-Grease

21-5

S651-810002

S651-810002-. Nipple-Grease

22

61E9-2110

61E9-2110-Control Link-Lh

23

61E9-2111

61E9-2111-Control Link-Rh

3

61E9-1107

61E9-1107-Pin Assy

4

61E9-1108

61E9-1108-Pin Assy

5

61E9-1110

61E9-1110-Pin Assy

6

61E9-1111

61E9-1111-Pin Assy

N1-1

61E9-2001

61E9-2001-. Arm Wa
