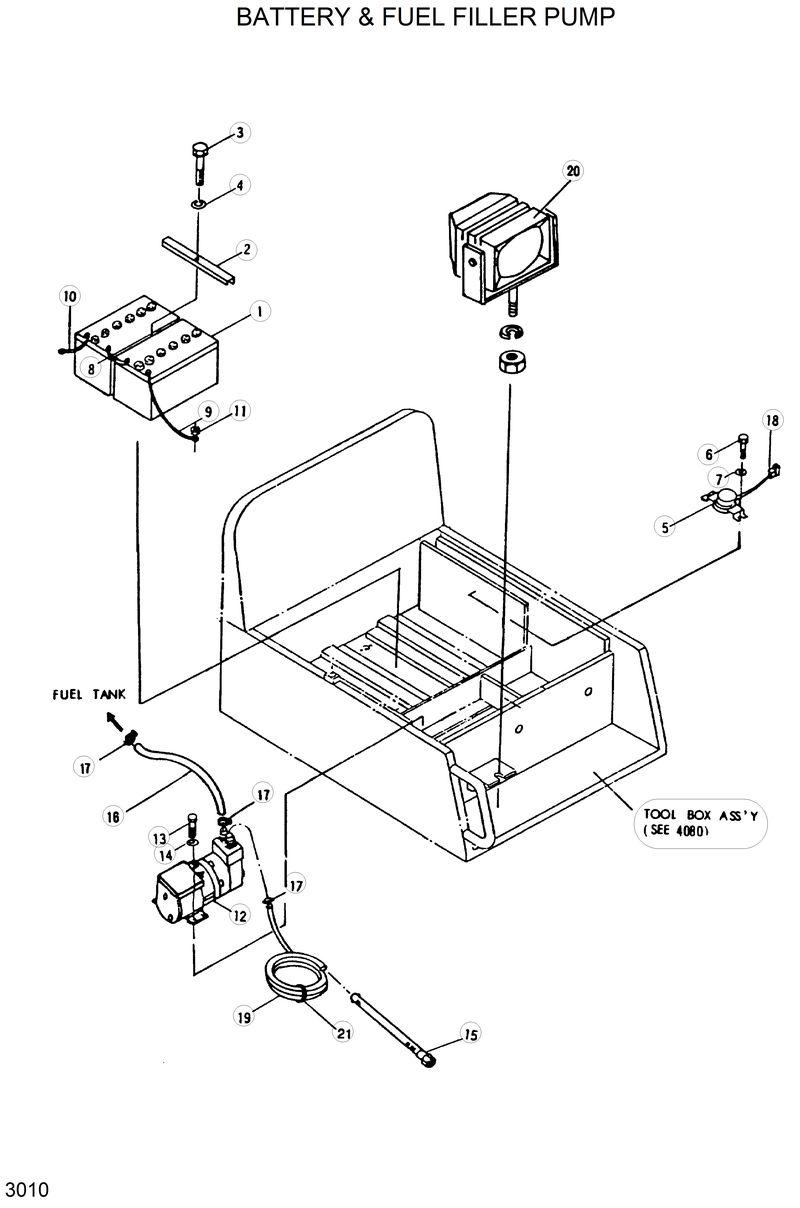

Запчасти Hyundai R290LC BATTERY & FUEL FILLER PUMP

E127-3158

E127-3158-Band-Fuel Pump

E127-3158

E127-3158-Band-Fuel Pump

24E7-30070

24E7-30070-Fuel Filler Pump Assy

21E5-0003-AS

21E5-0003-AS-Relay-Battery

1

E125-1501

E125-1501-Battery Assy

10

E221-0503

E221-0503-Cable(Battery-Battery)

11

S205-081002

S205-081002-Nut-Hex

12

21E4-3007

21E4-3007-Fuel Filler Pump Assy

13

S161-040002

S161-040002-Screw

14

S411-050002

S411-050002-Washer-Spring

15

21E5-3009

21E5-3009-Pipe-Pump Outlet

16

E127-5006

E127-5006-Hose-Fuel Filler

17

S520-017000

S520-017000-Clamp-Hose

18

21E3-1019

21E3-1019-Fusible Link

19

E127-5005

E127-5005-Hose-Inlet

2

E125-1502

E125-1502-Bracket-Battery

20

21E7-2014

21E7-2014-Work Light Assy

20

21E1-2055

21E1-2055-Head Light Assy

20-1

21E1-49610

21E1-49610-. Bulb

20-1

21E1-49590

21E1-49590-. Bulb-Side Marker

3

S017-102652

S017-102652-Bolt-Hex

4

S411-100002

S411-100002-Washer-Spring

5

21E5-0003

21E5-0003-Relay-Battery

6

S015-080252

S015-080252-Bolt-Hex

7

S411-080002

S411-080002-Washer-Spring

8

E221-1504

E221-1504-Cable(Batt-Batt Box)

9

E221-1502

E221-1502-Cable(Batt-Relay)
