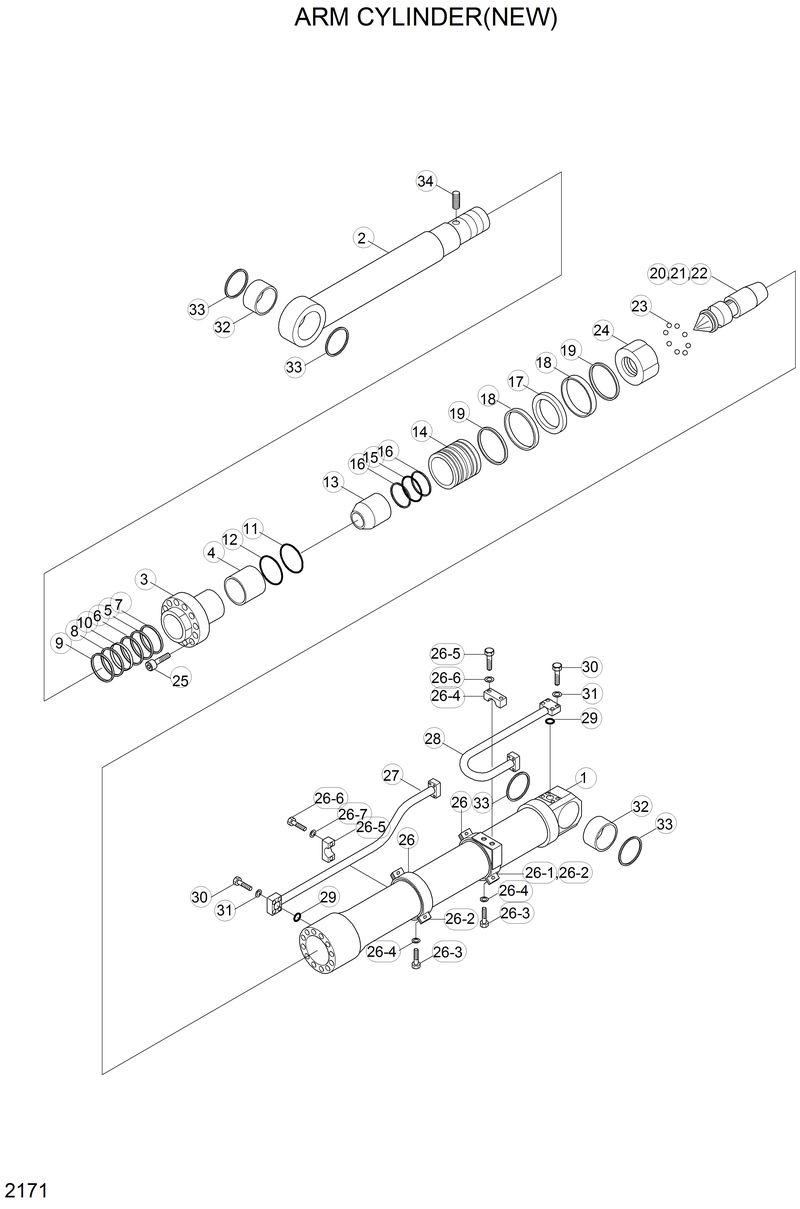

Запчасти Hyundai R290LC ARM CYLINDER(NEW)

*

31E9-50230

31E9-50230-Arm Cylinder

1

HC159-100-00

HC159-100-00-. Tube Assy

13

HC016-541-09

HC016-541-09-. Ring-Cushion

14

31Y1-07700

31Y1-07700-. Piston

2

31Y1-07660

31Y1-07660-. Rod Assy

20

31YC-29090

31YC-29090-. Spear-Cushion

21

21YC-2A010

21YC-2A010-. Valve-Check

22

31YC-99070

31YC-99070-. Spring-Coil

23

Y890-015011

Y890-015011-. Ball-Steel

24

31YC-61100

31YC-61100-. Nut-Lock

25

S109-240704

S109-240704-. Bolt-Socket

26

31Y1-07710

31Y1-07710-. Band Assy

26-1

31Y1-07720

31Y1-07720-.. Band Sub Assy

26-2

31YC-31200

31YC-31200-.. Band

26-3

S011-100352

S011-100352-.. Bolt-Hex

26-4

S411-100002

S411-100002-.. Washer-Spring

26-5

31YC-37040

31YC-37040-.. Clamp-Pipe

26-6

S015-120402

S015-120402-.. Bolt-Hex

26-7

S411-120002

S411-120002-.. Washer-Spring

27

HC159-10A-00

HC159-10A-00-. Pipe Assy

28

31Y1-07740

31Y1-07740-. Pipe Assy

3

HC159-300-00

HC159-300-00-. Gland

30

S017-120702

S017-120702-. Bolt-Hex

31

S411-120002

S411-120002-. Washer-Spring

32

31YC-11160

31YC-11160-. Bushing-Pin

4

S731-105050

S731-105050-. Bushing

9

Y190-121000

Y190-121000-. Ring-Snap

K

31Y1-07750

31Y1-07750-. Seal Kit(5-8,10-12

K10

Y320-105000

Y320-105000-. Ring-Wear

K11

S631-145004

S631-145004-. O-Ring

K12

S641-145003

S641-145003-. Ring-Back Up

K15

S632-095004

S632-095004-. O-Ring

K16

S642-095003

S642-095003-. Ring-Back Up

K17

Y420-150000

Y420-150000-. Seal-Piston

K18

Y310-150000

Y310-150000-. Ring-Wear

K19

Y440-150100

Y440-150100-. Ring-Dust

K29

S631-034004

S631-034004-. O-Ring

K33

Y000-090000

Y000-090000-. Seal-Dust

K5

Y200-105011

Y200-105011-. Seal-Rod

K6

Y180-105120

Y180-105120-. Ring-Back Up

K7

Y240-105011

Y240-105011-. Ring-Buffer

K8

Y110-105011

Y110-105011-. Wiper-Dust
