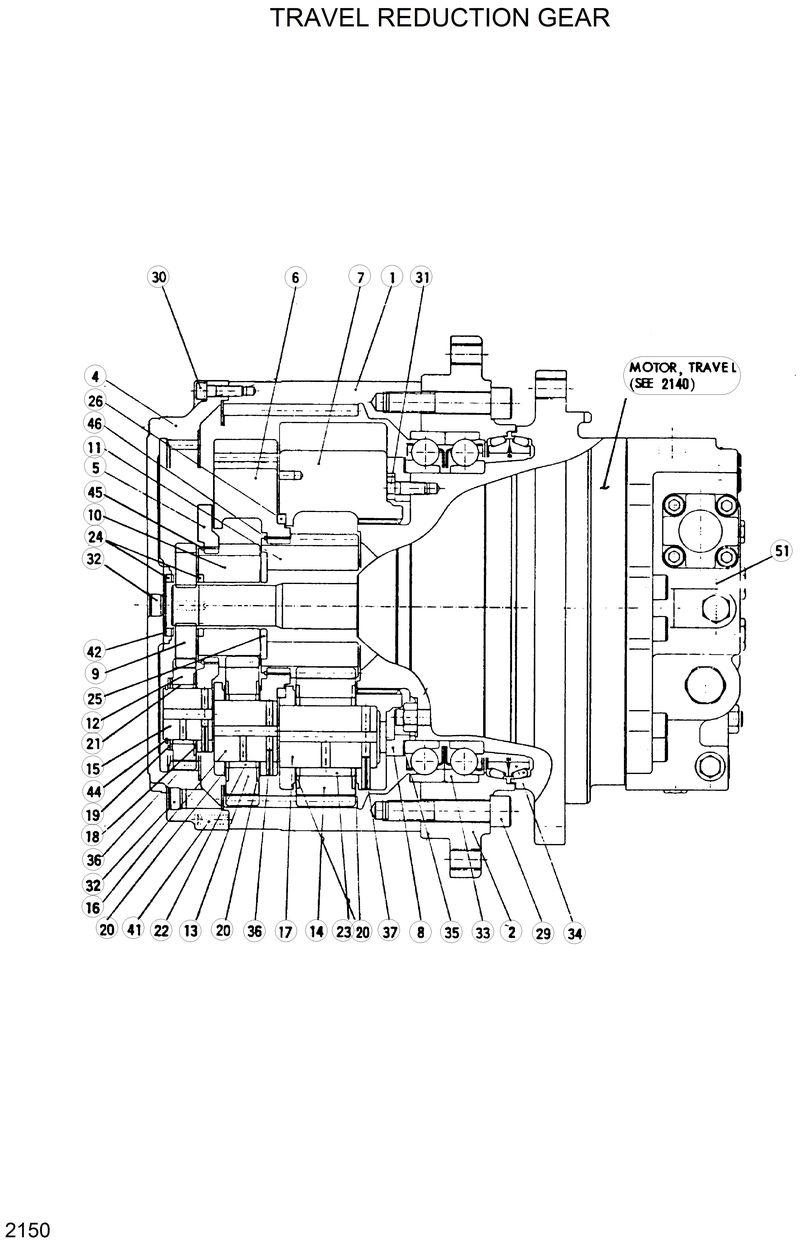

Запчасти Hyundai R290LC TRAVEL REDUCTION GEAR

*-2

3550BX067

3550BX067-. T/Reduction Gear

1

35050BAA-001

35050BAA-001-.. Ring Gear

10

35050BAA-010

35050BAA-010-.. Gear-Sun No2

11

35050BAA-011

35050BAA-011-.. Gear-Sun No3

12

35050BAA-012

35050BAA-012-.. Gear-Planetary No1

13

35050BAA-013

35050BAA-013-.. Gear-Planetary No2

14

35050-00-014

35050-00-014-.. Gear-Planetary No3

15

35050BAA-015

35050BAA-015-.. Pin No1

16

35050BAA-016

35050BAA-016-.. Pin No2

17

35050-00-017

35050-00-017-.. Pin No3

18

35050BAA-018

35050BAA-018-.. Plate-Side

19

35050BAA-019

35050BAA-019-.. Plate-Side

2

35050BAA-002

35050BAA-002-.. Housing(16 Hole)

20

35050BAA-020

35050BAA-020-.. Plate-Side

21

PKT505825E4

PKT505825E4-.. Gauge-Needle

22

PKT597132

PKT597132-.. Gauge-Needle

23

PBN506006

PBN506006-.. Gauge-Needle

24

35050BAA-024

35050BAA-024-.. Ring-Thrust

25

63050-AA-285

63050-AA-285-.. Ring-Thrust

26

63050-AA-289

63050-AA-289-.. Ring-Thrust

29

OSBM20100

OSBM20100-.. Screw-Hex

30

OSBM1035

OSBM1035-.. Screw-Hex

31

OBM1230M

OBM1230M-.. Screw

32

OBP12

OBP12-.. Plug

33

35050BAA-033

35050BAA-033-.. Bearing-Angular

34

P297

P297-.. Seal-Floating

35

35050-00-035

35050-00-035-.. Shim

36

OSPV625

OSPV625-.. Pin-Spring

37

OSPV832

OSPV832-.. Pin-Spring

4

35050BAA-004

35050BAA-004-.. Cover-Side

41

OSSM1030

OSSM1030-.. Screw-Set

42

35050BAA-042

35050BAA-042-.. Shim

44

OSR50

OSR50-.. Ring-Snap

45

PWR110

PWR110-.. Clip

46

PWR130

PWR130-.. Clip

5

35050BAA-005

35050BAA-005-.. Carrier No1

51

PNPA-2550A

PNPA-2550A-.. Plate-Name

6

35050BAA-006

35050BAA-006-.. Carrier No2

7

35050BAA-007

35050BAA-007-.. Carrier

8

35050BAA-008

35050BAA-008-.. Retainer-Bearing

9

35050BAA-009

35050BAA-009-.. Gear-Sun No1
