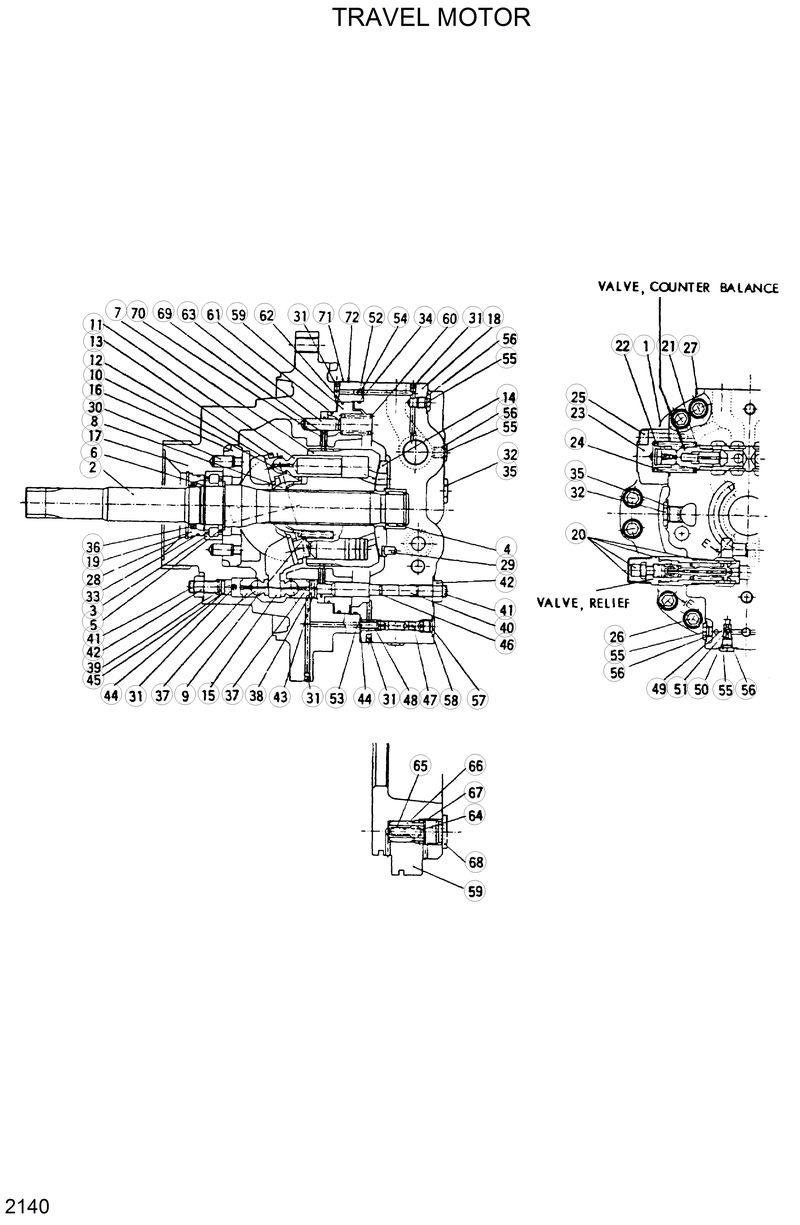

Запчасти Hyundai R290LC TRAVEL MOTOR

*

31E5-0003

31E5-0003-Track Motor

*-1

33522-AB-325

33522-AB-325-. Travel Motor Unit

1

VZ240103067

VZ240103067-.. Spool

10

2953801841

2953801841-.. Spacer

13

2943800488

2943800488-.. Plate-Set

15

3330800109

3330800109-.. Plate-Swash

16

3330800110

3330800110-.. Support

18

3320800050

3320800050-.. Casing-Valve

19

3340800109

3340800109-.. Cover-Seal

2

3330800106

3330800106-.. Shaft-Drive

20

V8807044983

V8807044983-.. Valve-Relief

21

5A250010-3310

5A250010-3310-.. Washer

22

3350800152

3350800152-.. Spring-C/Balance

23

3350800150

3350800150-.. Cover-C/Balance

24

OORBG45

OORBG45-.. O-Ring

25

OSBM1245

OSBM1245-.. Bolt-Socket

26

OSBM1650

OSBM1650-.. Bolt-Socket

27

OSBM16120

OSBM16120-.. Bolt-Socket

28

ORR85

ORR85-.. Ring-Snap

29

PJR1014

PJR1014-.. Pin-2

3

PNUP2210

PNUP2210-.. Bearing-Roller

30

PJR1524

PJR1524-.. Pin-1

31

PBP116-2403

PBP116-2403-.. Plug

32

OVP12

OVP12-.. Plug

33

OORBG75

OORBG75-.. O-Ring

34

PCPP275

PCPP275-.. O-Ring

35

OORBP18

OORBP18-.. O-Ring

36

PTCV48V

PTCV48V-.. Seal-Oil

37

3340800118

3340800118-.. Piston-Tilting

38

3350800146

3350800146-.. Stopper

39

3350800160

3350800160-.. Stopper-S

4

PNK385227

PNK385227-.. Bearing-Needle

40

3350800148

3350800148-.. Rod-Tilting

41

PSSSM1640

PSSSM1640-.. Screw

42

ONM16C

ONM16C-.. Nut

43

OORBP21

OORBP21-.. O-Ring

44

OORBP16

OORBP16-.. O-Ring

45

OT2BP16

OT2BP16-.. Ring-Back Up

46

OORBP10A

OORBP10A-.. O-Ring

47

3350800149

3350800149-.. Spool-Tilting

48

3350800154

3350800154-.. Spring-Tilting

49

2953801680

2953801680-.. Seat

5

371A00AA-106

371A00AA-106-.. Spacer-Bearing

50

3350800155

3350800155-.. Stopper

51

ODW732

ODW732-.. Ball-Steel

52

OTRS116A15

OTRS116A15-.. Orifice

53

OTRS116A10

OTRS116A10-.. Orifice

54

OORBP10

OORBP10-.. O-Ring

55

OVP14

OVP14-.. Plug

56

OORBP11

OORBP11-.. O-Ring

57

37DAOOAA-668

37DAOOAA-668-.. Plug

58

OORBP14

OORBP14-.. O-Ring

59

3330800107

3330800107-.. Piston-Brake

6

OSR50

OSR50-.. Ring-Snap

60

3350800153

3350800153-.. Spring-Brake

61

3350800174

3350800174-.. Ring 252-Piston

62

3350800151

3350800151-.. Ring 278-Piston

63

PJR1540

PJR1540-.. Pin-Center

64

34750-00-367

34750-00-367-.. Guide-Spring

65

37KBOOAD-368

37KBOOAD-368-.. Spool

66

34750-00-369

34750-00-369-.. Bushing

67

34750-00-370

34750-00-370-.. Spring

68

OR038

OR038-.. Plug

69

3350800147

3350800147-.. Plate-Separator

70

3340800110

3340800110-.. Plate-Friction

71

PNPA-255OA

PNPA-255OA-.. Plate-Name

72

OSK2548

OSK2548-.. Pin

72

OSK2548

OSK2548-.. Pin

8

2953801840

2953801840-.. Bushing-Spherical

9

2953801842

2953801842-.. Spring-Cylinder

N11

371AOOAA-121

371AOOAA-121-.. Piston

N12

371AOOAA-122

371AOOAA-122-.. Shoe

N14

3330800114

3330800114-.. Plate-Valve

N17

3320800049

3320800049-.. Casing

N7

3330800108

3330800108-.. Block-Cylinder
