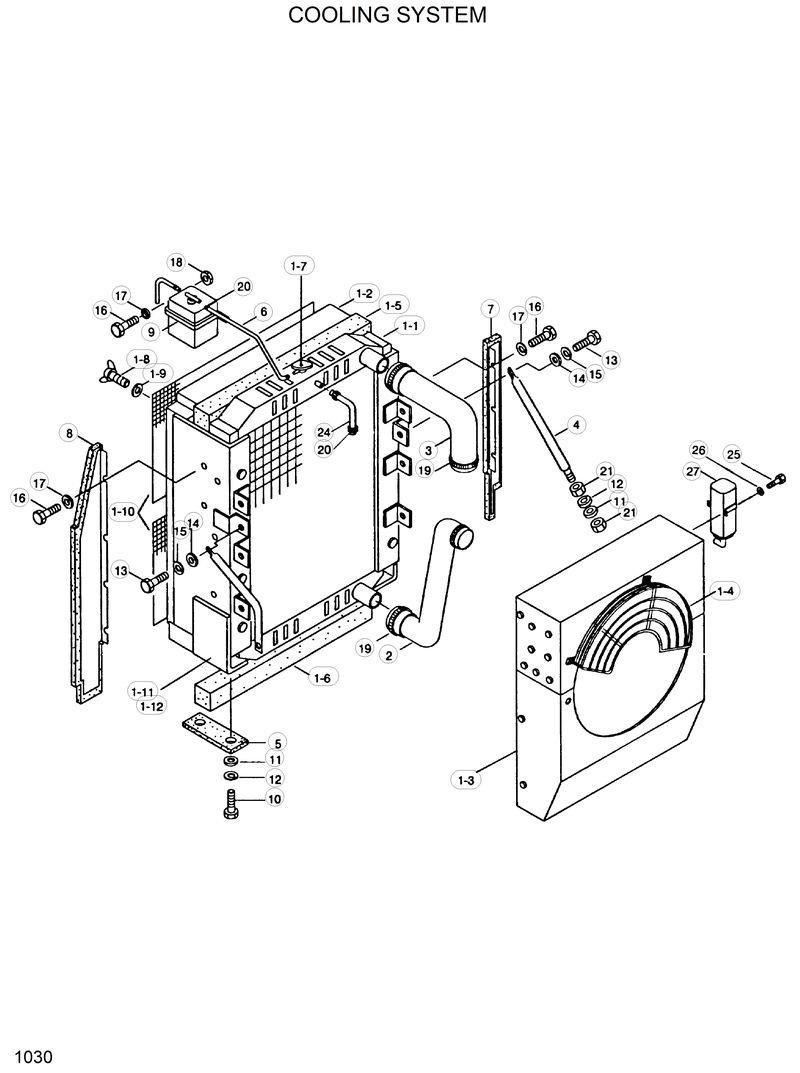

Запчасти Hyundai R290LC COOLING SYSTEM

S015-080152

S015-080152-Bolt-Hex

11E4-4013

11E4-4013-Hose-Inlet

S091-060152

S091-060152-. Bolt-Wing

S520-015000

S520-015000-Clamp-Hose

S520-015000

S520-015000-Clamp-Hose

S411-080002

S411-080002-Washer-Spring

S411-080002

S411-080002-Washer-Spring

S015-080152

S015-080152-Bolt-Hex

11E4-4013

11E4-4013-Hose-Inlet

1

11E9-4101

11E9-4101-Radiator Total Assy

1-1

11E9-4102

11E9-4102-. Radiator Assy

1-10

11E9-4108

11E9-4108-. Wire Net

1-11

11E9-4109

11E9-4109-. Support-Rh

1-12

11E9-4110

11E9-4110-. Support-Lh

1-2

11E9-4003

11E9-4003-. Oil Cooler

1-3

11E9-4105

11E9-4105-. Shroud-Fan

1-4

11E9-4106

11E9-4106-. Guard-Fan

1-5

11E9-4004

11E9-4004-. Sponge

1-6

11E9-4005

11E9-4005-. Sponge

1-7

11E9-4205

11E9-4205-. Cap

1-8

S091-060122

S091-060122-. Bolt-Wing

1-9

S411-060002

S411-060002-. Washer-Spring

10

S017-120402

S017-120402-Bolt-Hex

11

S403-122002

S403-122002-Washer-Plain

12

S411-120002

S411-120002-Washer-Spring

13

S017-100302

S017-100302-Bolt-Hex

14

S403-102002

S403-102002-Washer-Plain

15

S411-100002

S411-100002-Washer-Spring

18

S205-081002

S205-081002-Nut-Hex

19

S520-070000

S520-070000-Clamp-Hose

2

11E9-4103

11E9-4103-Hose

21

S207-121002

S207-121002-Nut-Hex

24

11E9-4107

11E9-4107-Hose-Vent

25

S015-060152

S015-060152-Bolt-Hex

26

S411-060002

S411-060002-Washer-Spring

27

3302657

3302657-Ether Cylinder

3

11E9-4104

11E9-4104-Hose

4

E211-4104

E211-4104-Rod

5

11E9-4010

11E9-4010-Pad-Rubber

7

11E9-4011

11E9-4011-Screen

8

11E9-4012

11E9-4012-Screen

9

11E9-4013

11E9-4013-Clamp
