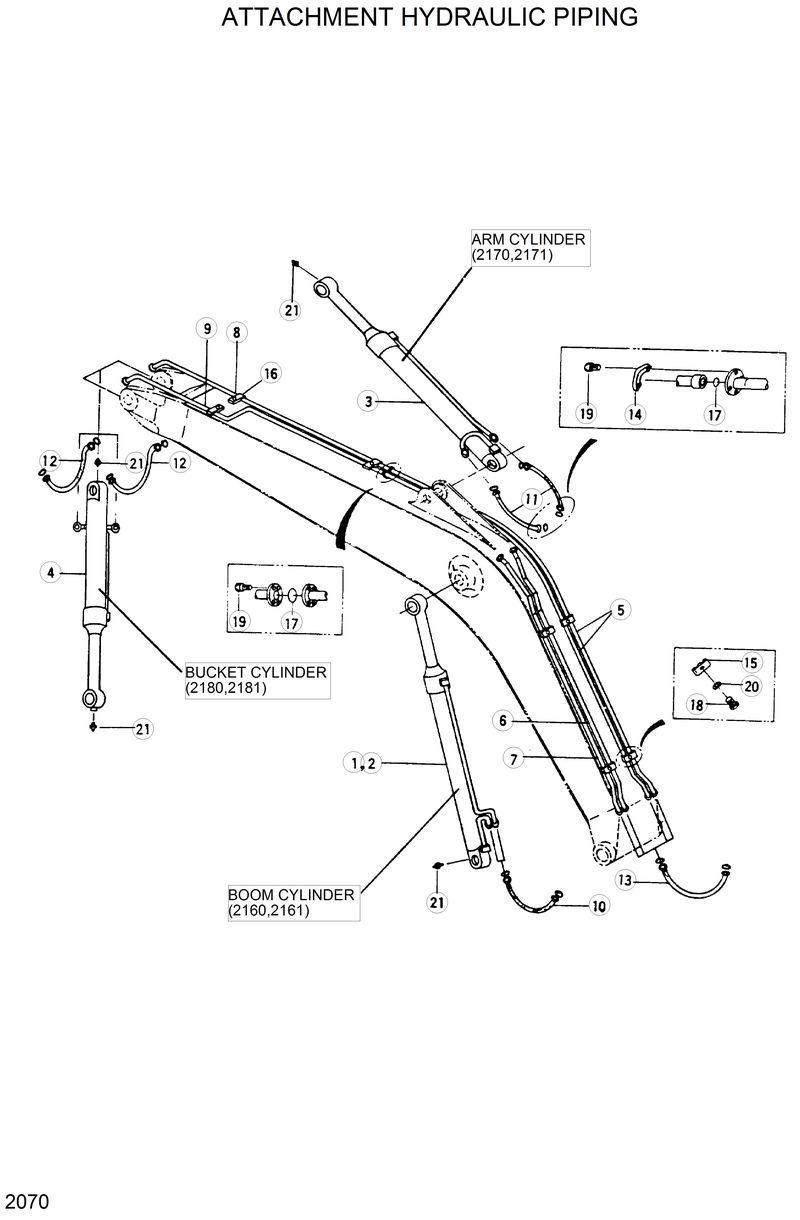

Запчасти Hyundai R290LC ATACHMENT HYDRAULIC PIPING

31E9-50220

31E9-50220-Boom Cylinder-Rh

31E9-50210

31E9-50210-Boom Cylinder-Lh

31E9-50230

31E9-50230-Arm Cylinder

31E9-50240

31E9-50240-Bucket Cylinder

P691-167336

P691-167336-Hose Assy-Flg 0x45

P681-127325

P681-127325-Hose Assy-Flg

P681-167346

P681-167346-Hose Assy-Flg

1

31E9-0006

31E9-0006-Boom Cylinder-Rh

10

P681-137317

P681-137317-Hose Assy-Flg

11

P680-167322

P680-167322-Hose Assy-Flg

12

P681-167332

P681-167332-Hose Assy-Flg

13

31E5-2018

31E5-2018-Hose

14

P173-160104

P173-160104-Flange-Split

15

E131-0333

E131-0333-Clamp-Pipe

16

31E9-0114

31E9-0114-Clamp-Pipe

17

CO0423A

CO0423A-O-Ring

18

S017-160602

S017-160602-Bolt-Hex

19

S107-100302

S107-100302-Bolt-Socket

2

31E9-0007

31E9-0007-Boom Cylinder-Lh

20

S411-160002

S411-160002-Washer-Spring

21

S651-810002

S651-810002-Nipple-Grease

3

31E9-0008

31E9-0008-Arm Cylinder

4

31E9-0009

31E9-0009-Bucket Cylinder

5

31E9-0124

31E9-0124-Pipe Assy

6

31E9-0068

31E9-0068-Pipe Assy

7

31E9-0069

31E9-0069-Pipe Assy

8

31E9-0070

31E9-0070-Pipe Assy

9

31E9-0071

31E9-0071-Pipe Assy
