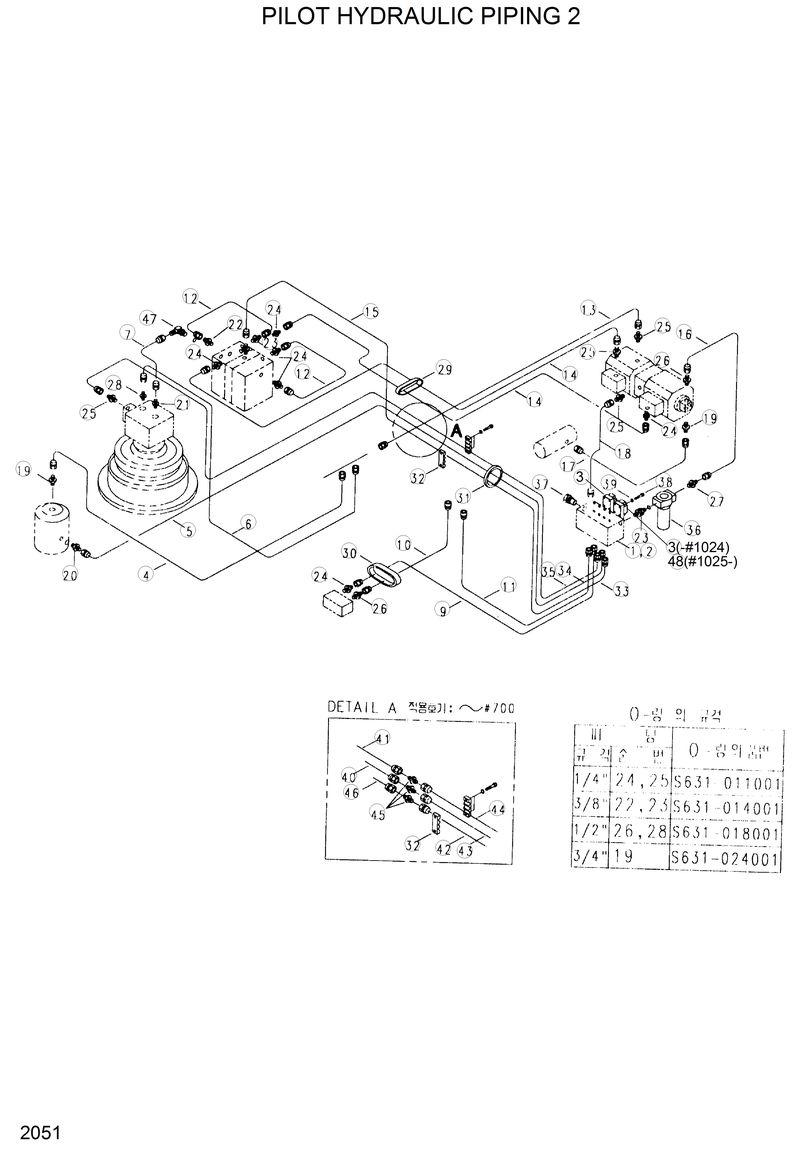

Запчасти Hyundai R290LC PILOT HYDRAULIC PIPING 2

P600-123014

P600-123014-Hose Assy-Thd

P620-083031

P620-083031-Hose Assy-Thd 0x90

31E9-0140

31E9-0140-Grommet

P780-047016

P780-047016-Hose Assy-Thd 90x90

P620-047016

P620-047016-Hose Assy-Thd 0x90

P010-110004

P010-110004-Connector

P620-042048

P620-042048-Hose Assy-Thd 0x90

P020-110001

P020-110001-Elbow-90

P010-110002

P010-110002-Connector

P020-110013

P020-110013-Elbow-90

P620-083020

P620-083020-Hose Assy-Thd 0x90

P010-110005

P010-110005-Connector

P600-042016

P600-042016-Hose Assy-Thd 0x0

P620-083031

P620-083031-Hose Assy-Thd 0x90

P620-042037

P620-042037-Hose Assy-Thd 0x90

P620-042060

P620-042060-Hose Assy-Thd 0x90

P600-042060

P600-042060-Hose Assy-Thd

P620-083047

P620-083047-Hose Assy-Thd 0x90

P620-083044

P620-083044-Hose Assy-Thd 0x90

P620-083043

P620-083043-Hose Assy-Thd 0x90

31E5-3040

31E5-3040-Valve-Solenoid

31E5-3040

31E5-3040-Valve-Solenoid

P600-162016

P600-162016-Hose Assy-Thd

31E3-0017

31E3-0017-Filter-Line

P600-162015

P600-162015-Hose Assy-Thd

P620-042051

P620-042051-Hose Assy-Thd 0x90

1

31E4-0024

31E4-0024-Valve-Check

10

31E2-2012

31E2-2012-Hose Assy

10

31E2-2012

31E2-2012-Hose Assy

11

E131-0058

E131-0058-Pipe

12

E131-0158

E131-0158-Hose Assy

13

P630-122321

P630-122321-Hose Assy-Thd Flg

14

31E3-2076

31E3-2076-Hose Assy

15

P620-042042

P620-042042-Hose Assy-Thd 0x90

16

E131-0146

E131-0146-Hose Assy

17

31E3-2050

31E3-2050-Hose Assy

18

31E3-2011

31E3-2011-Hose Assy

2

31E9-0042

31E9-0042-Block

20

P030-110011

P030-110011-Elbow-45

21

P020-110005

P020-110005-Elbow-90

23

P010-110013

P010-110013-Connector

24

E111-0128

E111-0128-Fitting

25

31E3-3080

31E3-3080-Elbow-90

26

E131-0125

E131-0125-Fitting

26

E131-0125

E131-0125-Fitting

27

P030-110003

P030-110003-Elbow-45

28

31E3-3177

31E3-3177-Fitting

29

E231-0273

E231-0273-Grommet

30

31E5-3031

31E5-3031-Grommet

31

S551-050203

S551-050203-Clamp-Band

32

31E9-0108

31E9-0108-Fitting

32

31E9-0108

31E9-0108-Fitting

36

31E3-0018

31E3-0018-Element-Line Filter

37

31E3-3098

31E3-3098-Plug

38

S017-100252

S017-100252-Bolt-Hex

39

S411-100002

S411-100002-Washer-Spring

4

E231-0191

E231-0191-Hose Assy

40

P620-042044

P620-042044-Hose Assy-Thd 0x90

40

P620-042044

P620-042044-Hose Assy-Thd 0x90

41

E231-0188

E231-0188-Hose Assy

41

E231-0188

E231-0188-Hose Assy

42

31E9-0055

31E9-0055-Pipe Assy

42

31E9-0055

31E9-0055-Pipe Assy

43

31E9-0056

31E9-0056-Pipe Assy

43

31E9-0056

31E9-0056-Pipe Assy

44

31E9-0057

31E9-0057-Pipe Assy

44

31E9-0057

31E9-0057-Pipe Assy

45

E131-0127

E131-0127-Fitting

46

E231-0127

E231-0127-Hose Assy

47

E231-0201

E231-0201-Elbow 90

48

31E9-20050

31E9-20050-Valve-Solenoid

7

31E3-2073

31E3-2073-Hose Assy

9

31E2-2010

31E2-2010-Hose Assy
