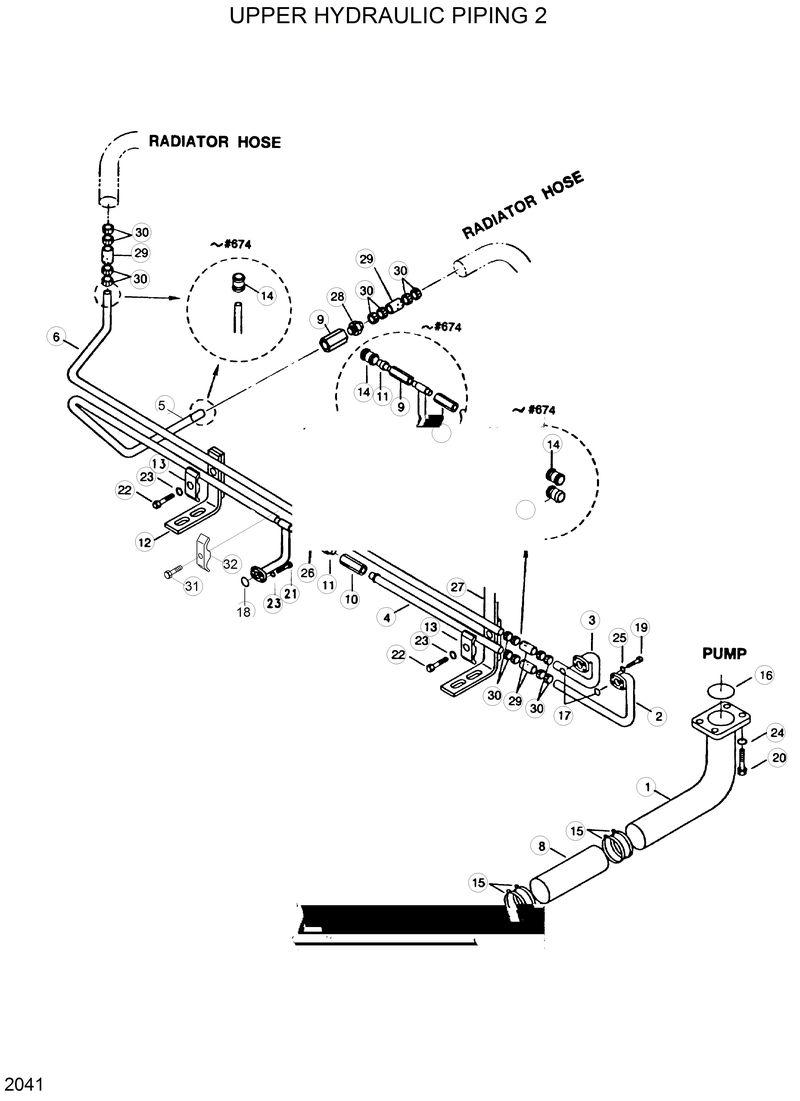

Запчасти Hyundai R290LC UPPER HYDRAULIC PIPING 2

S631-044001

S631-044001-O-Ring

31E9-0141

31E9-0141-Check Valve

31E9-0142

31E9-0142-Check Valve

31E4-3049

31E4-3049-Fitting

1

31E9-0024

31E9-0024-Pipe Assy

10

E131-0116

E131-0116-Check Valve

11

P010-110008

P010-110008-Connector

12

31E9-0034

31E9-0034-Bracket

13

31E5-3001

31E5-3001-Clamp-Pipe

14

E131-0673

E131-0673-Coupling

15

S520-084002

S520-084002-Clamp-Hose

16

S631-085001

S631-085001-O-Ring

17

S631-048001

S631-048001-O-Ring

18

C00352A

C00352A-O-Ring

19

S107-120303

S107-120303-Bolt-Socket

2

31E9-0025

31E9-0025-Pipe Assy

20

S017-160402

S017-160402-Bolt-Hex

21

S107-100303

S107-100303-Bolt-Socket

22

S017-200902

S017-200902-Bolt-Hex

23

S411-100002

S411-100002-Washer-Spring

24

S411-160002

S411-160002-Washer-Spring

25

S411-120002

S411-120002-Washer-Spring

26

S631-050001

S631-050001-O-Ring

27

31E9-0033

31E9-0033-Bracket-Pipe

28

31E9-0147

31E9-0147-Fitting

29

P760-071025

P760-071025-Hose-Rubber Low

3

31E9-0026

31E9-0026-Pipe Assy

30

S520-055000

S520-055000-Clamp-Hose

31

S017-100402

S017-100402-Bolt-Hex

32

31E9-01820

31E9-01820-Bracket

4

31E9-0027

31E9-0027-Pipe Assy

5

31E9-0028

31E9-0028-Pipe Assy

6

31E9-0029

31E9-0029-Pipe Assy

8

E131-0561

E131-0561-Hose-Rubber

9

E131-0115

E131-0115-Check Valve
