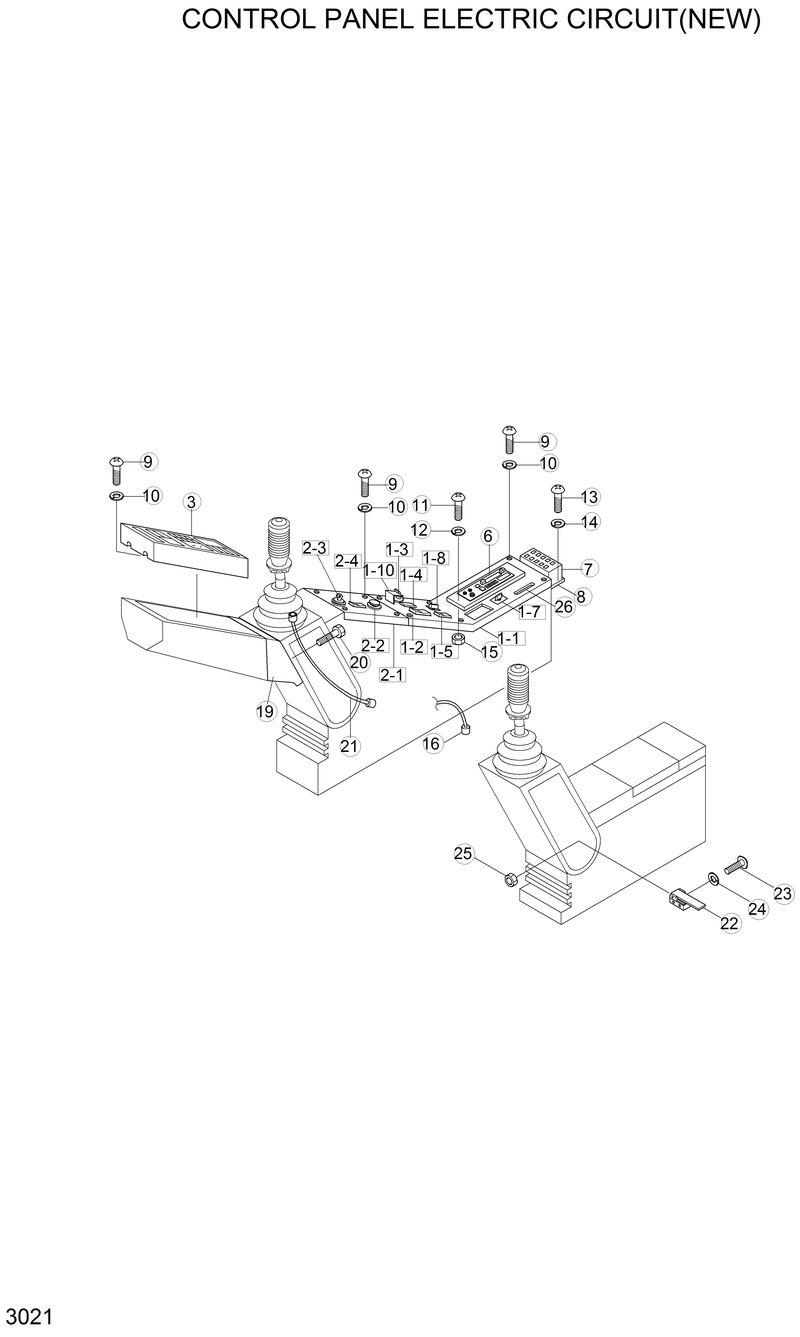

Запчасти Hyundai R280LC CONTROL PANEL ELECTRIC CIRCUIT(NEW)

21E6-00041

21E6-00041-. Switch-Wiper Washer

21E6-0004

21E6-0004-. Sw-Wiper

E127-5009-2

E127-5009-2-. Instrument Panel Plate

21E4-0008

21E4-0008-. Lighter-Cigar

21E4-00601

21E4-00601-Cluster Assy

21E8-40010

21E8-40010-Cassette Radio

1

E127-5009

E127-5009-Instrument Panel

1-1

E127-5009-1

E127-5009-1-. Instrument Panel Plate

1-2

E123-0503

E123-0503-. Switch-Wiper Washer

1-3

21E9-2003

21E9-2003-. Switch-Prolix

1-4

E321-2111

E321-2111-. Wire Link-Cold Start

1-5

21E3-2029

21E3-2029-. Switch-Dpst Ram Lock

1-7

E123-2533

E123-2533-. Switch-Heater

1-8

21E9-2002

21E9-2002-. Switch-Light

10

S411-050002

S411-050002-Washer-Spring

13

S161-060202

S161-060202-Screw

14

S411-060002

S411-060002-Washer-Spring

15

S203-041002

S203-041002-Nut-Hex

16

E121-2534

E121-2534-Cable-Earth

19

21E9-05540

21E9-05540-Bracket-Insert

2

21E1-5055

21E1-5055-Instrument Panel (2)

2-1

21E1-5053-1

21E1-5053-1-. Instrument Panel

2-2

E123-2567

E123-2567-. Cigar Lighter Assy

2-3

E123-2585

E123-2585-. Start Key Switch

2-4

E123-1008

E123-1008-. Switch-Travel Alarm

20

S105-080202

S105-080202-Bolt-Socket

21

21E1-49750

21E1-49750-Harness-Ext

22

21E3-2002

21E3-2002-Switch-Micro

23

S161-040252

S161-040252-Screw

23

S161-040252

S161-040252-Screw

24

S411-040002

S411-040002-Washer-Spring

24

S411-040002

S411-040002-Washer-Spring

25

S201-041002

S201-041002-Nut-Hex

26

21E1-4008

21E1-4008-Control Lever-Heater

27

21L1-0010

21L1-0010-Hour Meter

28

21E1-60400

21E1-60400-Harness-Ext

3-1

S862-180300

S862-180300-. Bulb-Back Light

3-2

S862-130100

S862-130100-. Bulb-Indicator

7

21E6-0003

21E6-0003-Fuse Box

8

71E3-0556

71E3-0556-Bracket-Fuse Box

9

S161-050152

S161-050152-Screw

N1-10

21E1-49520

21E1-49520-. Switch-Toggle

N2-3

21E1-4995

21E1-4995-. Sw-Start Key

N3

21E4-0060

21E4-0060-Cluster Assy

N6

21E9-4001

21E9-4001-Cassette Radio
