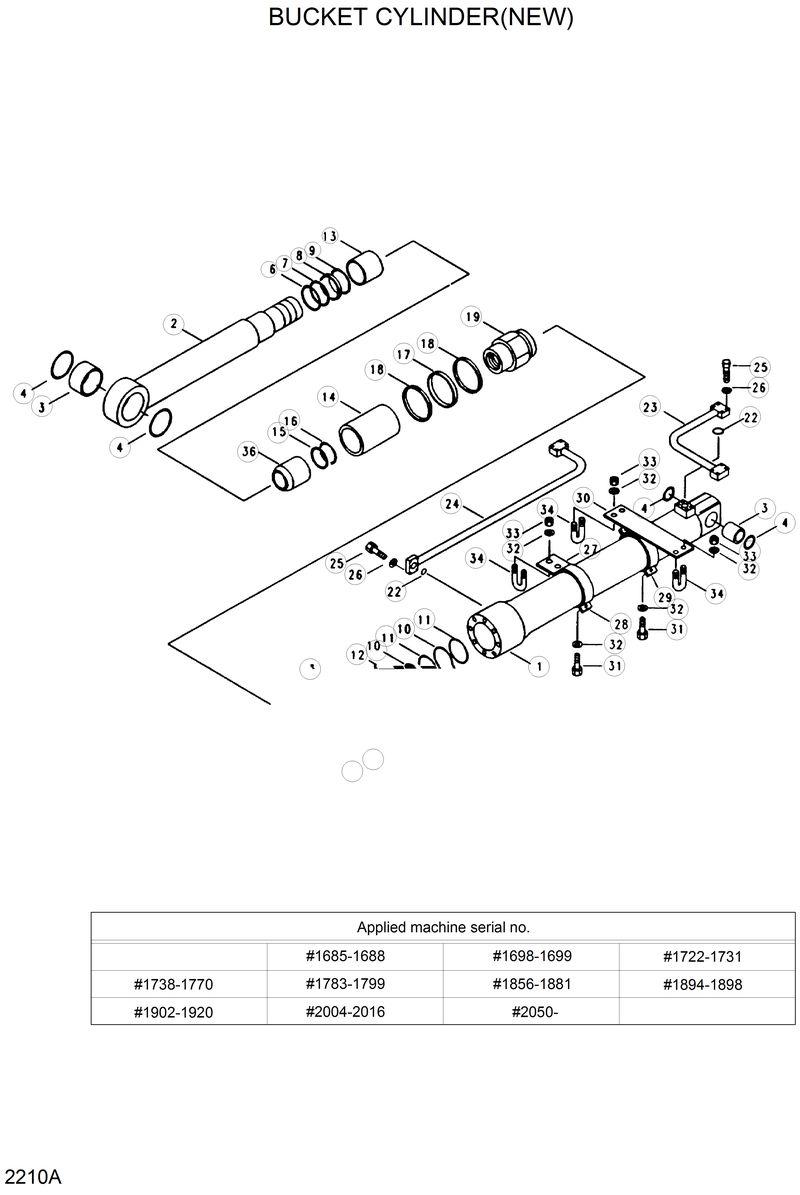

Запчасти Hyundai R280LC BUCKET CYLINDER(NEW)

1

31Y1-07200

31Y1-07200-. Tube Assy

13

S731-095040

S731-095040-. Bushing

14

31Y1-06940

31Y1-06940-. Piston

15

S632-070004

S632-070004-. O-Ring

19

31YC-65480

31YC-65480-. Nut-Nylon

2

31Y1-07250

31Y1-07250-. Rod Assy

20

S109-240752

S109-240752-. Bolt-Hex S/Head

21

S411-240002

S411-240002-. Washer-Spring

22

S631-032004

S631-032004-. O-Ring

23

31Y1-07340

31Y1-07340-. Pipe Assy-B

24

31Y1-07330

31Y1-07330-. Pipe Assy-R

25

S017-120702

S017-120702-. Bolt-Hex

26

S411-120002

S411-120002-. Washer-Spring

27

31Y1-07300

31Y1-07300-. Band Sub Assy

28

31YC-31170

31YC-31170-. Band

29

31Y1-07320

31Y1-07320-. Band Sub Assy

3

31YC-11120

31YC-11120-. Bush-Pin(B)

30

31YC-31180

31YC-31180-. Band

31

S011-100352

S011-100352-. Bolt-Hex

32

S411-100002

S411-100002-. Washer-Spring

33

S201-101002

S201-101002-. Nut-Hex

34

S071-023430

S071-023430-. U-Bolt

36

31YC-22040

31YC-22040-. Ring-Cushion

4

S700-075205

S700-075205-. Dust Seal-Dkiy Type

5

31Y1-07280

31Y1-07280-. Gland

6

Y100-095011

Y100-095011-. Wiper-Dust

K

31Y1-07350

31Y1-07350-Seal Kit

K10

S631-135004

S631-135004-. O-Ring

K11

S641-135002

S641-135002-. Ring-Back Up

K12

S632-145001

S632-145001-. O-Ring

K16

S642-070003

S642-070003-. Ring-Back Up

K17

Y420-145000

Y420-145000-. Seal-Piston

K18

Y310-145100

Y310-145100-. Ring-Wear

K7

Y200-095011

Y200-095011-. Seal-Rod

K8

Y180-095020

Y180-095020-. Ring-Back Up

K9

Y240-095011

Y240-095011-. Ring-Buffer

N*

31E2-50240

31E2-50240-Cylinder Assy
