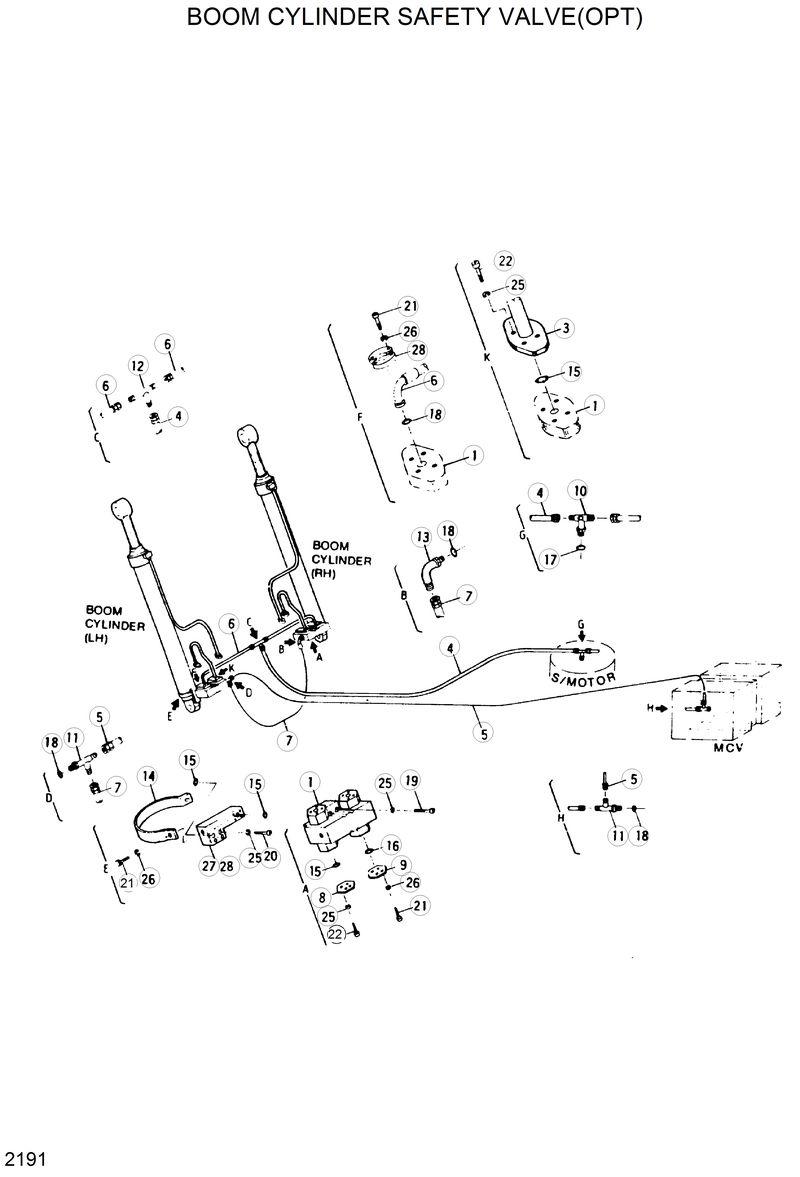

Запчасти Hyundai R280LC BOOM CYLINDER SAFETY VALVE(OPT)

1

31E2-0001

31E2-0001-Valve-Safety

10

P320-040404

P320-040404-Tee-Run Type

11

P320-161216

P320-161216-Tee-Run Type

12

31E2-3103

31E2-3103-Tee

13

P020-110001

P020-110001-Elbow-90

14

S552-020102

S552-020102-Clamp-Band

15

CO0423A

CO0423A-O-Ring

16

CO0418A

CO0418A-O-Ring

17

S631-029001

S631-029001-O-Ring

18

S631-011001

S631-011001-O-Ring

19

S107-120802

S107-120802-Bolt-Socket

2

31E2-0005

31E2-0005-Pipe Assy-Lh

20

S107-120452

S107-120452-Bolt-Socket

21

S107-100302

S107-100302-Bolt-Socket

22

S107-120352

S107-120352-Bolt-Socket

25

S411-120002

S411-120002-Washer-Spring

26

S411-100002

S411-100002-Washer-Spring

27

31E2-0003

31E2-0003-Block Assy-Lh

28

31E2-0004

31E2-0004-Block Assy-Rh

29

P173-120102

P173-120102-Flange-Split

3

31E2-0006

31E2-0006-Pipe Assy-Rh

4

E131-0153

E131-0153-Hose Assy

5

31E2-2005

31E2-2005-Hose Assy

6

31E2-2004

31E2-2004-Hose Assy

7

31E2-2020

31E2-2020-Hose Assy

8

31E2-3105

31E2-3105-Flange-Pluging

9

31E2-3106

31E2-3106-Flange-Pluging
