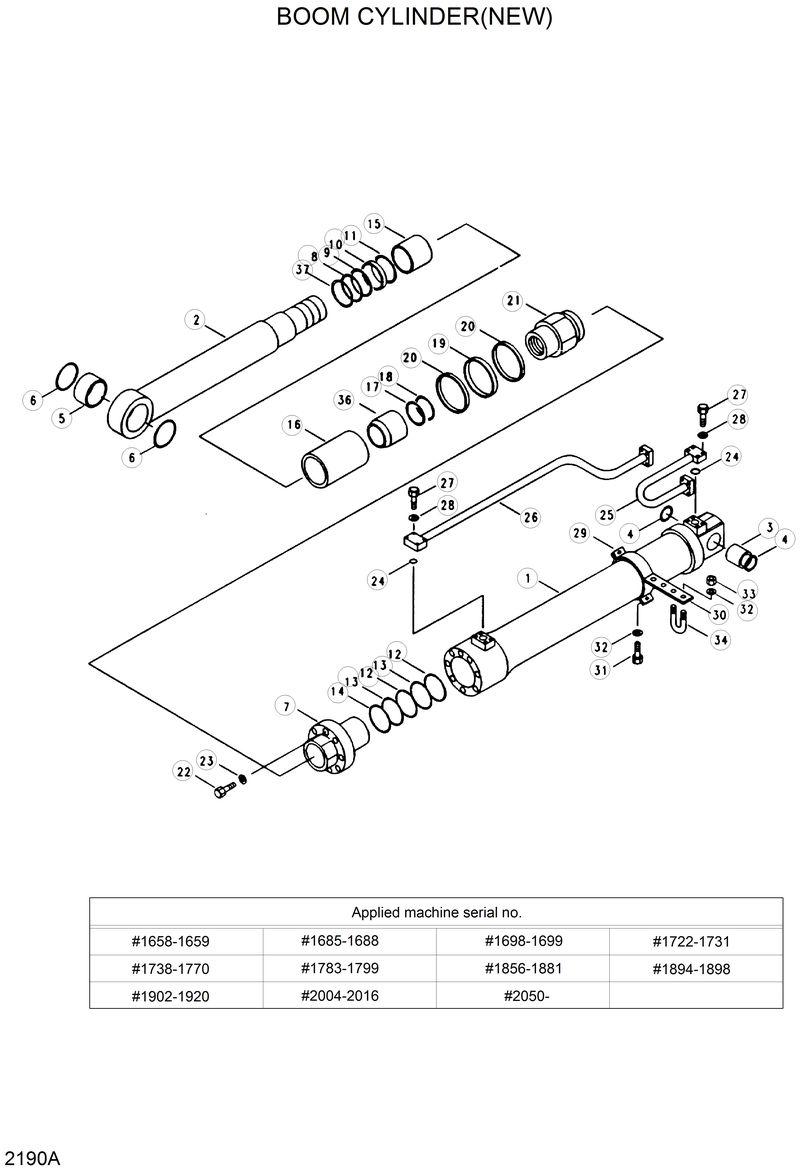

Запчасти Hyundai R280LC BOOM CYLINDER(NEW)

31Y1-06980

31Y1-06980-. Pipe Assy-R(Rh)

31Y1-07010

31Y1-07010-. Pipe Assy-B(Rh)

31E2-50220

31E2-50220-Cylinder-Boom(Rh)

1

31Y1-06850

31Y1-06850-. Tube Assy

15

S731-095040

S731-095040-. Bushing

16

31Y1-06940

31Y1-06940-. Piston

2

31Y1-06900

31Y1-06900-. Rod Assy

20

Y310-145100

Y310-145100-. Ring-Wear

21

31YC-65480

31YC-65480-. Nut-Nylon

22

S109-240752

S109-240752-. Bolt-Hex S/Head

23

S411-240002

S411-240002-. Washer-Spring

24

S631-032004

S631-032004-. O-Ring

25

31Y1-07000

31Y1-07000-. Pipe Assy-B(Lh)

26

31Y1-06970

31Y1-06970-. Pipe Assy-R(Lh)

27

S017-120702

S017-120702-. Bolt-Hex

28

S411-120002

S411-120002-. Washer-Spring

29

31YC-31160

31YC-31160-. Band

3

31YC-11120

31YC-11120-. Bush-Pin(B)

30

31Y1-06960

31Y1-06960-. Band Sub Assy

31

S011-100352

S011-100352-. Bolt-Hex

32

S411-100002

S411-100002-. Washer-Spring

33

S201-101002

S201-101002-. Nut-Hex

34

S071-023430

S071-023430-. U-Bolt

36

31YC-22050

31YC-22050-. Ring-Cushion

37

Y190-109000

Y190-109000-. Ring-Snap

4

S700-075205

S700-075205-. Dust Seal-Dkiy Type

5

31YC-11130

31YC-11130-. Bush-Pin(R)

6

S700-095208

S700-095208-. Seal-Dust

K

31Y1-06990

31Y1-06990-Seal Kit

K10

Y180-095020

Y180-095020-. Ring-Back Up

K11

Y240-095011

Y240-095011-. Ring-Buffer

K12

S631-135004

S631-135004-. O-Ring

K13

S641-135002

S641-135002-. Ring-Back Up

K14

S632-145001

S632-145001-. O-Ring

K17

S632-070004

S632-070004-. O-Ring

K18

S642-070003

S642-070003-. Ring-Back Up

K19

Y420-145000

Y420-145000-. Seal-Piston

K8

Y110-095011

Y110-095011-. Wiper-Dust

K9

Y200-095011

Y200-095011-. Seal-Rod

N*

31E2-50210

31E2-50210-Cylinder-Boom(Lh)

N7

31Y1-06930

31Y1-06930-. Gland
