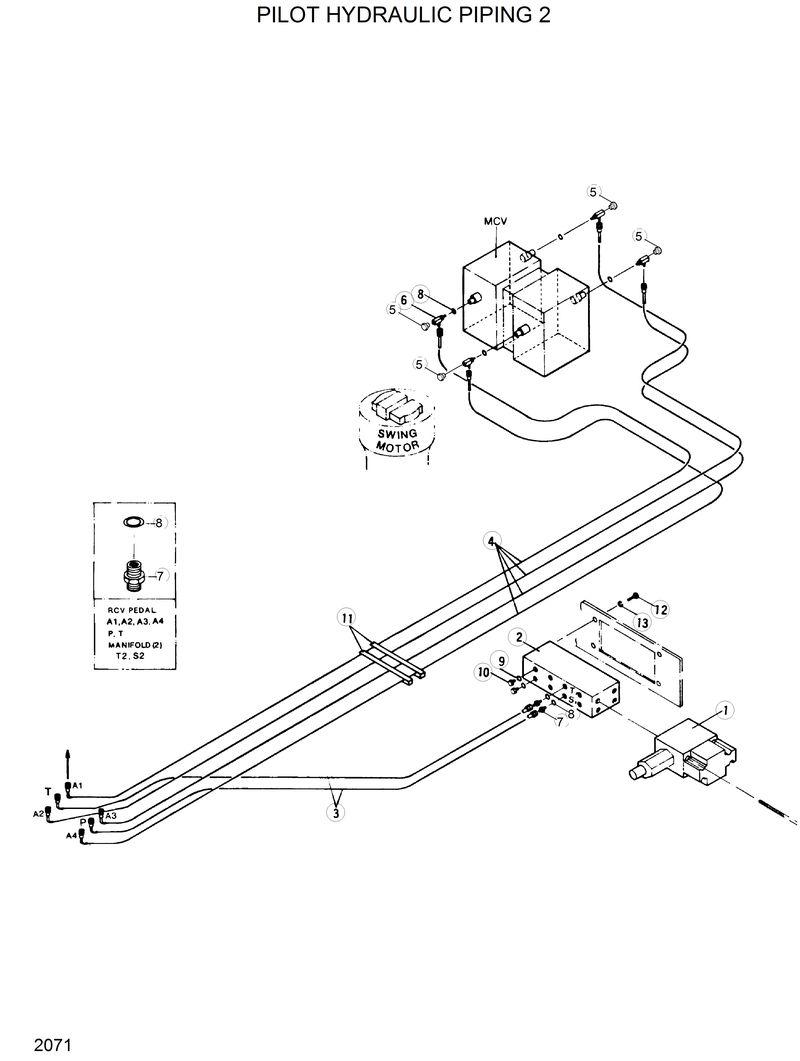

Запчасти Hyundai R280LC PILOT HYDRAULIC PIPING 2

P600-042066

P600-042066-Hose Assy-Thd

1

E131-0175

E131-0175-Solenoid Valve Assy

10

P220-110102

P220-110102-Plug-Hex

11

E131-0172

E131-0172-Grommet

12

S017-100202

S017-100202-Bolt-Hex

13

S411-100002

S411-100002-Washer-Spring

2

E131-0132

E131-0132-Manifold

3

E131-0141

E131-0141-Hose Assy

4

E131-0144

E131-0144-Hose Assy

5

P220-430201

P220-430201-Plug

6

E131-0709

E131-0709-Tee

7

P010-110001

P010-110001-Connector

8

S631-011001

S631-011001-O-Ring

9

S631-024001

S631-024001-O-Ring
