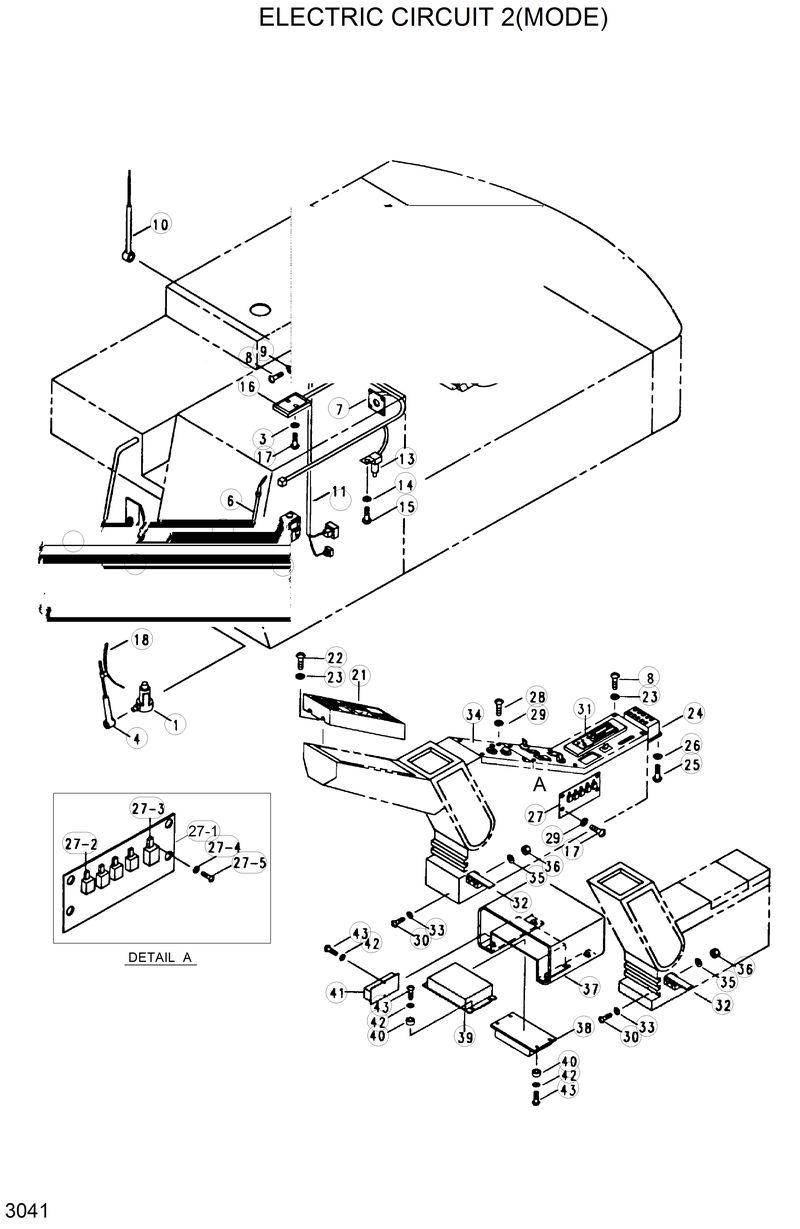

Запчасти Hyundai R200LC ELECTRIC CIRCUIT 2(MODE)

S161-060102

S161-060102-. Screw-C/R Rd

21E6-2001

21E6-2001-Plate Relay Board

21E4-0011

21E4-0011-. Relay-4p

E125-2545

E125-2545-. Relay-5p

S411-060002

S411-060002-. Washer-Spring

10

E126-3027

E126-3027-Antenna

11

21E1-0105

21E1-0105-Harness-Cabin

12

E127-3063

E127-3063-Tank-Washer

13

E123-3022

E123-3022-Switch-Door

14

S161-040162

S161-040162-Screw

16

E122-3020

E122-3020-Lamp-Room

17

S161-060162

S161-060162-Screw

18

E127-5002

E127-5002-Blade-Wiper

19

E129-2003

E129-2003-Mirror-Back

20

E129-2002

E129-2002-Stay-Back Mirror

23

S411-050002

S411-050002-Washer-Spring

23

S411-050002

S411-050002-Washer-Spring

24

21E6-0003

21E6-0003-Fuse Box

25

S161-060202

S161-060202-Screw

27

21E6-2002

21E6-2002-. Relay Board Assy

29

S411-060002

S411-060002-Washer-Spring

29

S411-060002

S411-060002-Washer-Spring

29

S411-060002

S411-060002-Washer-Spring

30

S161-040252

S161-040252-Screw

32

21E3-2002

21E3-2002-Switch-Micro

33

S401-042002

S401-042002-Washer-Plain

35

S411-040002

S411-040002-Washer-Spring

35

S411-040002

S411-040002-Washer-Spring

36

S205-041002

S205-041002-Nut-Hex

37

21E4-0057

21E4-0057-Plate

39

21E1-40161

21E1-40161-Cpu Controller

4

E127-5001

E127-5001-Arm-Wiper

40

21E9-4015

21E9-4015-Rubber-Mount

41

21E7-2000

21E7-2000-Prolix Resistor

42

S401-060002

S401-060002-Washer-Plain

43

S161-050252

S161-050252-Screw

44

21L1-0010

21L1-0010-Hour Meter

45

21E1-60400

21E1-60400-Harness-Ext

5

E127-3133

E127-3133-Holder-Cable Tie

6

E121-3009

E121-3009-Harness-Wiper Motor

7

E126-3028

E126-3028-Speaker

8

S161-050162

S161-050162-Screw-Cross R/Rd

N1

E127-3031

E127-3031-Wiper Motor Assy

N21

21E4-0060

21E4-0060-Cluster Assy

N22

21E4-00601

21E4-00601-Cluster Assy

N31

21E9-4001

21E9-4001-Cassette Radio

N34

20E1-3001

20E1-3001-Instl Panel Assy-Rh

N38

21E4-4003

21E4-4003-Lamp-Controller
