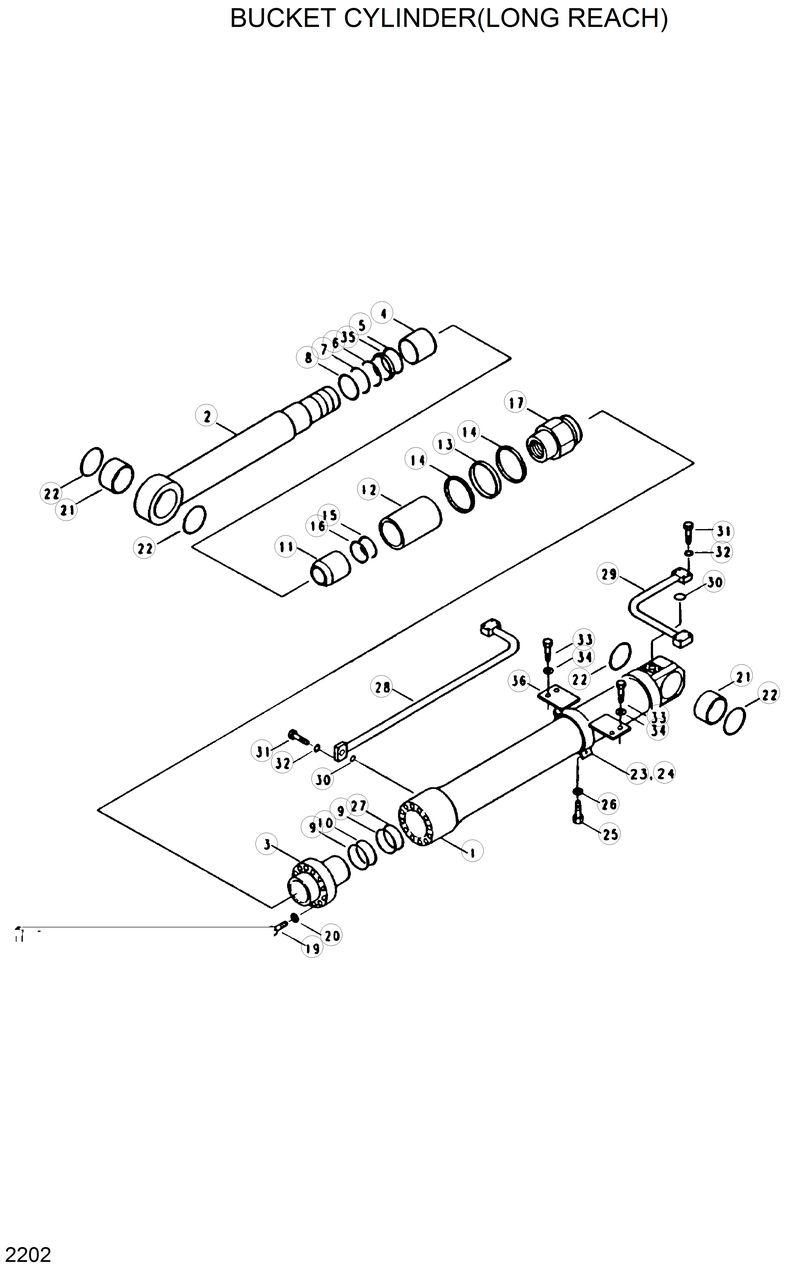

Запчасти Hyundai R200LC BUCKET CYLINDER(LONG REACH)

*

31E1-53000

31E1-53000-Bucket Cylinder Assy

1

31Y1-02750

31Y1-02750-. Tube Assy

11

31YC-29040

31YC-29040-. Ring-Cushion

12

31Y1-02500

31Y1-02500-. Piston

14

Y310-100100

Y310-100100-. Ring-Wear

17

31YC-65350

31YC-65350-. Nut-Nylon

19

S109-140554

S109-140554-. Bolt-Hex

2

31Y1-02790

31Y1-02790-. Rod Assy

21

31YC-11020

31YC-11020-. Bush-Pin

23

31YC-31010

31YC-31010-. Band

24

31Y1-03370

31Y1-03370-. Band Sub Assy

25

S011-100302

S011-100302-. Bolt-Hex

28

31Y1-03380

31Y1-03380-. Pipe Assy-R

29

31Y1-03390

31Y1-03390-. Pipe Assy-B

3

31Y1-02490

31Y1-02490-. Gland

31

S015-080502

S015-080502-. Bolt-Hex

32

S411-080002

S411-080002-. Washer-Spring

33

S071-022230

S071-022230-. U-Bolt

4

S731-065030

S731-065030-. Bushing

8

Y190-079000

Y190-079000-. Ring-Snap

K

31Y1-02870

31Y1-02870-Seal Kit(5-7,9,10,

K10

S641-090002

S641-090002-. Ring-Back Up

K13

Y420-100000

Y420-100000-. Seal-Piston

K15

S631-048004

S631-048004-. O-Ring

K16

S641-048003

S641-048003-. Ring-Back Up

K22

Y010-065080

Y010-065080-. Seal-Dust

K27

S641-090003

S641-090003-. Ring-Back Up

K30

S631-25S004

S631-25S004-. O-Ring

K35

Y180-065020

Y180-065020-. Ring-Back Up

K5

Y240-065011

Y240-065011-. Ring-Buffer

K6

Y200-065011

Y200-065011-. Seal-Rod

K7

Y110-065011

Y110-065011-. Wiper-Dust

K9

S631-090004

S631-090004-. O-Ring
