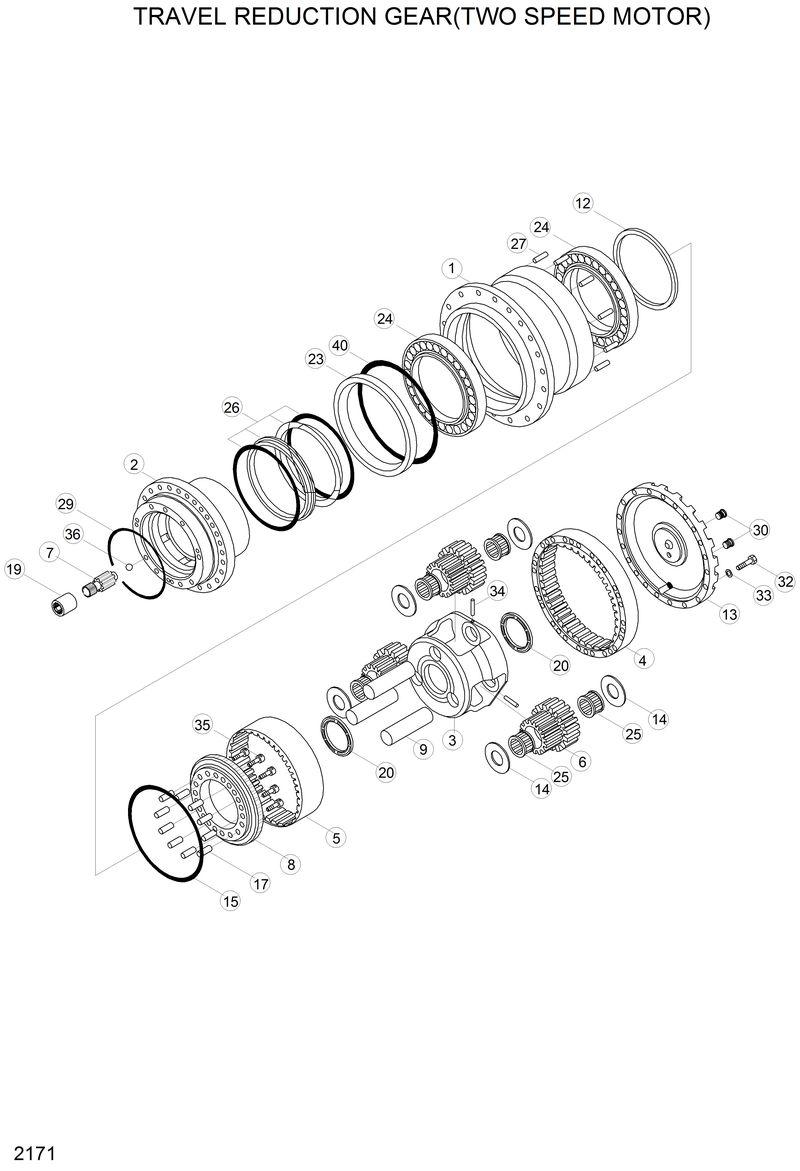

Запчасти Hyundai R200LC TRAVEL REDUCTION GEAR(TWO SPEED MOTOR)

*-2

610B1000-0200

610B1000-0200-. T/ Reduction Gear

*-21

610B1101-0100

610B1101-0100-.. Hub Kit

*-211

610B1131-0101

610B1131-0101-... Hub Assy

*-22

610B1102-0200

610B1102-0200-.. Spindle Kit

*-221

610B1132-0200

610B1132-0200-... Spindle Assy

12

610B1012-0001

610B1012-0001-.. Piece-Distance

13

610B1013-0101

610B1013-0101-.. Cover

14

610B1014-0100

610B1014-0100-.. Collar-Thrust

15

610B1015-0000

610B1015-0000-.. Ring

17

200A1015-0000

200A1015-0000-... Pin

19

50F1024-0001

50F1024-0001-.. Coupling

20

50F1030-0000

50F1030-0000-.. Plate-Thrust(R)

23

610B1023-0001

610B1023-0001-.. Ring-Seal

24

610B1033-0000

610B1033-0000-.. Bearing-Ball

25

610B1032-0100

610B1032-0100-.. Bearing-Needle

27

JB1354

JB1354-.... Pin-Parallel

3

610B1003-0100

610B1003-0100-.. Carrier

30

GM-1-2

GM-1-2-.. Plug-Socket

32

JB1180

JB1180-.. Bolt-Hex

33

SW-M12

SW-M12-.. Washer-Super Lock

34

140F1034-0000

140F1034-0000-.. Pin-Parallel

35

200725

200725-.. Bolt-Socket

36

203316

203316-.. Ball-Steel

4

610B1004-0102

610B1004-0102-.... Gear-Ring (A)

5

610B1005-0001

610B1005-0001-.. Gear-Ring(B)

6

610B1006-0100

610B1006-0100-.. Gear-Cluster

7

610B1007-0100

610B1007-0100-.. Gear-Sun

8

610B1008-0100

610B1008-0100-.... Gear-Coupling

8

610B1008-0100

610B1008-0100-.... Gear-Coupling

9

610B1009-0100

610B1009-0100-.. Shaft-Cluster

K

91E1-2712

91E1-2712-Seal Kit

K26

ES100-265

ES100-265-.. Seal-Floating

K29

JB2401-G230

JB2401-G230-.. O-Ring

K39

JB2401-P8

JB2401-P8-.. O-Ring

K40

JB2401-P340

JB2401-P340-.. O-Ring

N1

610B1001-0101

610B1001-0101-.... Hub

N2

610B1002-0200

610B1002-0200-.... Spindle
