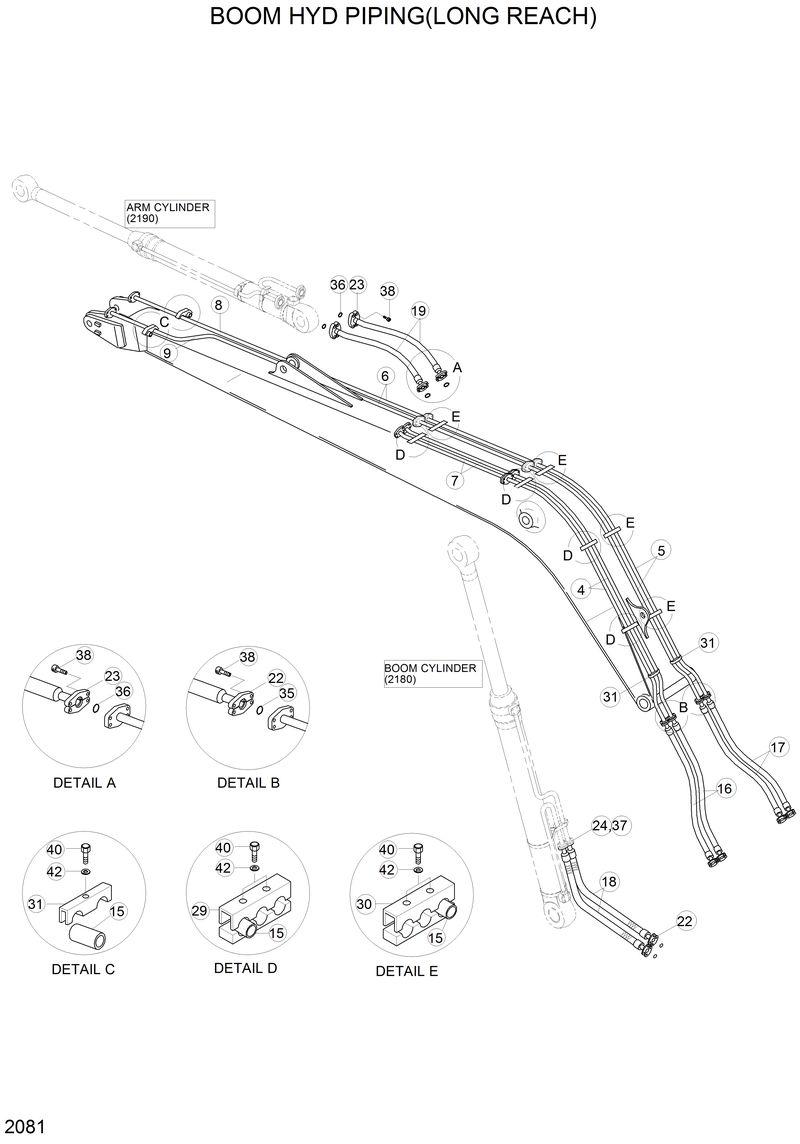

Запчасти Hyundai R200LC BOOM HYD PIPING(LONG REACH)

15

E131-0277

E131-0277-Spacer-Pipe

16

P681-166323

P681-166323-Hose Assy-Flg

17

P681-126323

P681-126323-Hose Assy-Flg

18

P681-126318

P681-126318-Hose Assy-Flg

19

P681-166324

P681-166324-Hose Assy-Flg

22

P173-120103

P173-120103-Flange-Split

23

P173-160104

P173-160104-Flange-Split

24

P173-120102

P173-120102-Flange-Split

29

32E1-1023

32E1-1023-Clamp Pipe-C

30

32E1-1024

32E1-1024-Clamp Pipe-C

31

E131-0333

E131-0333-Clamp-Pipe

35

CO0418A

CO0418A-O-Ring

36

CO0423A

CO0423A-O-Ring

37

S107-080354

S107-080354-Bolt-Socket

38

S107-100304

S107-100304-Bolt-Socket

4

32E1-1002

32E1-1002-Pipe Assy

40

S017-160602

S017-160602-Bolt-Hex

42

S411-160002

S411-160002-Washer-Spring

5

32E1-1003

32E1-1003-Pipe Assy

6

32E1-1006

32E1-1006-Pipe Assy

7

32E1-1007

32E1-1007-Pipe Assy

8

32E1-1008

32E1-1008-Pipe Assy

9

32E1-1009

32E1-1009-Pipe Assy
