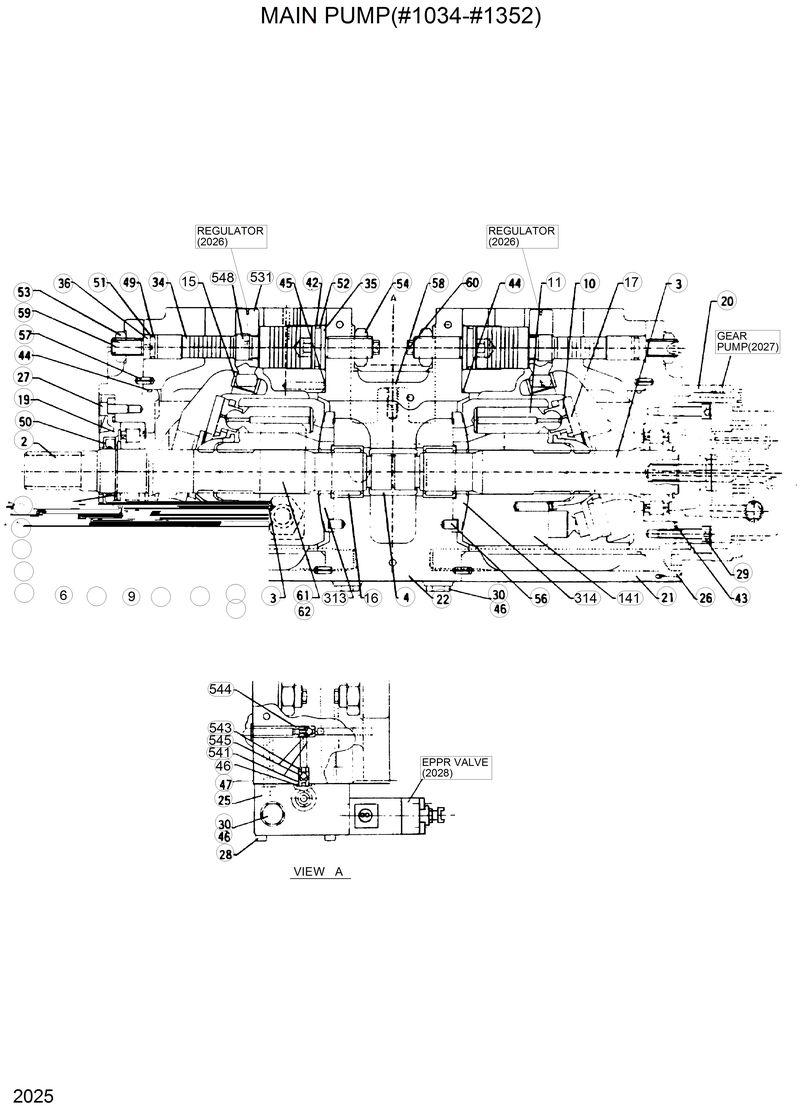

Запчасти Hyundai R200LC MAIN PUMP(#1034-#1352)

OORBG95

OORBG95-.. O-Ring

OORBG95

OORBG95-.. O-Ring

2933800928

2933800928-.. Casing-Valve

31E1-03110

31E1-03110-Main Pump

11E1-1603

11E1-1603-Main Pump

*

E111-5120

E111-5120-Main Pump

*-1

@

@-. Main Pump Unit

*-2

293G-2N19

293G-2N19-. Regulator

*-3

3803830583-1

3803830583-1-. Gear Pump

*-4

V8701302622

V8701302622-. Proportional Valve

12

2953801765

2953801765-.. Bushing

13

2953801769

2953801769-.. Spring-Cylinder

14

2953801764

2953801764-.. Spacer

16

PRNA6906

PRNA6906-.. Bearing-Needle

17

68710-00-211

68710-00-211-.. Plate-Shoe

18

2923800809

2923800809-.. Support-Sp

19

2943800464

2943800464-.. Cover-Front

2

2933800774

2933800774-.. Shaft-Drive(F)

20

2933800828

2933800828-.. Cover-Rear

21

2923800807

2923800807-.. Casing-Pump

22

2923801021

2923801021-.. Block-Valve

25

2933800944

2933800944-.. Casing-Assist

26

2953801767

2953801767-.. Screw

27

OSBM820

OSBM820-.. Screw-Hex Soc Hd

28

OSBM655

OSBM655-.. Screw

29

OSBM840

OSBM840-.. Bolt

3

2933800883

2933800883-.. Shaft-Drive(R)

30

OVP14

OVP14-.. Plug

31

OVP34

OVP34-.. Plug

32

PBP116-2403

PBP116-2403-.. Plug

34

2943800462

2943800462-.. Piston-Servo

35

2953801761

2953801761-.. Stopper(L)

36

2953801762

2953801762-.. Stopper(S)

4

2953801763

2953801763-.. Coupling-Spline

42

OORBG35

OORBG35-.. O-Ring

44

OORBG145

OORBG145-.. O-Ring

45

OORBP8

OORBP8-.. O-Ring

46

OORBP11

OORBP11-.. O-Ring

47

OORBP14

OORBP14-.. O-Ring

48

OORBP24

OORBP24-.. O-Ring

49

OORBP18

OORBP18-.. O-Ring

5

PNUP308K

PNUP308K-.. Bearing-Roller

50

PTCV40V

PTCV40V-.. Seal-Oil

51

OT2BP18

OT2BP18-.. Ring-Back Up

52

OT2BG35

OT2BG35-.. Ring-Back Up

53

ORNM16

ORNM16-.. Nut

54

ORNM20

ORNM20-.. Nut

55

OSR40

OSR40-.. Ring-Snap

56

PJR812

PJR812-.. Pin-Valve Plate

57

OSPV614

OSPV614-.. Pin-Spring

58

OEBM10

OEBM10-.. Bolt-Eye

59

PSSSM1630

PSSSM1630-.. Screw-Set

60

2953801768

2953801768-.. Screw-Set

61

PNPA-2550A

PNPA-2550A-.. Plate-Name

62

OSK2548

OSK2548-.. Pin

7

38800-127

38800-127-.. Spacer-Bearing

9

2943800463

2943800463-.. Plate-Set

NS

38901-11

38901-11-Piston Assy

NS10

38900-152

38900-152-.. Shoe

NS11

38901-151

38901-151-.. Piston

NS531

2943800517

2943800517-.. Pin-Tilting

NS541

2953802029

2953802029-.. Seat

NS543

2953802030

2953802030-.. Stopper(1)

NS544

2953802043

2953802043-.. Stopper(2)

NS548

2953802202

2953802202-.. Pin-Feed Back

NS6

2933800813

2933800813-.. Plate-Swash

S

2953801990

2953801990-Swash Plate Assy

S

2953801894

2953801894-Cylinder Assy-Lh

S

2953801893

2953801893-Cylinder Assy-Rh

S

2953802048

2953802048-Check Assy 1

S

2953802049

2953802049-Check Assy 2

S

2953801989

2953801989-Tilting Pin Assy

S141

2933800787

2933800787-.. Block-Cylinder

S15

P1R2025125

P1R2025125-.. Bushing

S313

3890R-313N

3890R-313N-.. Plate-Valve-Rh

S314

3890L-314N

3890L-314N-.. Plate-Valve-Lh

S545

ODW732

ODW732-.. Ball-Steel
