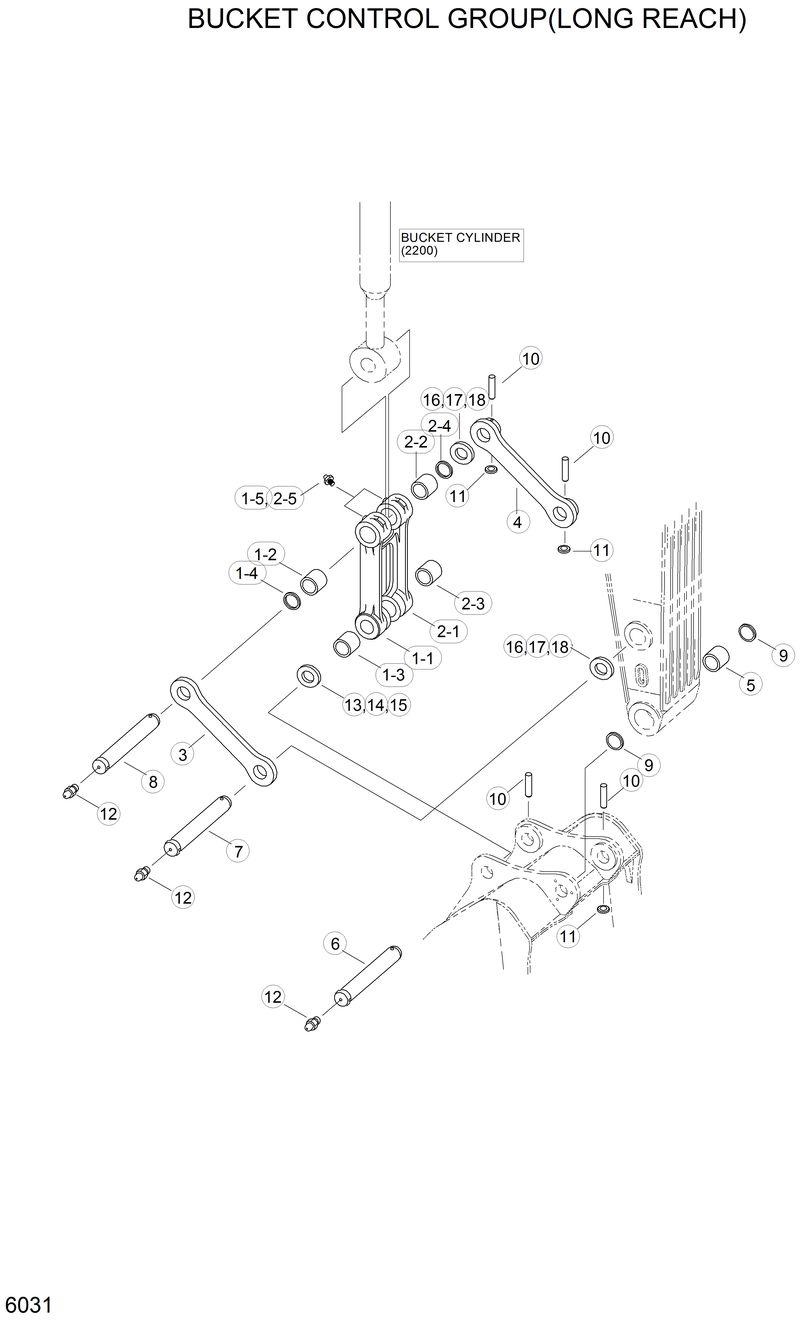

Запчасти Hyundai R200LC BUCKET CONTROL GROUP(LONG REACH)

1

61E3-2103

61E3-2103-Control Rod Assy-Lh

1-1

61E3-2101

61E3-2101-. Control Rod-Lh

10

61E3-1190

61E3-1190-Pin-Stop

11

61E3-1191

61E3-1191-Spring-Lock

12

S651-810002

S651-810002-Nipple-Grease

13

S390-065110

S390-065110-Shim-Round(0.5t)

14

S391-065110

S391-065110-Shim-Round(1.0t)

15

S392-065110

S392-065110-Shim-Round(2.0t)

16

S390-065120

S390-065120-Shim-Round(0.5t)

17

S391-065120

S391-065120-Shim-Round(1.0t)

18

S392-065120

S392-065120-Shim-Round(2.0t)

2

61E3-2104

61E3-2104-Control Rod Assy-Rh

2-1

61E3-2102

61E3-2102-. Control Rod-Rh

2-2

61E3-1128

61E3-1128-. Bushing

2-2

61E3-1128

61E3-1128-. Bushing

2-3

61E3-1124

61E3-1124-. Bushing

2-3

61E3-1124

61E3-1124-. Bushing

2-4

S700-065206

S700-065206-. Dust Seal-Dkiy Type

2-4

S700-065206

S700-065206-. Dust Seal-Dkiy Type

2-5

S651-810002

S651-810002-. Nipple-Grease

2-5

S651-810002

S651-810002-. Nipple-Grease

3

61E3-2110

61E3-2110-Control Link-Lh

4

61E3-2111

61E3-2111-Control Link-Rh

5

61E3-2105

61E3-2105-Spacer

6

61E3-1108

61E3-1108-Pin-Attach

7

61E3-1106

61E3-1106-Pin-Attach

8

61E3-1107

61E3-1107-Pin-Attach

9

E161-3052

E161-3052-O-Ring
