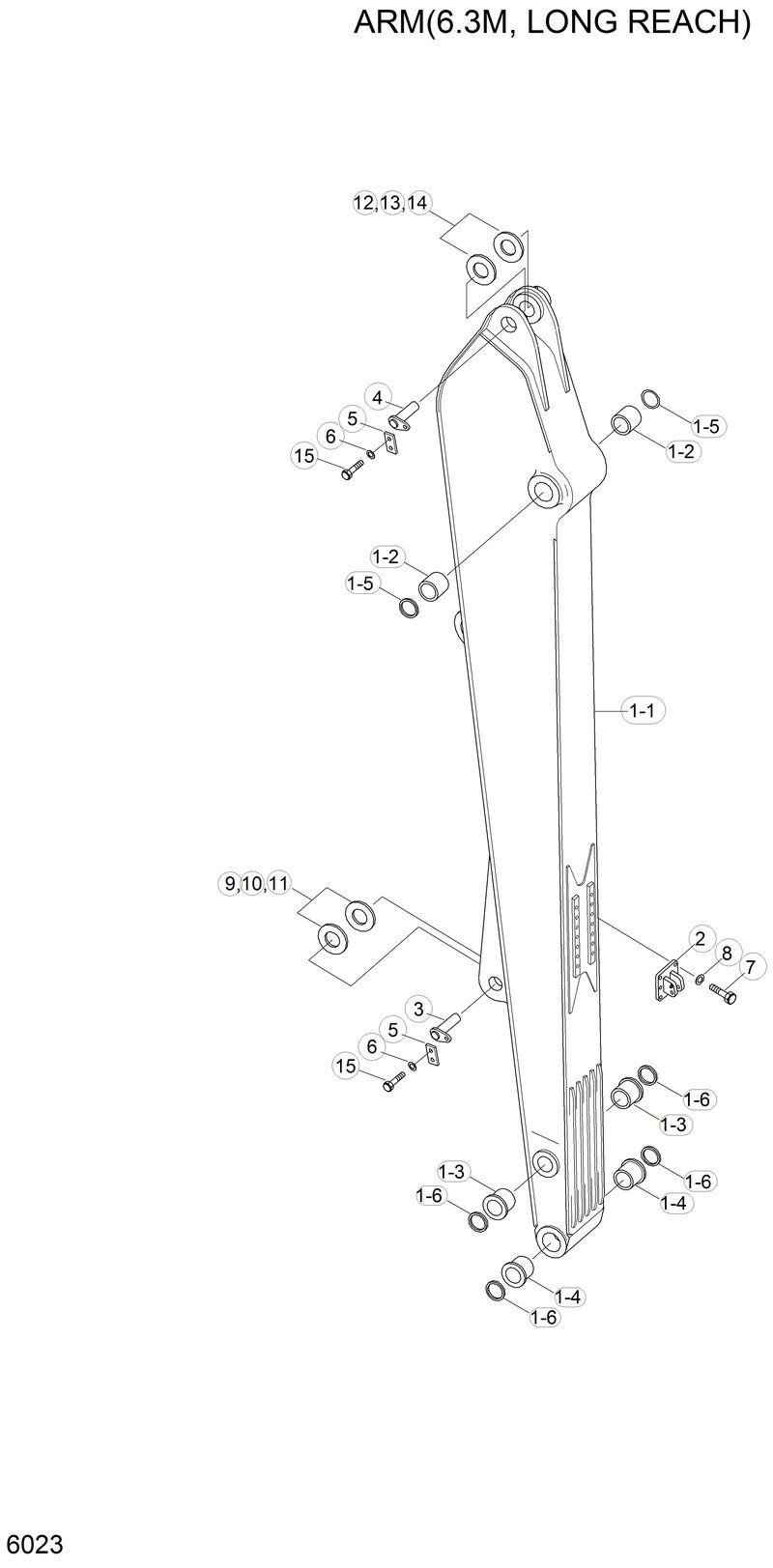

Запчасти Hyundai R200LC ARM(6.3M, LONG REACH)

1

62E1-22002

62E1-22002-Arm Assy

1-1

62E1-22013

62E1-22013-. Arm Wa

1-2

X124-802100

X124-802100-. Bushing

1-3

61E3-1124

61E3-1124-. Bushing

1-4

61E3-11251

61E3-11251-. Bushing

1-5

S700-080206

S700-080206-. Dust Seal-Dkiy Type

1-6

S700-065206

S700-065206-. Dust Seal-Dkiy Type

10

S391-065120

S391-065120-Shim-Round(1.0t)

11

S392-065120

S392-065120-Shim-Round(2.0t)

12

S391-070130

S391-070130-Shim-Round(1.0t)

13

S392-070130

S392-070130-Shim-Round(2.0t)

14

S390-070130

S390-070130-Shim-Round(0.5t)

15

S017-120252

S017-120252-Bolt-Hex

2

62E1-1110

62E1-1110-Bracket Wa

3

61E8-11010

61E8-11010-Pin Assy

4

61E8-11150

61E8-11150-Pin Assy

5

65EA-10720

65EA-10720-Plate

6

S411-120002

S411-120002-Washer-Spring

7

S017-160502

S017-160502-Bolt-Hex

8

S411-160002

S411-160002-Washer-Spring

9

S390-065120

S390-065120-Shim-Round(0.5t)
