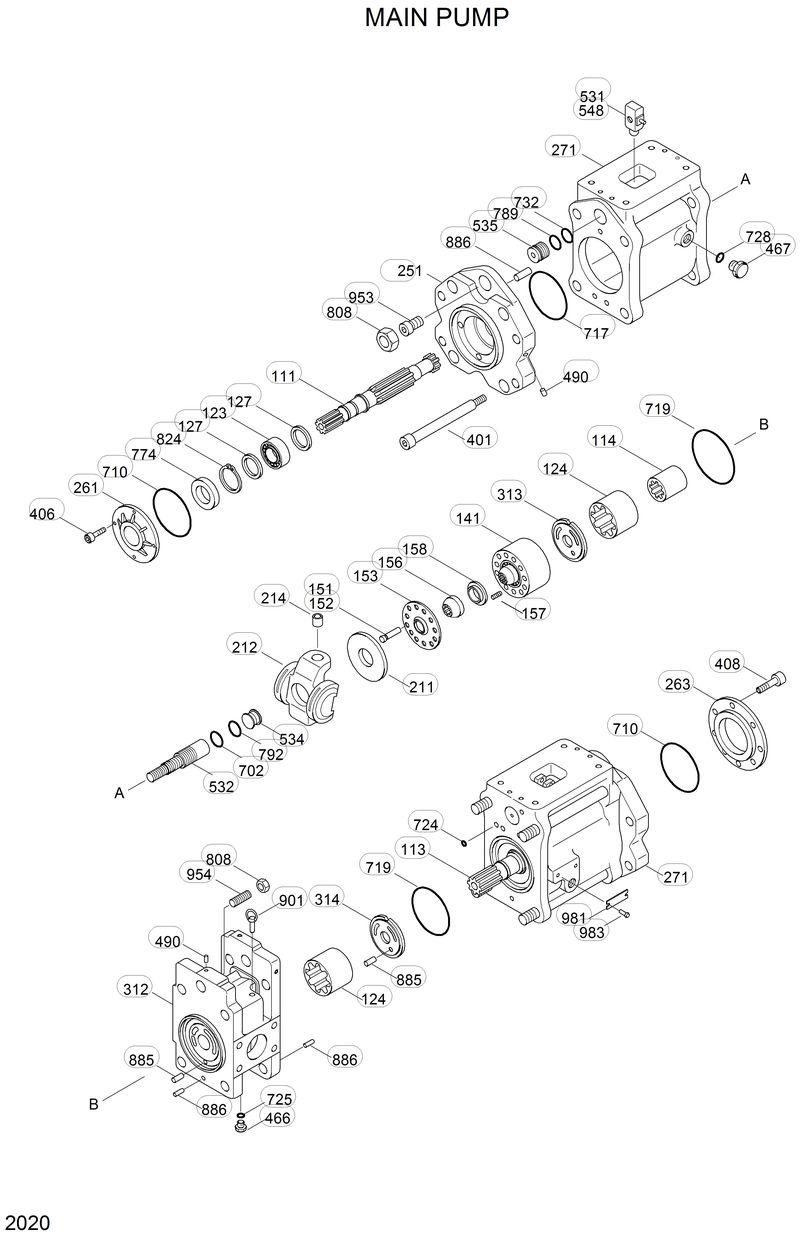

Запчасти Hyundai R130LC MAIN PUMP

*

11E6-1501

11E6-1501-Main Pump

*-1

K3V63DT-11OR

K3V63DT-11OR-. Main Pump Unit

*-2

2936-9N01

2936-9N01-. Regulator

*-3

3803830583-1

3803830583-1-. Gear Pump

111

2943800426

2943800426-.. Shaft-Drive,Fr

113

2933800889

2933800889-.. Shaft-Drive,Rr

114

2953801628

2953801628-.. Coupling-Spline

123

PNUP307K

PNUP307K-.. Bearing-Roller

124

PRNA6922

PRNA6922-.. Bearing-Needle

127

38600-127

38600-127-.. Spacer-Bearing

157

2953801623

2953801623-.. Spring-Cylinder

158

2953801624

2953801624-.. Spacer

211

2953801742

2953801742-.. Plate-Shoe

251

2923800752

2923800752-.. Support

261

2443800470

2443800470-.. Cover-Seal,Fr

263

2933800818

2933800818-.. Cover-Seal,Rr

271

2923800754

2923800754-.. Casing-Pump

312

2923800797

2923800797-.. Block-Valve

401

2953801630

2953801630-.. Bolt

406

OSBM616

OSBM616-.. Bolt

408

OSBM635

OSBM635-.. Bolt

466

OVP14

OVP14-.. Plug

467

OVP12

OVP12-.. Plug

490

PBP116-2403

PBP116-2403-.. Plug

532

2943800423

2943800423-.. Piston-Servo

534

2953801631

2953801631-.. Stopper-L

535

2953801632

2953801632-.. Stopper-S

702

OORBG30

OORBG30-.. O-Ring

710

OORBG85

OORBG85-.. O-Ring

717

OORBG120

OORBG120-.. O-Ring

719

OORBG115

OORBG115-.. O-Ring

724

OORBP8

OORBP8-.. O-Ring

725

OORBP11

OORBP11-.. O-Ring

728

OORBP18

OORBP18-.. O-Ring

732

OORBP16

OORBP16-.. O-Ring

774

PTCV35V

PTCV35V-.. Seal-Oil

789

OT2BP16

OT2BP16-.. Ring-Back Up

792

OT2BG30

OT2BG30-.. Ring-Back Up

808

ORMN16

ORMN16-.. Nut

824

OSR35

OSR35-.. Ring-Stop

885

PIR612

PIR612-.. Pin

886

OSPV614

OSPV614-.. Pin-Spring

901

OEBM10

OEBM10-.. Bolt-Eye

953

PSSSM1630

PSSSM1630-.. Screw-Set

954

2953801634

2953801634-.. Screw-Set

981

PNPA-2550

PNPA-2550-.. Plate

983

OSK2548

OSK2548-.. Pin

N153

2943800424

2943800424-.. Plate-Push

N156

2953801625

2953801625-.. Bushing

NS

38501-11

38501-11-Piston Sub(151,152)

NS212

2933800732

2933800732-.. Plate-Swash

NS313

2933800749

2933800749-.. Plate-Valve/Rh

NS314

2933800750

2933800750-.. Plate-Valve/Lh

S

2953802013

2953802013-Swash Plate Sub

S

2953801787

2953801787-Tilting Pin Sub(531,548)

S

2943800478

2943800478-Cylinder Sub(141,313)

S

2943800493

2943800493-Cylinder Sub(141,314)

S141

2943800428

2943800428-.. Block-Cylinder

S151

@

@-.. Piston

S152

@

@-.. Shoe

S214

PIR152012

PIR152012-.. Bushing

S531

2943800487

2943800487-.. Pin-Swash

S548

PIR620

PIR620-.. Pin
