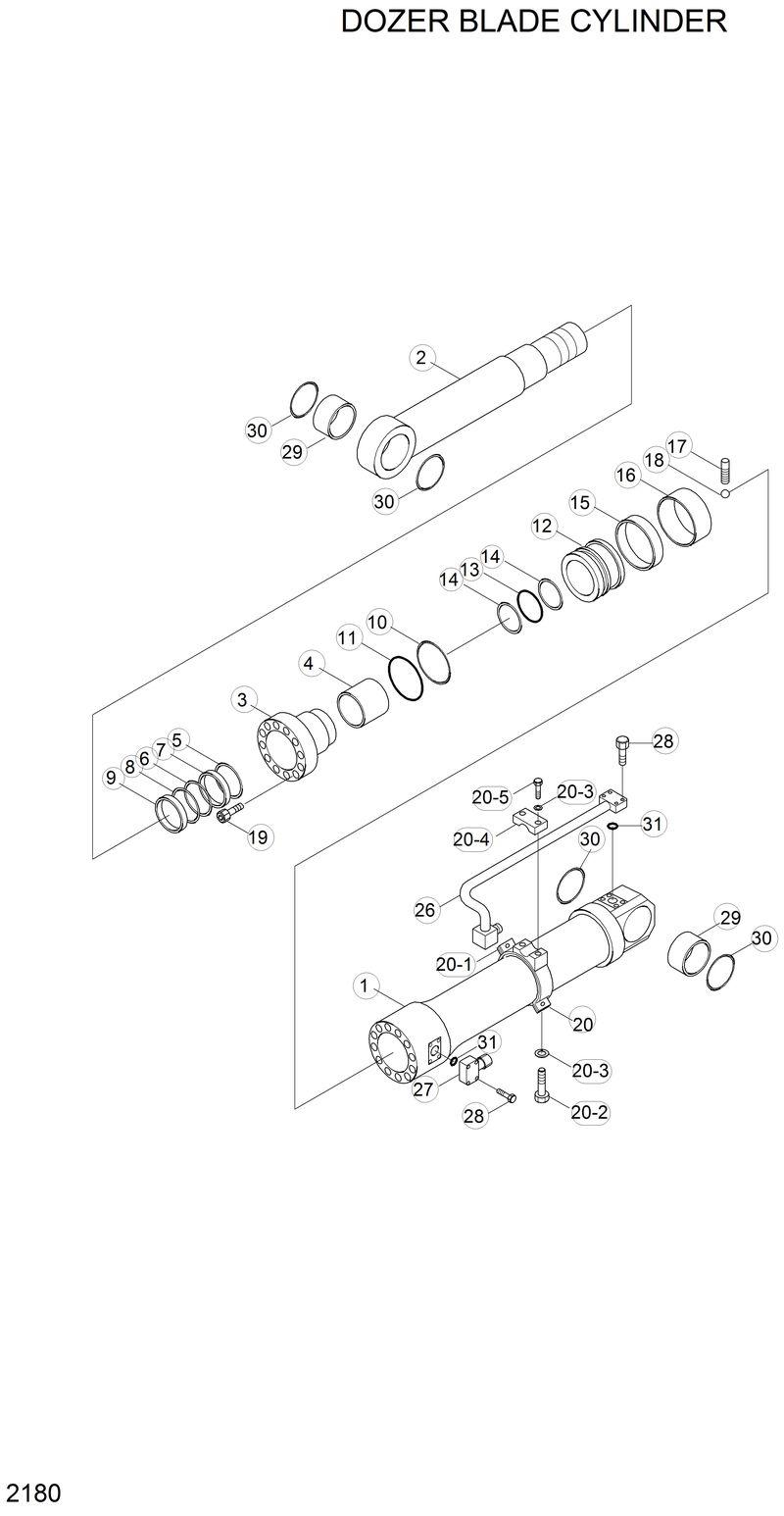

Запчасти Hyundai R130LC DOZER BLADE CYLINDER

31Y1-04000

31Y1-04000-. Pipe Assy-Lh

HC380-100-LH

HC380-100-LH-. Tube Assy-Lh

*

31E6-00120

31E6-00120-Dozer Cylinder-Rh

1

HC380-100-RH

HC380-100-RH-. Tube Assy-Rh

12

31Y1-03970

31Y1-03970-. Piston

17

S113-080104

S113-080104-. Screw

18

Y890-015011

Y890-015011-. Ball-Steel

19

S109-160554

S109-160554-. Bolt

2

31Y1-03930

31Y1-03930-. Rod Assy

20

31Y1-03980

31Y1-03980-. Band Assy

20-1

31Y1-03990

31Y1-03990-.. Band Sub Assy

20-2

S011-100352

S011-100352-.. Bolt-Hex

20-3

S411-100002

S411-100002-.. Washer-Spring

20-4

31YC-37010

31YC-37010-.. Clamp-Pipe

20-5

S011-100502

S011-100502-.. Bolt-Hex

26

31Y1-04010

31Y1-04010-. Pipe Assy-Rh

27

31YC-49060

31YC-49060-. Port-Flange

28

S107-080404

S107-080404-. Bolt-Socket

29

31YC-12080

31YC-12080-. Bushing-Pin

3

HC380-300-00

HC380-300-00-. Gland

30

Y000-070200

Y000-070200-. Seal-Dust

31

Y171-015004

Y171-015004-. O-Ring

4

S731-070040

S731-070040-. Bushing

5

Y190-084000

Y190-084000-. Ring-Snap

K

31Y1-04030

31Y1-04030-. Seal Kit

K10

S631-095004

S631-095004-. O-Ring

K11

S641-095003

S641-095003-. Ring-Back Up

K13

S632-055004

S632-055004-. O-Ring

K14

S642-055003

S642-055003-. Ring-Back Up

K15

Y420-100000

Y420-100000-. Seal-Piston

K16

Y310-100400

Y310-100400-. Ring-Wear

K6

Y200-070011

Y200-070011-. Seal-Rod

K7

Y110-070011

Y110-070011-. Wiper-Dust

K8

Y180-070020

Y180-070020-. Ring-Back Up

K9

Y260-070000

Y260-070000-. Seal-Step
