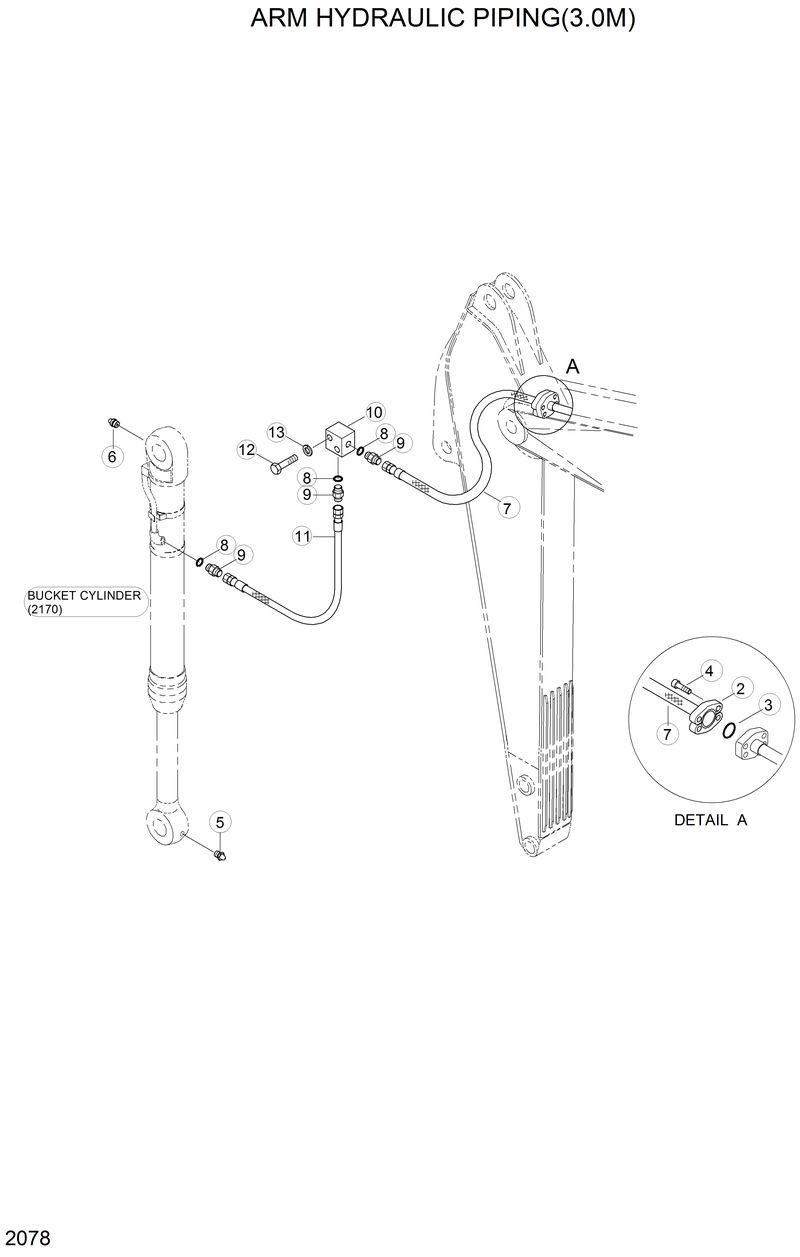

Запчасти Hyundai R130LC ARM HYDRAULIC PIPING(3.0M)

10

32E6-0002

32E6-0002-Block

11

P621-127022

P621-127022-Hose Assy-Thd 0x90

12

S017-100552

S017-100552-Bolt-Hex

13

S411-100002

S411-100002-Washer-Spring

2

P173-120102

P173-120102-Flange-Split

3

CO0418A

CO0418A-O-Ring

4

S107-100302

S107-100302-Bolt-Socket

5

S651-810002

S651-810002-Nipple-Grease

6

S653-810002

S653-810002-Nipple-Grease

7

P631-127330

P631-127330-Hose Assy-Thd Flg

8

CO0022B

CO0022B-O-Ring

9

P010-110005

P010-110005-Connector
