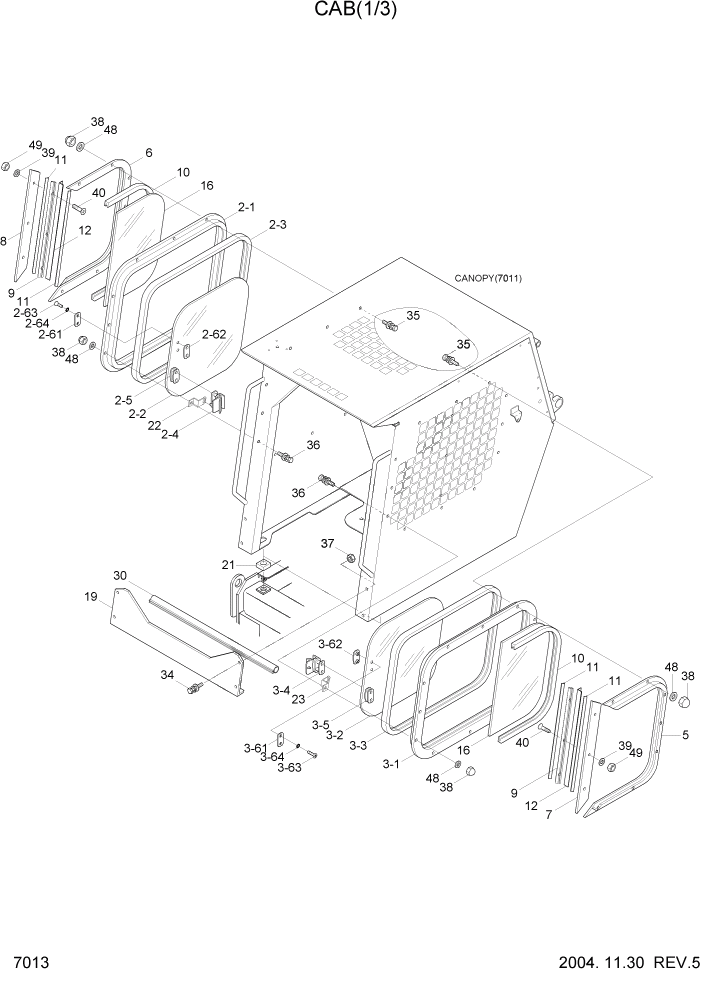

Запчасти Hyundai HSL610 PAGE 7013 CAB(1/3) КАБИНА

*

@

CAB

NOT #0001

1шт.

2

71S4-20010

SIDE DOOR ASSY-RH

#0335

1шт.

2

71S4-20011

SIDE DOOR ASSY-RH

#0336

1шт.

2-1

71S4-20100

SASH-RH

1шт.

2-2

71S4-20230

GLASS-SIDE INNER

#0335

1шт.

2-2

71S4-20231

GLASS-SIDE INNER

#0336

1шт.

2-3

71S4-20240

SEAL

1шт.

2-4

71E1-5226

LOCK ASSY

1шт.

2-5

71EH-11830

SPACER

2шт.

2-6

71S4-20350

HANDLE ASSY-GLASS

#0336

1шт.

2-61

71E1-53300

WINDOW HAND

#0336

1шт.

2-62

71E1-5229

PART-B

#0336

1шт.

2-63

S141060153

SCREW-CROSS RECESS

#0336

2шт.

2-64

S421060002

LOCK WASHER-EXTERNAL

#0336

2шт.

3

71S4-20020

SIDE DOOR ASSY-LH

#0335

1шт.

3

71S4-20021

SIDE DOOR ASSY-LH

#0336

1шт.

3-1

71S4-20200

SASH-LH

1шт.

3-2

71S4-20230

GLASS-SIDE INNER

#0335

1шт.

3-2

71S4-20231

GLASS-SIDE INNER

#0336

1шт.

3-3

71S4-20240

SEAL

1шт.

3-4

71E1-5226

LOCK ASSY

1шт.

3-5

71EH-11830

SPACER

2шт.

3-6

71S4-20350

HANDLE ASSY-GLASS

#0336

1шт.

3-61

71E1-53300

WINDOW HAND

#0336

1шт.

3-62

71E1-5229

PART-B

#0336

1шт.

3-63

S141060153

SCREW-CROSS RECESS

#0336

2шт.

3-64

S421060002

LOCK WASHER-EXTERNAL

#0336

2шт.

5

71S4-20040

SASH-LH

1шт.

6

71S4-20050

SASH-RH

1шт.

7

71S4-20060

SASH-LH

1шт.

8

71S4-20070

SASH-RH

1шт.

9

71S4-20080

SASH

2шт.

10

71S4-20090

SEAL

2шт.

11

71S4-20110

SEAL

4шт.

12

71S4-20120

SEAL

2шт.

16

71S4-20160

GLASS-SIDE

2шт.

19

71S4-20190

SHIELD-FRONT

1шт.

21

71S4-20220

PAD-RUBBER

2шт.

22

71S4-20530

HOOK-RH

1шт.

23

71S4-20540

HOOK-LH

1шт.

30

S771-008100

WEATHER STRIP

1шт.

34

S037-102022

BOLT-W/WASHER

4шт.

35

S035-082522

BOLT-W/WASHER

14шт.

36

S035-082022

BOLT-W/WASHER

10шт.

37

S205-101002

NUT-HEX

4шт.

38

S295-080002

NUT-DOMED CAP

24шт.

39

S411-050002

WASHER-SPRING

6шт.

40

S141-050202

SCREW-FLAT HD

6шт.

48

S401-082002

WASHER-PLAIN

24шт.

49

S205-051002

NUT-HEX

6шт.
