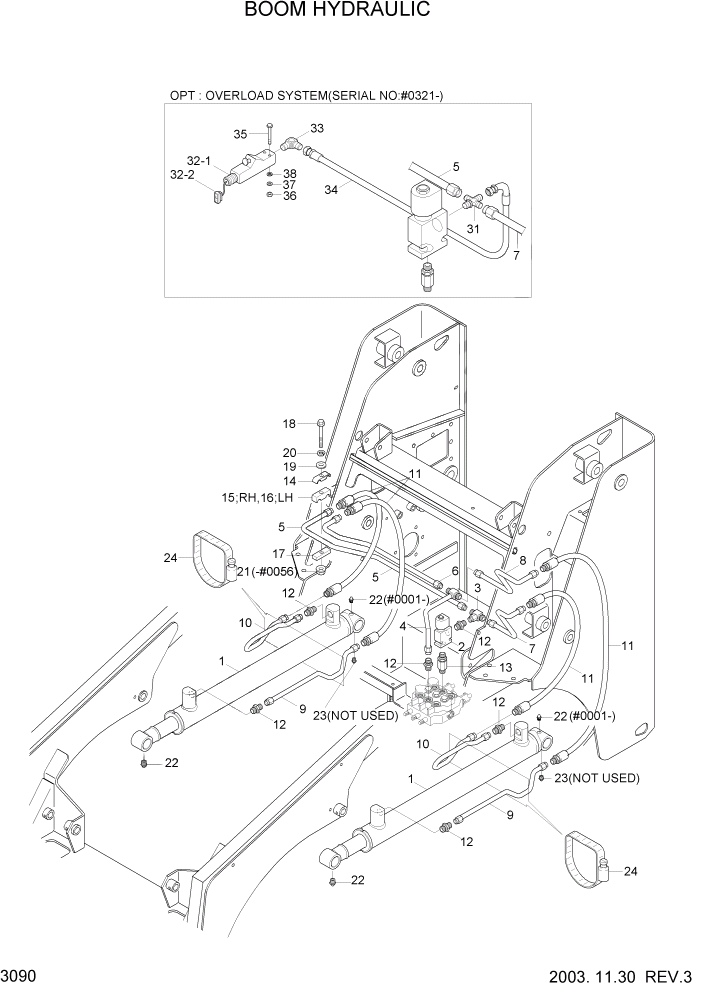

Запчасти Hyundai HSL610 PAGE 3090 BOOM HYDRAULIC ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31S4-10060

BOOM CYLINDER ASSY

2шт.

2

31S4-00040

SOLENOID VALVE

1шт.

3

31S4-10010

TUBE ASSY-1/2"OD

1шт.

4

31S4-10020

TUBE ASSY-1/2"OD

1шт.

5

31S4-10031

TUBE ASSY-1/2"OD

1шт.

6

31S4-10040

TUBE ASSY-1/2"OD

1шт.

7

31S4-10051

TUBE ASSY-1/2"OD

1шт.

8

31S4-10170

TUBE ASSY-1/2"OD

1шт.

9

31S4-10110

TUBE ASSY-1/2"OD

2шт.

10

31S4-10120

TUBE ASSY-1/2"OD

2шт.

11

31S4-20150

HOSE ASSY-3/8"ID

4шт.

12

P010-810003

CONNECTOR

6шт.

13

31S4-30061

CONNECTOR(LONG)

1шт.

14

31S4-10871

CLAMP-TUBE

2шт.

15

31S4-10890

CLAMP-TUBE

1шт.

16

31S4-10900

CLAMP-TUBE

1шт.

17

31S4-10861

BLOCK-TUBE

2шт.

18

S017-100802

BOLT-HEX

2шт.

19

S403-101002

WASHER-PLAIN

2шт.

20

S411-100002

WASHER-SPRING

2шт.

21

S205-101002

NUT-HEX

#0056

2шт.

22

S651-810002

NIPPLE-GREASE

#0001

4шт.

24

S520-070000

CLAMP-HOSE

2шт.

31

32S4-10010

TUBE ASSY-1/2"OD

OVERLOAD #0321

1шт.

32

31E5-50325

SWITCH-PRESSURE

OVERLOAD #0321

1шт.

32-1

31E5-50320

SWITCH-PRESSURE

OVERLOAD #0321

1шт.

32-2

21E5-50230

HARNESS-EXT

OVERLOAD #0321

1шт.

33

31E5-50350

ELBOW-90

OVERLOAD #0321

1шт.

34

P610-047008

HOSE ASSY-THD 0X45

OVERLOAD #0321

1шт.

35

S015-050452

BOLT-HEX

OVERLOAD #0321

2шт.

36

S205-051002

NUT-HEX

OVERLOAD #0321

2шт.

37

S403-051002

WASHER-PLAIN

OVERLOAD #0321

2шт.

38

S411-050002

WASHER-SPRING

OVERLOAD #0321

2шт.
