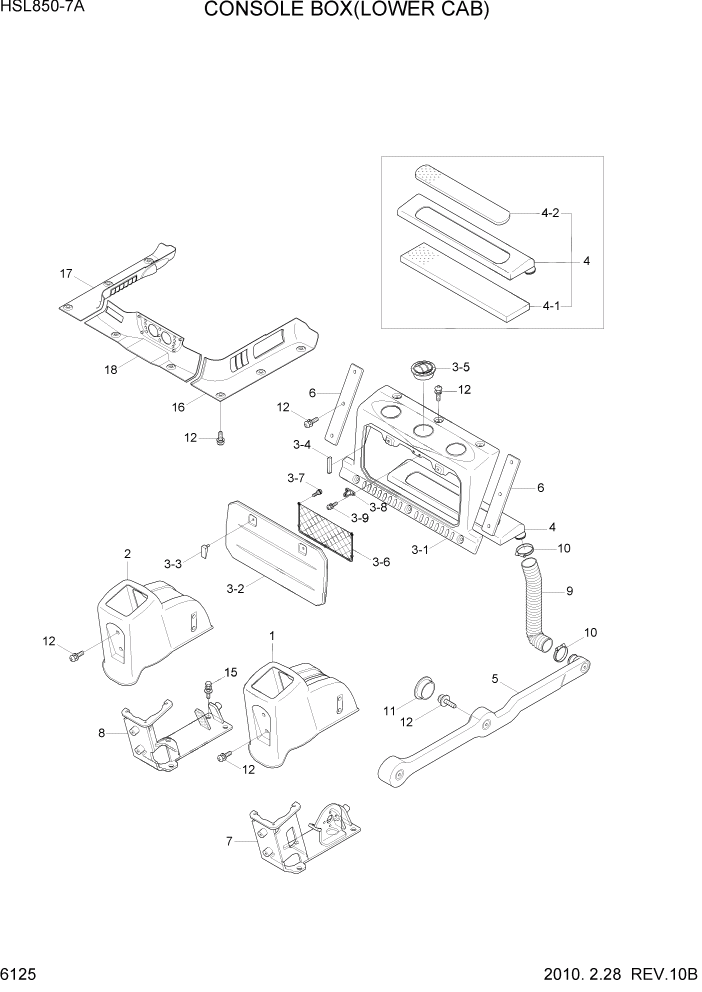

Запчасти Hyundai HSL850-7A PAGE 6125 CONSOLE BOX(LOWER CAB) СТРУКТУРА

1

71S8-20110

CONSOLE BOX-LH

1шт.

2

71S8-20120

CONSOLE BOX-RH

1шт.

3

71S8-10330

COVER ASSY-REAR

1шт.

3-1

71S7-20141

COVER-REAR

1шт.

3-1

S132-061526

SCREW-W/WASHER

2шт.

3-2

71S7-20151

DOOR-REAR

1шт.

3-3

71EM-20150

LATCH ASSY

2шт.

3-4

71S7-20221

PAD-RUBBER

4шт.

3-5

71N6-03300

AIR VENT

3шт.

3-6

71M8-20880

NET ASSY

1шт.

3-7

S151-040156

SCREW-TAPPING

2шт.

3-8

71S7-20350

PLATE WA

1шт.

3-9

S132-061526

SCREW-W/WASHER

2шт.

4

71S7-20161

DUCT-AICON

1шт.

4-1

71S7-20291

SPONGE

1шт.

4-2

71S7-20301

SPONGE

1шт.

5

71S7-20171

DUCT-SIDE

1шт.

6

71S7-20311

COVER-REAR/SIDE

2шт.

7

71S7-21014

SUPPORT W.A.-LH

1шт.

8

71S7-21023

SUPPORT WA-RH

1шт.

9

71S7-20211

HOSE-DEFROSTER

1шт.

10

S520-055000

CLAMP-HOSE

2шт.

11

71N6-03300

AIR VENT

2шт.

12

S132-081526

SCREW-W/WASHER

27шт.

15

S035-102526

BOLT-W/WASHER

8шт.

16

71S7-20241

DASHBOARD-LH

1шт.

17

71S7-20251

DASHBOARD-RH

1шт.

18

71S7-20262

DASHBOARD-CENTER

1шт.
