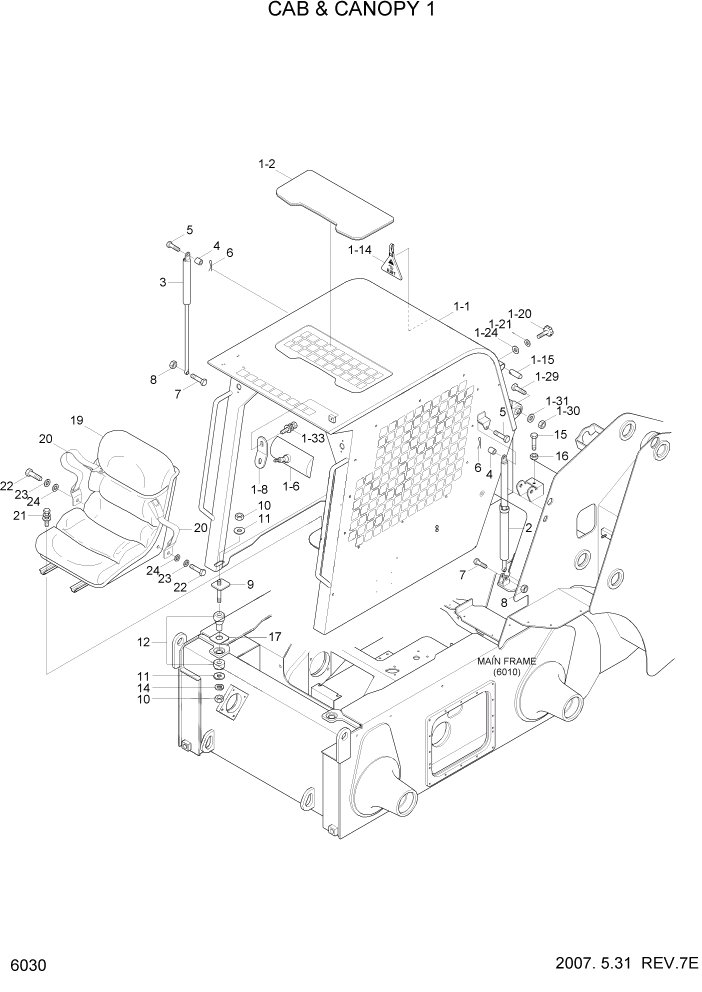

Запчасти Hyundai HSL800-7 PAGE 6030 CAB & CANOPY 1 СТРУКТУРА

1

71S7-02001

CANOPY ASSY

SEE 6040 #0193

1шт.

1

71S7-02002

CANOPY ASSY

SEE 6040 #0194 - #0390

1шт.

1

71S7-02003

CANOPY ASSY

SEE 6040 #0391

1шт.

1

71S7-00102

CAB ASSY

SEE 6040-6070 #0193

1шт.

1

71S7-02010

CANOPY ASSY

SEE 6040, STD #0497

1шт.

1

71S7-00102

CAB ASSY(LOW NOISE)

SEE 6040-6070 #0193

1шт.

1

71S7-00103

CAB ASSY(LOW NOISE)

SEE 6040-6070 #0194 - #0334

1шт.

1

71S7-00104

CAB ASSY(LOW NOISE)

SEE 6040-6070 #0335 - #1158

1шт.

1

71S7-00105

CAB ASSY

SEE 6040-6070 #1159

1шт.

1

71S7-00110

CAB ASSY

SEE 6040-70,STD #0497 - #1158

1шт.

1

71S7-00111

CAB ASSY

SEE 6040-70,STD #1159

1шт.

1-1

71S7-00501

CANOPY WA-ROPS

#0193

1шт.

1-1

71S7-00502

CANOPY WA

#0194 - #0334

1шт.

1-1

71S7-00503

CANOPY WA

#0335

1шт.

1-2

71S7-00692

COVER(PC)

1шт.

1-6

71L1-3377

MIRROR-ROOM

1шт.

1-8

71S4-10870

BRACKET

1шт.

1-14

71S4-10670

TAG-EXIT

1шт.

1-15

71S4-10700

PIN-LOCK

1шт.

1-2

61S1-1008

BOLT ASSY-SPECIAL

1шт.

1-21

61S1-1036

PACKING-RUBBER

1шт.

1-24

S403-082002

WASHER-PLAIN

1шт.

1-29

S017-181052

BOLT-HEX

2шт.

1-3

S275-180002

NUT-SELF LOCKING

2шт.

1-31

S403-182002

WASHER-PLAIN

2шт.

1-33

S033-081526

BOLT-W/WASHER

1шт.

2

71S4-10530

GAS SPRING-LOCK TYPE

CANOPY

1шт.

3

71S4-10540

GAS SPRING-NON LOCK

CANOPY

1шт.

3

71S4-20571

GAS SPRING

CAB

2шт.

4

72S4-10710

NYLON BUSH

#0465

2шт.

4

71S4-10711

NYLON BUSH

#0466

2шт.

5

11S4-30060

BOLT-SPECIAL

2шт.

6

S501-080002

PIN-SELF LOCKING

2шт.

7

S017-100452

BOLT-HEX

2шт.

8

S275-100002

NUT-SELF LOCKING

2шт.

9

71S4-10581

SUPPORT WA-BOLT

2шт.

10

S205-121002

NUT-HEX

4шт.

11

11S1-3017

WASHER-SPECIAL

4шт.

12

11S1-3016

RUBBER-MOUNT

2шт.

14

S411-120002

WASHER-SPRING

2шт.

15

S017-160552

BOLT-HEX

2шт.

16

S205-163002

NUT-HEX

2шт.

16

S205-163002

NUT-HEX

2шт.

17

71S7-00950

RUBBER PAD

CAB

1шт.

19

71S4-10500

SEAT ASSY

EXPORT #0003

1шт.

19

71S4-10501

SEAT ASSY-SEARS/2"

EXPORT #0004

1шт.

19

72S4-10500

SEAT ASY-WITHOUT BELT

DOMESTIC

1шт.

19

71S7-10500

SEAT ASSY-SEARS/3"

EXPORT #0184

1шт.

19

71S7-10510

SEAT ASSY-WOO/2"

DOMESTIC #0216

1шт.

20

71S4-10760

SEAT BELT

1шт.

21

S105-080156

BOLT-SOCKET

4шт.

22

81S1-0021

BOLT-HEX

2шт.

23

81S1-0022

WASHER-SPRING

2шт.

24

81S1-0023

WASHER-PLAIN

2шт.
