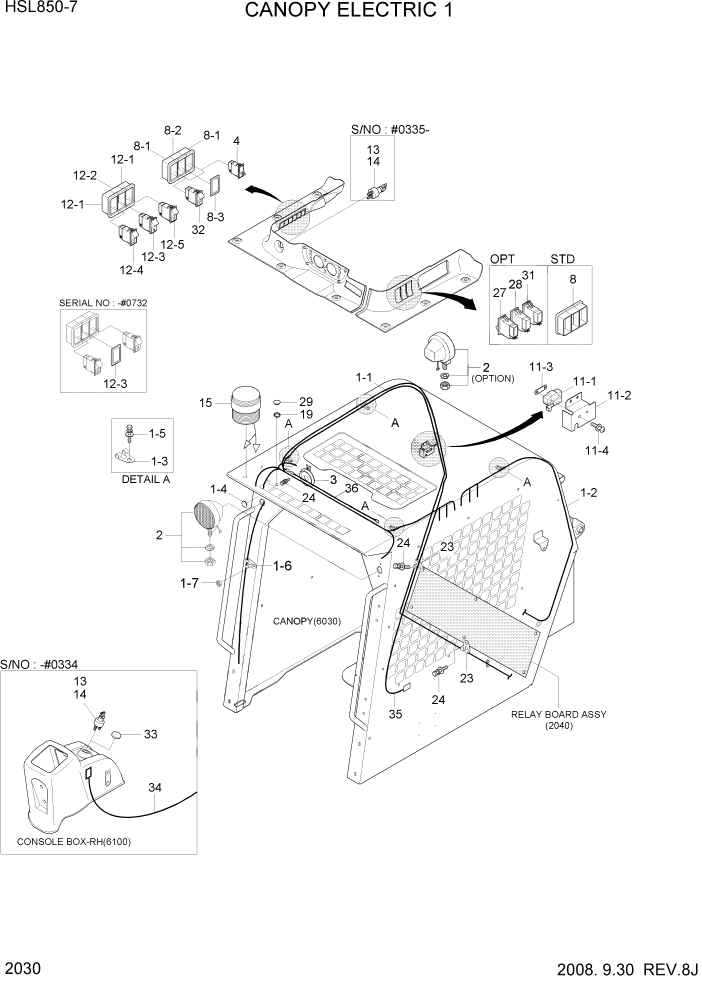

Запчасти Hyundai HSL800-7 PAGE 2030 CANOPY ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

20S7-00221

ELEC CAB SUB ASSY

CAB TYPE

1шт.

1

20S7-00211

ELEC CANOPY SUB ASSY

CANOPY TYPE

1шт.

1-1

21S7-02450

HARNESS-MAIN

#0003

1шт.

1-1

21S7-02451

HARNESS-MAIN

#0004 - #0018

1шт.

1-1

21S7-02452

HARNESS-MAIN

#0019

1шт.

1-2

21S7-02440

HARNESS-AIRCON,HEATER

CAB TYPE ONLY

1шт.

1-3

S593-000752

CLIP-HARNESS

4шт.

1-4

71S4-70100

CAP-RUBBER

2шт.

N1

20S7-00221

ELEC CAB SUB ASSY

NOT

1шт.

1-5

S035-081522

BOLT-W/WASHER

4шт.

1-6

S593-000902

CLIP-HARNESS

#0004

1шт.

1-7

S205-101002

NUT-HEX

#0004

1шт.

N1

20S7-00211

ELEC CANOPY SUB ASSY

NOT

1шт.

2

F12840010

LAMP SUB ASSY-WORK

OPT

3шт.

2-1

S866-120550

BULB

NOT SHOWN

1шт.

1-1

21S7-02450

HARNESS-MAIN

#0003

1шт.

3

21M8-00070

HORN-HIGH

#0019

1шт.

1-1

21S7-02451

HARNESS-MAIN

#0004 - #0018

1шт.

1-1

21S7-02452

HARNESS-MAIN

#0019 - #0193

1шт.

1-1

21S7-02453

HARNESS-MAIN

#0194 - #0334

1шт.

1-1

21S7-02454

HARNESS-MAIN

#0335 - #0432

1шт.

1-1

21S7-02456

HARNESS-MAIN

#0432 - #0767

1шт.

1-1

21S7-02457

HARNESS-MAIN

#0768 - #1139

1шт.

1-1

21S7-02458

HARNESS-MAIN

#1140

1шт.

1-2

21S7-02440

HARNESS-AIRCON,HEATER

CAB TYPE ONLY #0431

1шт.

1-2

21S7-02441

HARNESS-AIRCON,HEATER

CAB TYPE ONLY #0432

1шт.

1-3

S593-000752

CLIP-HARNESS

4шт.

1-4

71S4-70100

CAP-RUBBER

2шт.

1-5

S035-081522

BOLT-W/WASHER

4шт.

1-6

S593-000902

CLIP-HARNESS

#0004

1шт.

1-7

S205-101002

NUT-HEX

#0004

1шт.

2

F12840010

LAMP SUB ASSY-WORK

OPT

3шт.

2-1

S866-120550

BULB

NOT SHOWN

1шт.

3

21S4-01090

HORN ASSY

#0018

1шт.

12

21S7-02163

SWITCH ASSY

#0733

1шт.

3

21M8-00070

HORN-HIGH

#0019 - #1139

1шт.

3

21M8-00071

HORN-HIGH

#1140

1шт.

4

21S7-02180

SWITCH-BUZZER STOP

1шт.

12-3

21S7-02240

SWITCH-ATTACH

#0733

1шт.

8

21S7-02170

SWITCH COVER ASSY

2шт.

8-1

21E6-10680

PIECE-END

2шт.

8-2

21E6-10670

PIECE-INTERMEDIARY

1шт.

8-3

21E6-10460

COVER

3шт.

11

21S7-03300

SWITCH ASSY

1шт.

11-1

21S8-02120

SWITCH-MICRO

1шт.

11-2

21S7-03310

COVER

1шт.

11-3

21S8-02140

PLATE

1шт.

11-4

S131-043046

SCREW-W/WASHER

2шт.

12

21S7-02162

SWITCH ASSY

#0732

1шт.

12

21S7-02163

SWITCH ASSY

#0733

1шт.

15

21FG-10810

STROBE LAMP-AMBER

BEACON LAMP #0170

1шт.

15

21FG-10820

STROBE LAMP-BLUE

BEACON LAMP #0170

1шт.

12-1

21E6-10680

PIECE-END

2шт.

12-2

21E6-10670

PIECE-INTERMEDIARY

1шт.

12-3

21E6-10460

COVER

#0732

1шт.

12-3

21S7-02240

SWITCH-ATTACH

#0733

1шт.

12-4

21S4-01390

SWITCH-RESET

1шт.

12-5

21M8-01101

SWITCH-MAIN LIGHT

1шт.

13

21N4-10430

SWITCH ASSY-INCL KEY

KOREA/CHINA

1шт.

13-1

21N4-10430K100

KEY-START

NOT SHOWN

1шт.

14

21N4-10400

SWITCH ASSY-INCL KEY

EXPORT

1шт.

14-1

21N4-10400K

KEY-START

NOT SHOWN

1шт.

15

F23842010

STROBE LAMP-RED

BEACON LAMP

1шт.

15

21FG-10810

STROBE LAMP-AMBER

BEACON LAMP #0170

1шт.

15

21FG-10820

STROBE LAMP-BLUE

BEACON LAMP #0170

1шт.

19

S681-100400

GROMMET

BEACON LAMP

1шт.

23

S593-000902

CLIP-HARNESS

2шт.

24

S035-081522

BOLT-W/WASHER

3шт.

27

21S1-31600

SWITCH-BEACON

BEACON LAMP

1шт.

28

21S4-09500

SWITCH-OVERLOAD

OPT

1шт.

29

S661-150300

CAP-RUBBER

STD

1шт.

31

21S4-09040

SWITCH-HEATER

CAB TYPE

1шт.

32

21S7-02230

SWITCH-WIPER

CAB TYPE

1шт.

33

S661-210300

CAP-RUBBER

A/S ITEM #0001

1шт.

34

21S7-50100

HARNESS-EXT

A/S ITEM #0001

1шт.

35

21S7-50110

HARNESS-EXT

A/S ITEM #0001

1шт.

36

21S7-50120

HARNESS-EXTENSION

A/S ITEM #0001

1шт.

28

21S4-09500

SWITCH-OVERLOAD

OPT

1шт.

29

S661-150300

CAP-RUBBER

STD

1шт.

31

21S4-09040

SWITCH-HEATER

CAB TYPE

1шт.

32

21S7-02230

SWITCH-WIPER

CAB TYPE

1шт.

33

S661-210300

CAP-RUBBER

A/S ITEM #0001

1шт.

34

21S7-50100

HARNESS-EXT

A/S ITEM #0001

1шт.

35

21S7-50110

HARNESS-EXT

A/S ITEM #0001

1шт.

36

21S7-50120

HARNESS-EXTENSION

A/S ITEM #0001

1шт.
