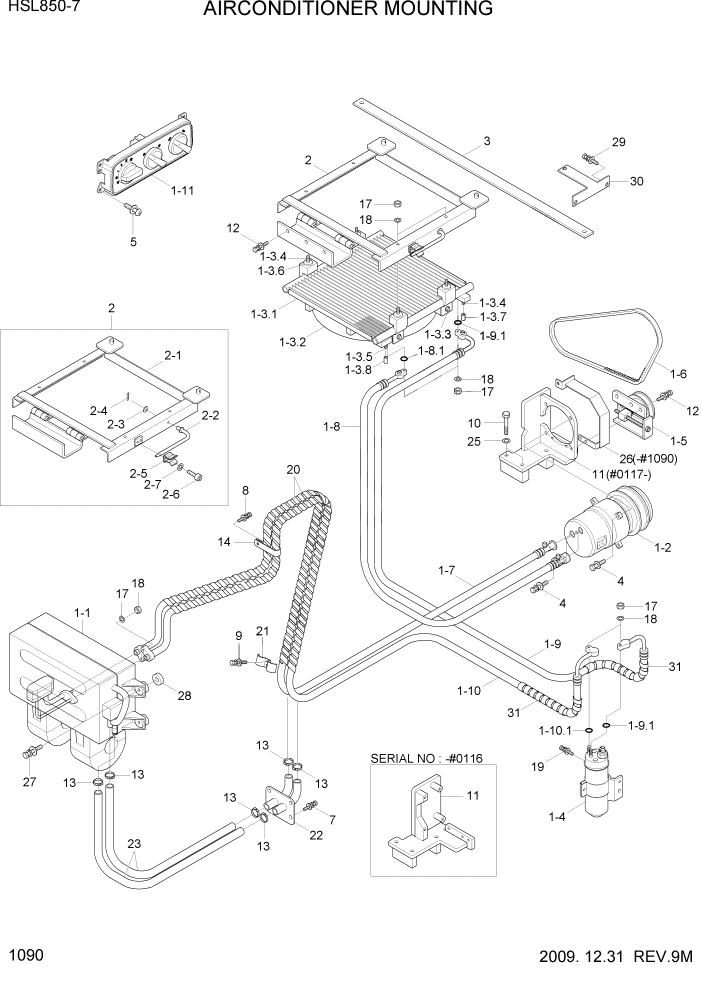

Запчасти Hyundai HSL800-7 PAGE 1090 AIR CONDITIONER MOUNTING ДВИГАТЕЛЬ

26

11S7-90641

COVER-A/CON BELT

#0117

1шт.

1

11S7-90021

AIRCON ASSY

#0116

1шт.

1

11S7-90022

AIRCON ASSY

#0117

1шт.

1-1

11S7-90100

AIRCON UNIT

1шт.

1-2

11M8-90210

COMPRESSOR ASSY

#0116

1шт.

1-2

11M8-90970

COMPRESSOR ASSY

#0117

1шт.

1-3

11S7-90080

CONDENSER ASSY

1шт.

1-3-1

11S7-90350

CONDENSER UNIT ASSY

1шт.

1-3-2

11S7-90360

FAN SHROUD ASSY

1шт.

1-3-3

11S7-90370

FLANGE BOLT

4шт.

1-3-4

11S7-90380

STUD BOLT

5шт.

1-3-5

11S7-90390

STUD BOLT

1шт.

1-3-6

11S7-90400

CUSHION

4шт.

1-3-7

11S7-90410

CAP-INLET

1шт.

1-3-8

11S7-90420

CAP-OUTLET

1шт.

1-4

11M8-90160

DRYER-RECEIVER

1шт.

1-5

11S8-90260

BKT & T/PULLEY ASSY

#0001

1шт.

1-6

11S7-90110

V-BELT

#0116

1шт.

1-6

11S7-90650

V-BELT

#0117

1шт.

1-7

11S7-90121

HOSE-SUCTION

#0116

1шт.

1-7

11S7-90610

HOSE-SUCTION

#0117

1шт.

1-7-1

11S7-90490

O-RING

1шт.

1-7-2

11S7-90500

O-RING

1шт.

1-8

11S7-90132

HOSE-DISCHARGE

#0116

1шт.

1-8

11S7-90620

HOSE-DISCHARGE

#0117

1шт.

1-8-1

11S7-90510

O-RING

1шт.

1-8-2

11S7-90520

O-RING

1шт.

1-9

11S7-90141

HOSE-LIQUID(A)

1шт.

1-9-1

11S7-90530

O-RING

2шт.

1-1

11S7-90151

HOSE-LIQUID(B)

1шт.

1-10-1

11S7-90530

O-RING

2шт.

1-11

11S8-90080

CONTROLLER

1шт.

2

11S8-90092

BRACKET ASSY-COND

1шт.

2-1

11S8-90213

BRACKET WA

1шт.

2-2

11S8-90222

STAY WA

1шт.

2-3

S403-101002

WASHER-PLAIN

1шт.

2-4

S461-250202

PIN-SPLIT

1шт.

2-5

71M5-02440

HOLDER-ROD

1шт.

2-6

S015-050102

BOLT-HEX

2шт.

2-7

S403-051002

WASHER-PLAIN

2шт.

3

11S7-90210

PLATE-CROSS

1шт.

4

S035-083526

BOLT-W/WASHER

#0116

1шт.

4

S037-103522

BOLT-W/WASHER

#0117

5шт.

5

S131-051546

SCREW-W/WASHER

4шт.

6

S109-080956

BOLT-SOCKET

#0116

4шт.

7

S035-081522

BOLT-W/WASHER

5шт.

8

S037-102022

BOLT-W/WASHER

3шт.

9

S037-122522

BOLT-W/WASHER

2шт.

10

S017-100802

BOLT-HEX

4шт.

11

11S7-90183

BKT-COMPRESSER

#0116

1шт.

11

11S7-90630

BKT-COMPRESSER

#0117

1шт.

12

S037-102522

BOLT-W/WASHER

8шт.

13

S572-220006

CLAMP-HOSE,WIRE TYPE

#0116

8шт.

13

S572-280006

CLAMP-HOSE WIRE TYPE

#0117

4шт.

14

31E7-0312

CLAMP-HOSE

#0465

1шт.

14

31E7-0310

CLAMP-HOSE

#0466

1шт.

17

S205-061002

NUT-HEX

10шт.

18

S403-062002

WASHER-PLAIN

10шт.

19

S035-061522

BOLT-W/WASHER

2шт.

20

P753-080032

PROTECT COVER-HOSE

2шт.

21

31E7-0038

CLAMP

1шт.

22

11S8-90140

BRACKET-HOSE

1шт.

23

11S8-90150

HOSE-HEATER

#0116

2шт.

23

11S7-90660

HOSE-HEATER

#0117

2шт.

25

S441-100006

WASHER-HARDENED

4шт.

26

11S7-90230

COVER-A/CON BELT

#0001 - #0116

1шт.

N26

11S7-90640

COVER-A/CON BELT

NOT #0117 - #1090

1шт.

26

11S7-90641

COVER-A/CON BELT

A/S ITEM #0117 - #1090

1шт.

27

S035-084026

BOLT-W/WASHER

4шт.

28

11S7-90240

SPACER

4шт.

29

S035-083026

BOLT-W/WASHER

#0116

1шт.

29

S037-102522

BOLT-W/WASHER

#0117

2шт.

30

11S7-90250

BRACKET WA

1шт.

31

P753-060040

PROTECT COVER-HOSE

#0466

1шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
