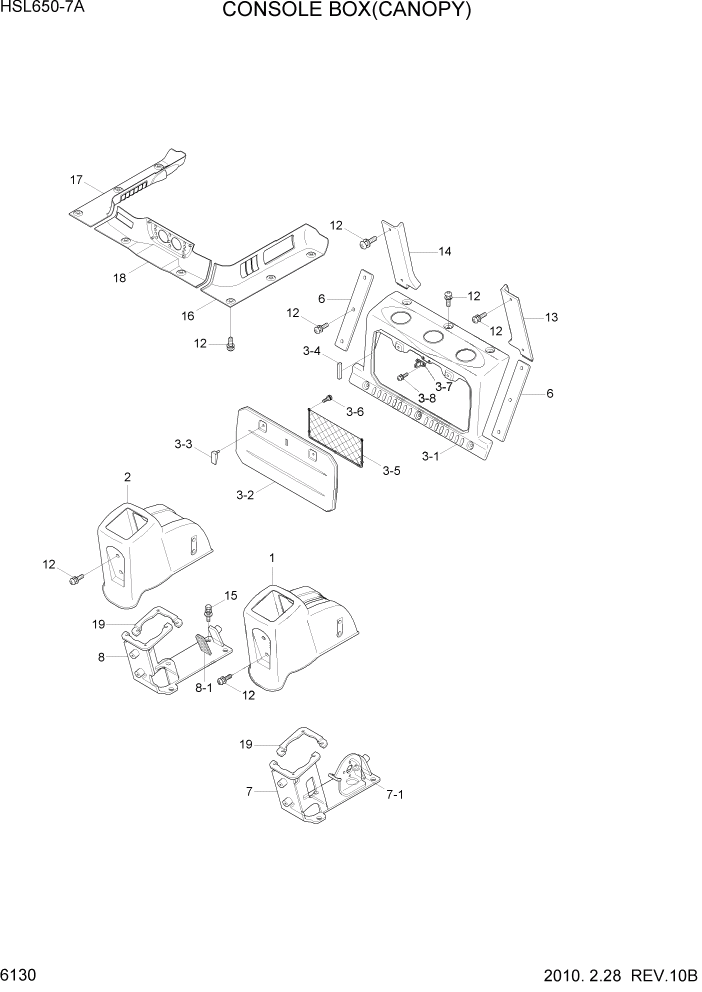

Запчасти Hyundai HSL650-7A PAGE 6130 CONSOLE BOX(CANOPY) СТРУКТУРА

1

71S8-20110

CONSOLE BOX-LH

1шт.

2

71S8-20120

CONSOLE BOX-RH

1шт.

3

71S7-20340

COVER ASSY-REAR

1шт.

3-1

71S7-20141

COVER-REAR

1шт.

3-2

71S7-20151

DOOR-REAR

1шт.

3-3

71EM-20150

LATCH ASSY

2шт.

3-4

71S7-20221

PAD-RUBBER

4шт.

3-5

71M8-20880

NET ASSY

1шт.

3-6

S151-040156

SCREW-TAPPING

2шт.

3-7

71S7-20350

PLATE WA

1шт.

3-8

S132-061526

SCREW-W/WASHER

2шт.

6

71S7-20311

COVER-REAR/SIDE

1шт.

7

71S7-21014

SUPPORT WA-LH

#0073

1шт.

7

71S7-21015

SUPPORT WA-LH

#0074

1шт.

7-1

71S7-20360

FOAM-SPONGE

1шт.

7-2

71S7-20361

FOAM-SPONGE

#0074

1шт.

8

71S7-21023

SUPPORT WA-RH

#0073

1шт.

8

71S7-21024

SUPPORT WA-RH

#0074

1шт.

8-1

71S7-20360

FOAM-SPONGE

1шт.

8-2

71S7-20361

FOAM-SPONGE

#0074

1шт.

12

S132-081526

SCREW-W/WASHER

37шт.

13

71S7-20321

COVER-HEAD/LH

1шт.

14

71S7-20331

COVER-HEAD/RH

1шт.

15

S035-102526

BOLT-W/WASHER

8шт.

16

71S7-20241

DASHBOARD-LH

1шт.

17

71S7-20251

DASHBOARD-RH

1шт.

18

71S7-20262

DASHBOARD-CENTER

1шт.

19

71S7-21030

PLATE WA

1шт.
