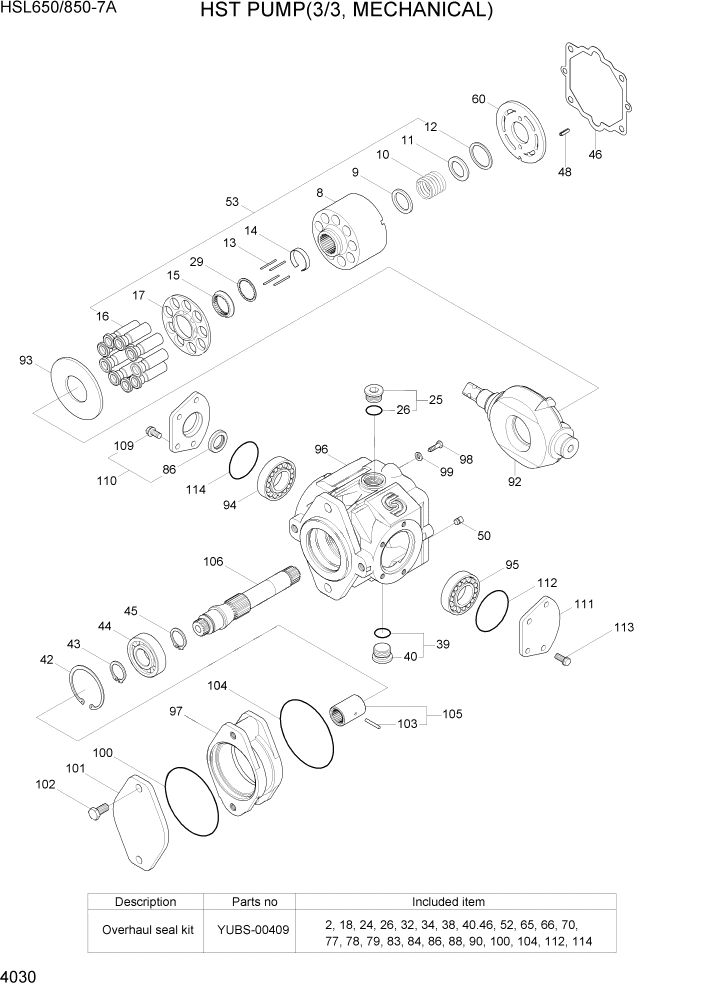

Запчасти Hyundai HSL650-7A PAGE 4030 HST PUMP(3/3, MECHANICAL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

HST PUMP-MECHANICAL

NOT

1шт.

53

YUBS-00349

CYLINDER BLOCK KIT

1шт.

8

YUBS-00350

CYLINDER BLOCK

1шт.

9

YUBS-00351

WASHER

1шт.

10

YUBS-00352

CYLINDER BLOCK SPRING

1шт.

11

YUBS-00353

WASHER

1шт.

12

YUBS-00236

RETAINING RING

1шт.

13

YUBS-00354

DOWNPIN-SLIPPER HOLD

4шт.

14

YUBS-00355

RETAINING RING

1шт.

15

YUBS-00356

GUIDE-SLIPPER RETAINER

1шт.

16

YUBS-00357

PISTON ASSY

8шт.

17

YUBS-00358

RETAINER-SLIPPER

1шт.

29

YUBS-00367

WASHER-THRUST

1шт.

25

YUBS-00364

PLUG

1шт.

K26

YUBS-00145

O-RING

1шт.

39

YUBS-00364

PLUG

1шт.

K40

YUBS-00145

O-RING

1шт.

42

YUBS-00197

RETAINING RING

1шт.

43

YUBS-00198

RING

1шт.

44

YUBS-00196

BALL BEARING

1шт.

45

YUBS-00198

RING

1шт.

K46

YUBS-00359

GASKET-END CAP

1шт.

48

YUBS-00361

SPRING PIN

1шт.

50

YUBS-00362

PIN

2шт.

60

YUBS-00373

REAR VALVE PLATE, LH

1шт.

60

YUBS-00417

REAR VALVE PLATE-LH

#0001

1шт.

92

YUBS-00368

PLATE-SWASH

1шт.

93

YUBS-00369

PLATE-THRUT

1шт.

94

YUBS-00370

TAPER ROLLER BEARING

1шт.

95

YUBS-00370

TAPER ROLLER BEARING

1шт.

96

YUBS-00346

FRONT PUMP HOUSING

1шт.

97

YUBS-00400

FLANGE ADAPTER

1шт.

N98

YUBS-00401

SCREW-SPECIAL

NOT

2шт.

99

YUBS-00402

WASHER

2шт.

K100

YUBS-00403

B PAD SEAL

1шт.

101

YUBS-00404

FLANGE COVER

1шт.

N102

YUBS-00401

SCREW-SPECIAL

NOT

2шт.

K104

YUBS-00406

O-RING

1шт.

105

YUBS-00407

COUPLING ASSEMBLY

1шт.

103

YUBS-00405

PIN

1шт.

106

YUBS-00408

REAR SHAFT

1шт.

110

YUBS-00395

TRUNNION COVER ASSY

1шт.

K86

YUBS-00396

LIP SEAL

1шт.

109

YUBS-00397

SCREW-HEX HEAD

4шт.

111

YUBS-00399

TRUNNION COVER

1шт.

K112

YUBS-00398

O-RING

1шт.

113

YUBS-00397

SCREW-HEX HEAD

4шт.

K114

YUBS-00398

O-RING

1шт.

K

YUBS-00409

OVERHAUL SEAL KIT

SEE ILLUST

1шт.
