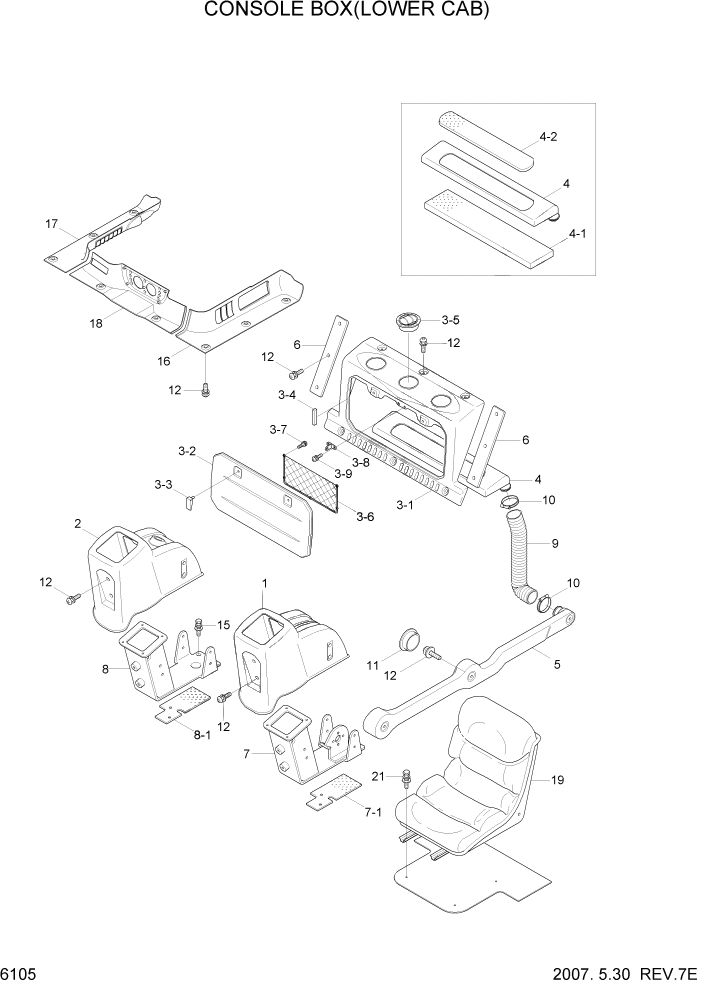

Запчасти Hyundai HSL650-7 PAGE 6105 CONSOLE BOX(LOWER CAB) СТРУКТУРА

1

71S7-20111

CONSOLE BOX-LH

1шт.

2

71S7-20121

CONSOLE BOX-RH

#0235

1шт.

2

71S7-20122

CONSOLE BOX-RH

#0236

1шт.

3

71S7-20131

COVER ASSY-REAR

1шт.

3-1

71S7-20141

COVER-REAR

1шт.

3-2

71S7-20151

DOOR-REAR

1шт.

3-3

71EM-20150

LATCH ASSY

2шт.

3-4

71S7-20221

PAD-RUBBER

4шт.

3-5

71N6-03300

AIR VENT

3шт.

4

71S7-20161

DUCT-AICON

1шт.

4-1

71S7-20291

SPONGE

1шт.

4-2

71S7-20301

SPONGE

1шт.

5

71S7-20171

DUCT-SIDE

1шт.

6

71S7-20311

COVER-REAR/SIDE

2шт.

7

71S7-20192

SUPPORT WA-LH

1шт.

7-1

71S7-20360

FOAM-SPONGE

1шт.

8

71S7-20202

SUPPORT WA-RH

1шт.

8-1

71S7-20360

FOAM-SPONGE

1шт.

9

71S7-20211

HOSE-DEFROSTER

1шт.

10

S520-055000

CLAMP-HOSE

2шт.

11

71N6-03300

AIR VENT

2шт.

12

S132-081526

SCREW-W/WASHER

37шт.

15

S035-102526

BOLT-W/WASHER

8шт.

16

71S7-20241

DASHBOARD-LH

1шт.

17

71S7-20251

DASHBOARD-RH

1шт.

18

71S7-20261

DASHBOARD-CENTER

#0234

1шт.

18

71S7-20262

DASHBOARD-CENTER

#0235

1шт.

19

71S7-20410

SEAT ASSY-NONRAIL

1шт.

19

72S4-10500

SEAT ASY-WITHOUT BELT

1шт.

20

S132-08352V

SCREW-W/WASHER

4шт.

21

S105-080156

BOLT-SOCKET

4шт.
