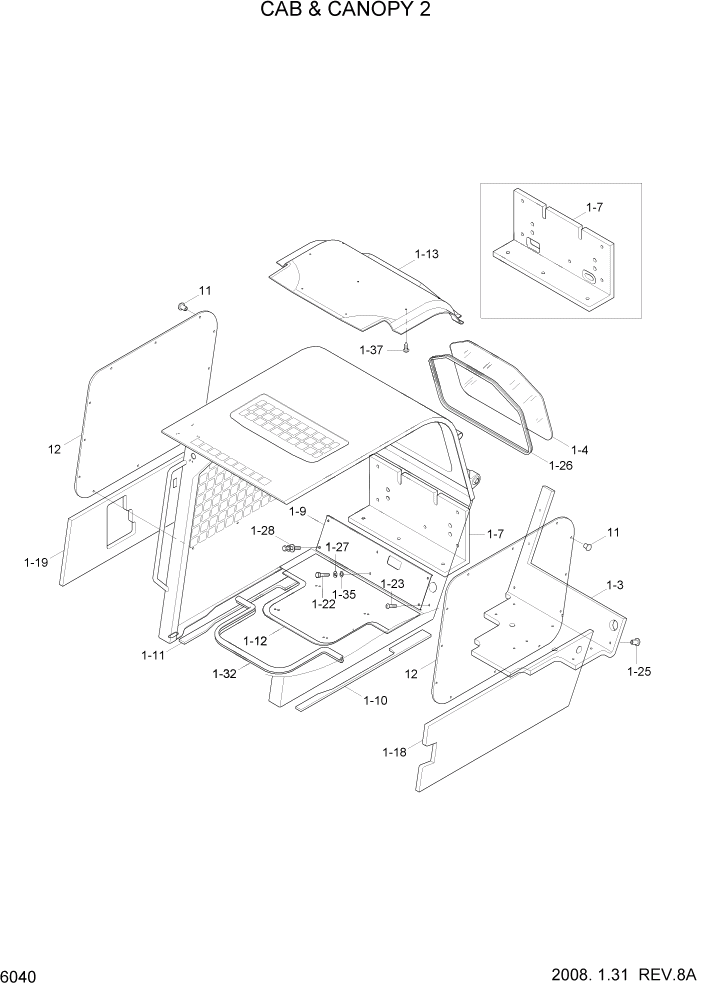

Запчасти Hyundai HSL650-7 PAGE 6040 CAB & CANOPY 2 СТРУКТУРА

1

@

CANOPY ASSY

NOT

1шт.

1

@

CAB ASSY

NOT

1шт.

1-3

71S7-00201

INSULATION

LOW NOISE ONLY

1шт.

1-3

72S7-00220

INSULATION

#0014

1шт.

1-4

71S7-00250

GLASS-REAR

1шт.

1-7

71S7-00380

INSULATION-REAR

LOW NOISE ONLY

1шт.

1-7

71S7-00271

INSULATION-REAR

CAB

1шт.

1-9

71S7-00801

COVER WA

#0095

1шт.

1-9

71S7-00802

COVER WA

#0096

1шт.

1-1

71S7-00220

STRIP-LH

1шт.

1-11

71S7-00230

STRIP-RH

1шт.

1-12

71S7-00211

INSULATION

LOW NOISE ONLY

1шт.

1-12

72S7-00210

INSULATION

#0014

1шт.

1-13

71S7-00310

HEADLINING

1шт.

1-18

71S7-00930

INSULATOR-LH

CANOPY

1шт.

1-18

71S7-00261

INSULATOR-LH

CAB

1шт.

1-19

71S7-00940

INSULATOR-RH

1шт.

1-22

S017-080606

BOLT-HEX

1шт.

1-23

S161-050252

SCREW-CROSS R/ROUND

12шт.

1-25

71EM-51580

CAP-STUD BOLT

12шт.

1-26

S781-119702

SEAL-GLASS

1шт.

1-27

S411-080006

WASHER-SPRING

2шт.

1-28

S035-081526

BOLT-W/WASHER

8шт.

1-32

S771-012000

WEATHER STRIP

1шт.

1-35

S403-080006

WASHER-PLAIN

2шт.

1-37

E171-1310

PLUG

10шт.

11

71S4-10830

RIVET-SCREW

CANOPY

1шт.

12

71S4-10790

ACRYL-SIDE

CANOPY

2шт.
