Запчасти Hyundai HSL650-7 PAGE 6030 CAB & CANOPY 1 СТРУКТУРА

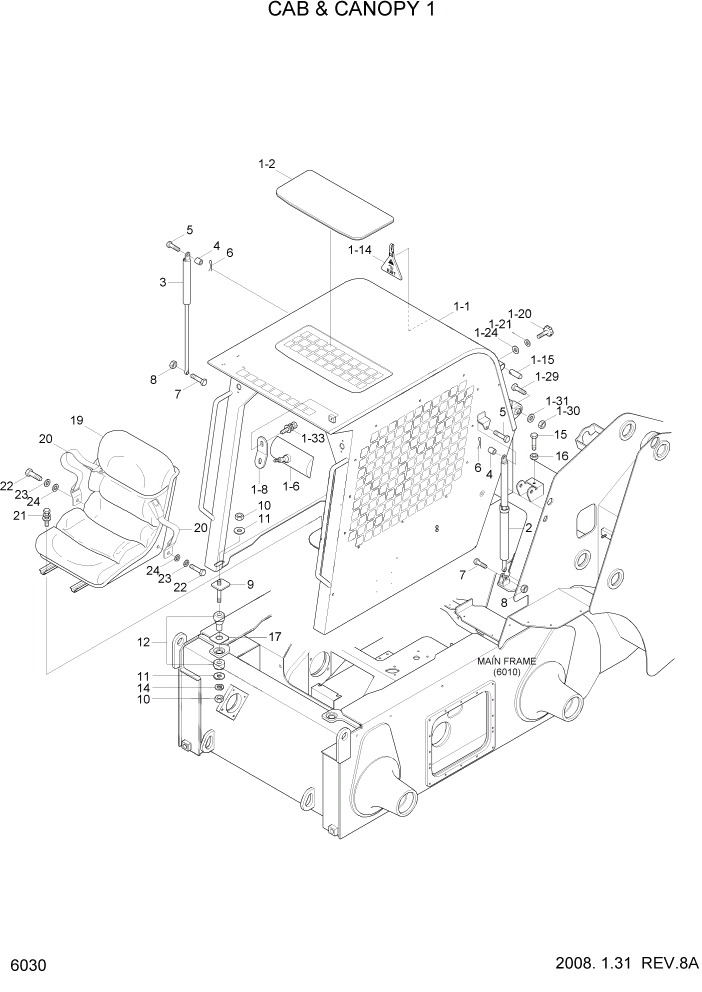

Схема запчастей Hyundai HSL650-7 - PAGE 6030 CAB & CANOPY 1 СТРУКТУРА

Артикул

Название

Примечание

Количество

1

71S7-02001

CANOPY ASSY

SEE 6040 #0095

1шт.

1

71S7-02002

CANOPY ASSY

SEE 6040 #0096 - #0234

1шт.

1

71S7-02003

CANOPY ASSY

SEE 6040 #0235

1шт.

1

71S7-00102

CAB ASSY

SEE 6040-6070 #0095

1шт.

1

71S7-02010

CANOPY ASSY

SEE 6040, STD #0402

1шт.

1

71S7-00102

CAB ASSY(LOW NOISE)

SEE 6040-6070 #0095

1шт.

1

71S7-00103

CAB ASSY(LOW NOISE)

SEE 6040-6070 #0096 - #0234

1шт.

1

71S7-00104

CAB ASSY(LOW NOISE)

SEE 6040-6070 #0235 - #0809

1шт.

1

71S7-00105

CAB ASSY

#0810

1шт.

1

71S7-00110

CAB ASSY

SEE 6040-70,STD #0402 - #0809

1шт.

1

71S7-00111

CAB ASSY

#0810

1шт.

1-1

71S7-00501

CANOPY WA-ROPS

#0095

1шт.

1-1

71S7-00502

CANOPY WA

#0096 - #0234

1шт.

1-1

71S7-00503

CANOPY WA

#0235

1шт.

1-2

71S7-00692

COVER(PC)

1шт.

1-6

71L1-3377

MIRROR-ROOM

1шт.

1-8

71S4-10870

BRACKET

1шт.

1-14

71S4-10670

TAG-EXIT

1шт.

1-15

71S4-10700

PIN-LOCK

1шт.

1-2

61S1-1008

BOLT ASSY-SPECIAL

1шт.

1-21

61S1-1036

PACKING-RUBBER

1шт.

1-24

S403-082002

WASHER-PLAIN

1шт.

1-29

S017-181052

BOLT-HEX

2шт.

1-3

S275-180002

NUT-SELF LOCKING

2шт.

1-31

S403-182002

WASHER-PLAIN

2шт.

1-33

S033-081526

BOLT-W/WASHER

1шт.

2

71S4-10530

GAS SPRING-LOCK TYPE

CANOPY

1шт.

3

71S4-10540

GAS SPRING-NON LOCK

CANOPY

1шт.

3

71S4-20571

GAS SPRING

CAB

2шт.

4

72S4-10710

NYLON BUSH

#0356

2шт.

4

71S4-10711

NYLON BUSH

#0357

2шт.

5

11S4-30060

BOLT-SPECIAL

2шт.

6

S501-080002

PIN-SELF LOCKING

2шт.

7

S017-100452

BOLT-HEX

2шт.

8

S275-100002

NUT-SELF LOCKING

2шт.

9

71S4-10581

SUPPORT WA-BOLT

2шт.

10

S205-121002

NUT-HEX

4шт.

11

11S1-3017

WASHER-SPECIAL

4шт.

12

11S1-3016

RUBBER-MOUNT

2шт.

14

S411-120002

WASHER-SPRING

2шт.

15

S017-160552

BOLT-HEX

2шт.

16

S205-163002

NUT-HEX

2шт.

16

S205-163002

NUT-HEX

2шт.

17

71S7-00950

RUBBER PAD

CAB

1шт.

19

71S4-10501

SEAT ASSY-SEARS/2"

EXPORT

1шт.

19

72S4-10500

SEAT ASY-WITHOUT BELT

DOMESTIC

1шт.

19

71S7-10500

SEAT ASSY-SEARS/3"

EXPORT #0080

1шт.

19

71S7-10510

SEAT ASSY-WOO/2"

DOMESTIC #0122

1шт.

20

71S4-10760

SEAT BELT

1шт.

20

71S4-10760

SEAT BELT

1шт.

21

S105-080156

BOLT-SOCKET

#0013

4шт.

21

S132-08352V

SCREW-W/WASHER

#0014

4шт.

22

81S1-0021

BOLT-HEX

2шт.

23

81S1-0022

WASHER-SPRING

2шт.

24

81S1-0023

WASHER-PLAIN

2шт.

Выбрано товаров: 55
