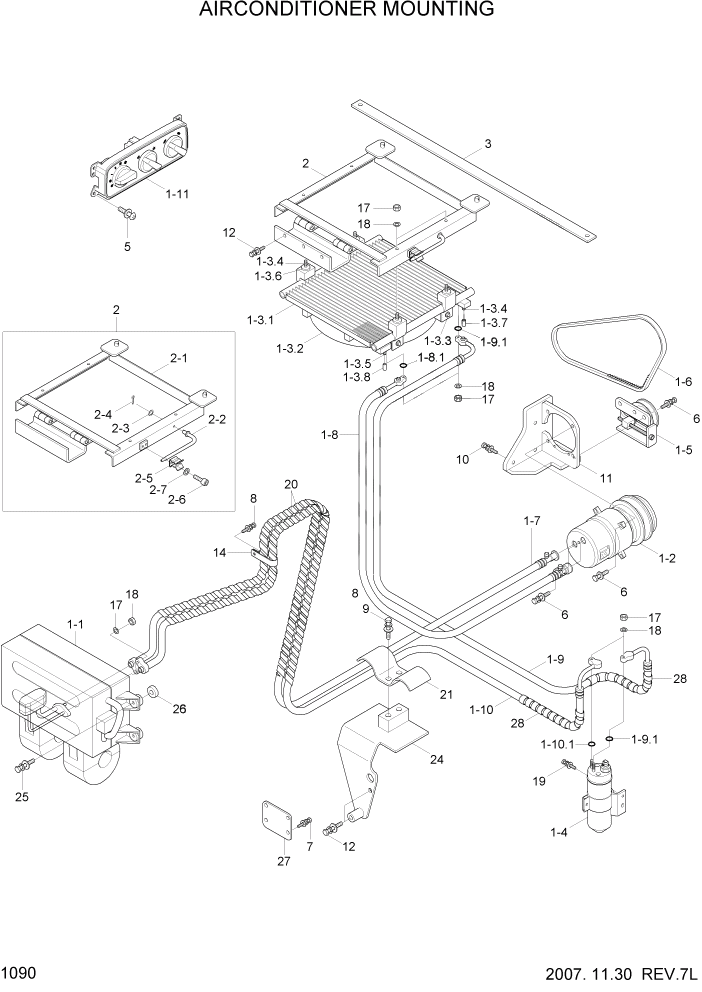

Запчасти Hyundai HSL650-7 PAGE 1090 AIR CONDITIONER MOUNTING ДВИГАТЕЛЬ

1

11S8-90022

AIRCON ASSY

#0001

1шт.

1-1

@

AIRCON UNIT

NOT

1шт.

1-2

11M8-90970

COMPRESSOR ASSY

#0001

1шт.

1-3

11S7-90080

CONDENSER ASSY

1шт.

1-3-1

11S7-90350

CONDENSER UNIT ASSY

1шт.

1-3-2

11S7-90360

FAN & SHROUD ASSY

1шт.

1-3-3

11S7-90370

BOLT-FLANGE

4шт.

1-3-4

11S7-90380

STUD BOLT

5шт.

1-3-5

11S7-90390

STUD BOLT

1шт.

1-3-6

11S7-90400

CUSHION

4шт.

1-3-7

11S7-90410

CAP-INLET

1шт.

1-3-8

11S7-90420

CAP-OUTLET

1шт.

1-4

11M8-90160

DRYER-RECEIVER

1шт.

1-5

11S8-90260

BKT & T/PULLEY ASSY

#0001

1шт.

1-6

11S8-90270

V-BELT (A-47")

#0001

1шт.

1-7

11S8-90280

HOSE-SUCTION

#0001

1шт.

1-7-1

11S7-90490

O-RING

1шт.

1-7-2

11S7-90500

O-RING

1шт.

1-8

11S8-90290

HOSE-DISCHARGE

#0001

1шт.

1-8-1

11S7-90510

O-RING

1шт.

1-8-2

11S7-90520

O-RING

1шт.

1-9

11S8-90060

HOSE-LIQUID(A)

1шт.

1-9-1

11S7-90530

O-RING

2шт.

1-1

11S8-90070

HOSE-LIQUID(B)

1шт.

1-10-1

11S7-90530

O-RING

2шт.

1-11

11S8-90080

CONTROLLER

1шт.

2

11S8-90092

BRACKET ASSY-COND

1шт.

2-1

11S8-90213

BRACKET WA

1шт.

2-2

11S8-90222

STAY WA

1шт.

2-3

S403-101002

WASHER-PLAIN

1шт.

2-4

S461-250202

PIN-SPLIT

1шт.

2-5

71M5-02440

HOLDER-ROD

1шт.

2-6

S015-050102

BOLT-HEX

2шт.

2-7

S403-051002

WASHER-PLAIN

2шт.

3

11S8-90100

PLATE-CROSS

1шт.

4

S035-08352V

BOLT-W/WASHER

#0001

6шт.

5

S131-05154V

SCREW-W/WASHER

#0001

4шт.

6

S037-10352V

BOLT-W/WASHWR

#0001

6шт.

7

S035-08152V

BOLT-W/WASHER

#0001

4шт.

8

S037-10202V

BOLT-W/WASHER

#0001

3шт.

9

S037-12252V

BOLT-W/WASHER

#0001

2шт.

10

S037-12302V

BOLT-W/WASHER

#0001

3шт.

11

11S8-90300

BKT-COMPRESSOR

#0001

1шт.

12

S037-10252V

BOLT-W/WASHER

#0001

7шт.

13

S572-220006

CLAMP-HOSE WIRE TYPE

8шт.

14

31E7-0312

CLAMP-HOSE

#0356

1шт.

14

31E7-0310

CLAMP-HOSE

#0357

1шт.

17

S205-06100V

NUT-HEX

#0001

10шт.

18

S403-06200V

WASHER-PLAIN

#0001

10шт.

19

S035-06152V

BOLT-W/WASHER

#0001

2шт.

20

P753-080040

PROTECT COVER-HOSE

2шт.

21

31E7-0038

CLAMP

1шт.

24

11S8-90251

BRACKET WA

1шт.

25

11S7-90660

HOSE-HEATER

#0001

2шт.

26

11S7-90240

SPACER

#0001

4шт.

27

11S8-90130

COVER

#0001

1шт.

28

P753-060040

PROTECT COVER-HOSE

#0357

2шт.
