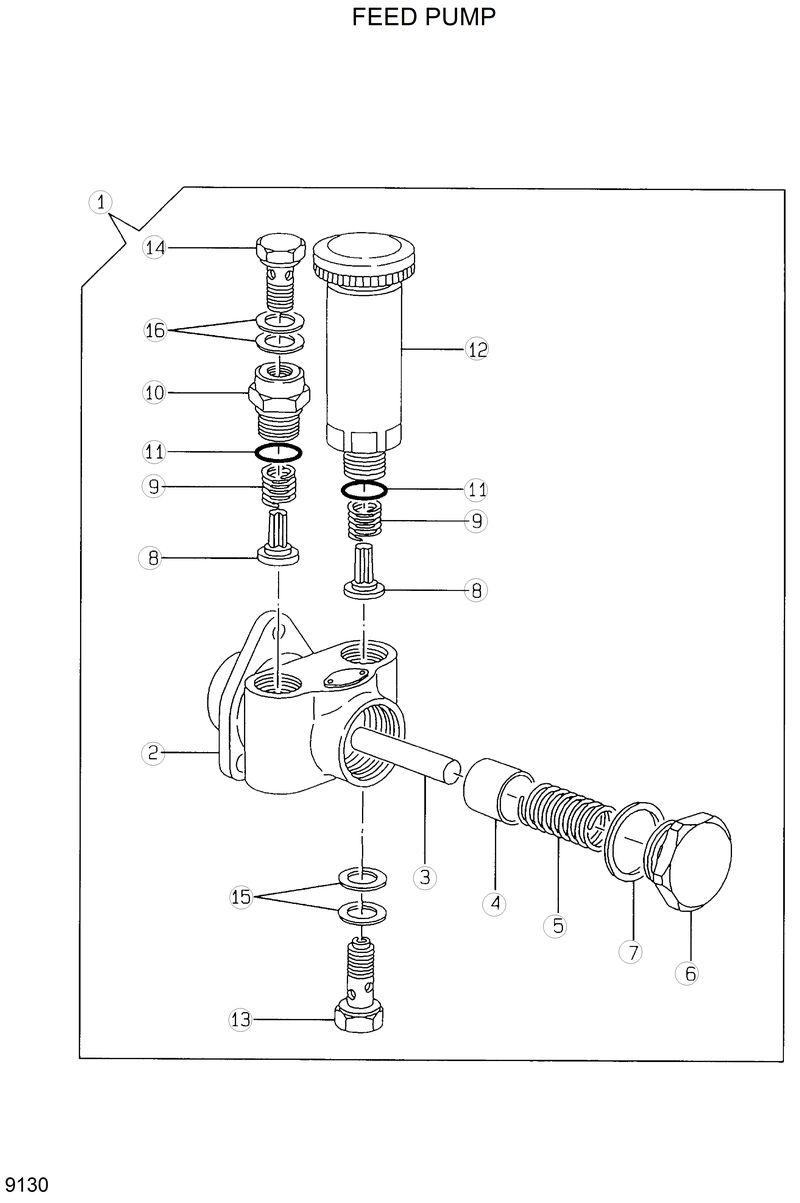

Запчасти Hyundai HSL810 FEED PUMP

1

129900-52010

129900-52010-. Pump Assy-Fuel Feed

10

X1521180900

X1521180900-.. Adapter

11

X0296316060

X0296316060-.. O-Ring

12

X1522006720

X1522006720-.. Pump-Priming

13

X1523005920

X1523005920-.. Bolt

14

X0297314680

X0297314680-.. Bolt-Eye

16

X0265141840

X0265141840-.. Gasket

16

X0265141840

X0265141840-.. Gasket

2

X1520620020

X1520620020-.. Housing

3

X1520300200

X1520300200-.. Rod-Push

4

X1521002301

X1521002301-.. Piston

5

X1521020400

X1521020400-.. Spring

6

X1521051500

X1521051500-.. Plug

7

X1395260000

X1395260000-.. Gasket

8

X1521150500

X1521150500-.. Valve

9

X1521160200

X1521160200-.. Spring
