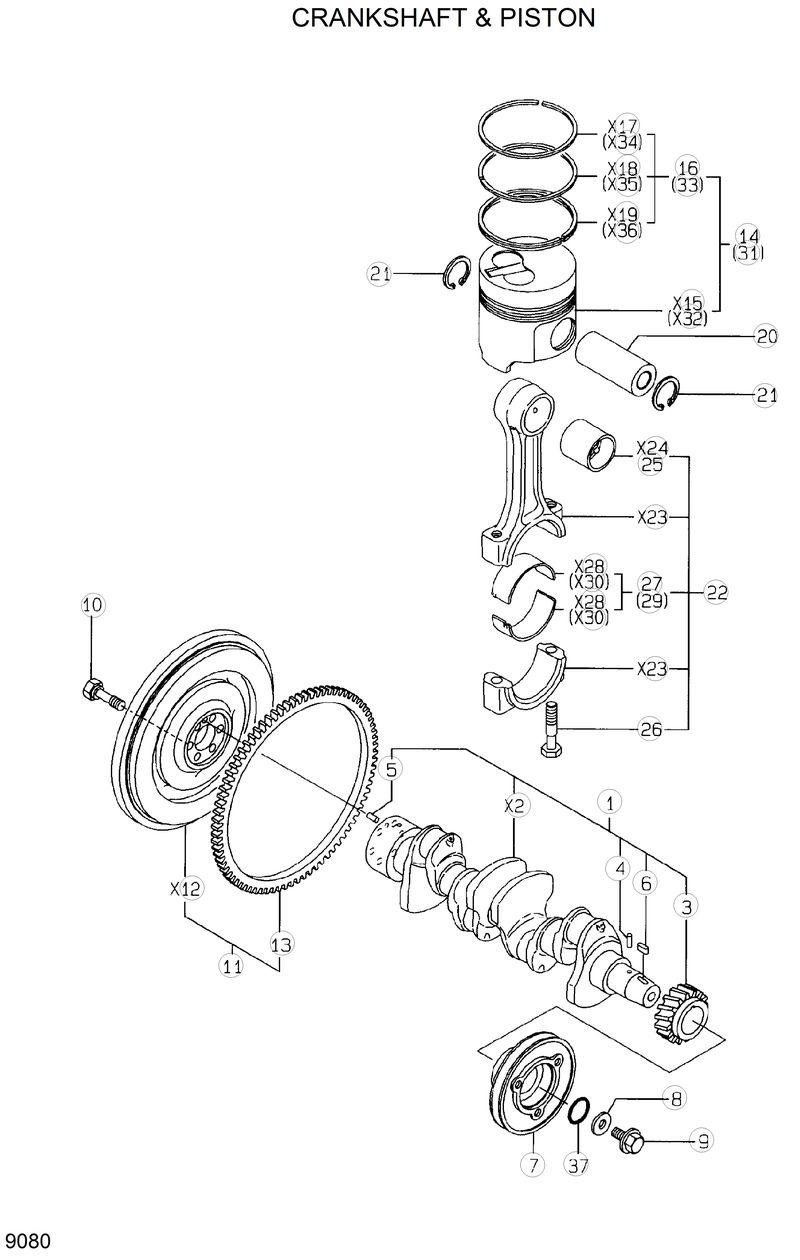

Запчасти Hyundai HSL810 CRANKSHAFT & PISTON

1

129902-21000

129902-21000-Crankshaft Comp

10

121850-21130

121850-21130-Bolt-Flywheel

11

129900-21580

129900-21580-Flywheel Assy

13

129900-21600

129900-21600-. Gear-Ring

14

129902-22080

129902-22080-Piston-W/Ring

16

129903-22050

129903-22050-. Ring Set

20

120130-22301

120130-22301-Pin-Piston

21

22252-000300

22252-000300-Circlip

22

129900-23000

129900-23000-Rod Assy-Connecting

23

129900-23010

129900-23010-. Rod-Connecting

24

129900-23100

129900-23100-. Metal-Piston Pin

25

129900-23910

129900-23910-. Bushing-Piston Pin

26

129900-23200

129900-23200-. Bolt-Rod

27

129900-23600

129900-23600-. Metal Assy-Crankpin

28

129900-23300

129900-23300-.. Metal-Crankpin

29

129900-23610

129900-23610-Bearing-Pin

3

129900-21200

129900-21200-. Gear-Crankshaft

30

129900-23350

129900-23350-. Bearing

31

129902-22900

129902-22900-Piston-W/Ring

33

129903-22950

129903-22950-. Ring-Set

37

24341-000530

24341-000530-O-Ring

4

121850-21290

121850-21290-. Pin-Parallel

5

121850-21920

121850-21920-. Pin-Parallel

6

22512-070140

22512-070140-. Key 7x 14

7

129900-21670

129900-21670-V-Pulley

8

129960-21640

129960-21640-Washer

9

121850-21680

121850-21680-Bolt- V-Pulley

N

@

@-Not Individually Supplied

N12

129900-21400

129900-21400-. Flywheel

N15

129902-22010

129902-22010-. Piston

N17

129903-22100

129903-22100-.. Ring-1st

N18

129902-22110

129902-22110-.. Ring-2nd

N19

129902-22160

129902-22160-.. Ring-Oil

N2

129902-21010

129902-21010-. Crankshaft

N32

129902-22700

129902-22700-. Piston

N34

129903-22750

129903-22750-.. Ring-Top

N35

129902-22760

129902-22760-.. Ring-2nd

N36

129902-22770

129902-22770-.. Ring-Oil
