Hyundai
/
Мини фронтальные погрузчики
/
HSL810
/

ATTACHMENT HOLDER(-#0061)

Запчасти Hyundai HSL810 ATTACHMENT HOLDER(-#0061)

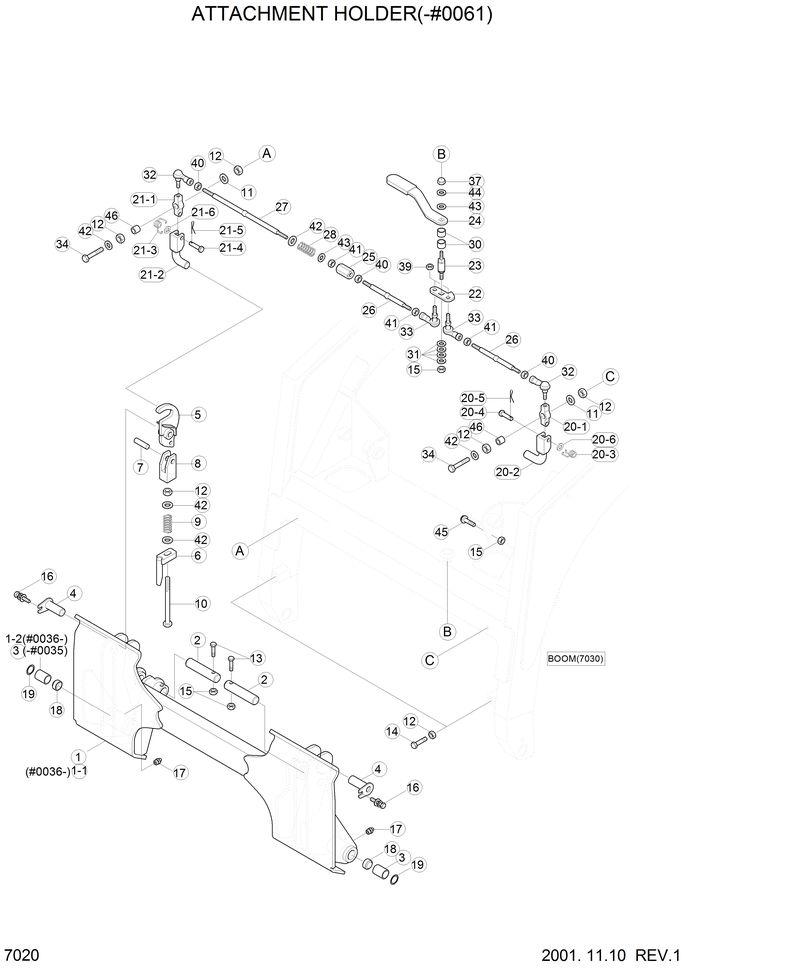

Схема запчастей Hyundai HSL810 - ATTACHMENT HOLDER(-#0061)

№

Артикул

Название

Примечание

Количество

61S5-01020

61S5-01020-I/Holder Sub Assy

1

61S5-00020

61S5-00020-I/Holder Wa

1-1

61S5-00020

61S5-00020-. I/Holder Wa

1-2

61S5-00041

61S5-00041-. Bushing

10

S017-161402

S017-161402-Bolt-Hex

11

S441-160002

S441-160002-Washer-Hardened

12

S205-161002

S205-161002-Nut-Hex

13

S017-100752

S017-100752-Bolt-Hex

14

S017-160452

S017-160452-Bolt-Hex

15

S275-100002

S275-100002-Nut-Self Locking

16

S035-061622

S035-061622-Bolt-W/Washer

17

S651-810002

S651-810002-Nipple-Grease

18

61S5-00380

61S5-00380-Plug-Expansion

19

S700-040104

S700-040104-Dust Seal-Dkiy Type

2

61S5-00030

61S5-00030-Pin

20-1

61S5-00540

61S5-00540-. Lever

20-1

61S5-00540

61S5-00540-. Lever

20-2

61S5-00560

61S5-00560-. Lever-Lh

20-3

61S5-00570

61S5-00570-. Spring

20-3

61S5-00570

61S5-00570-. Spring

20-4

61S5-00580

61S5-00580-. Pin

20-4

61S5-00580

61S5-00580-. Pin

20-5

S501-080002

S501-080002-. Pin-Self Locking

20-5

S501-080002

S501-080002-. Pin-Self Locking

20-6

S403-102002

S403-102002-. Washer-Plain

20-6

S403-102002

S403-102002-. Washer-Plain

21-2

61S5-00550

61S5-00550-. Lever-Rh

22

61S5-00431

61S5-00431-Plate

23

61S5-00441

61S5-00441-Pin

24

61S5-00450

61S5-00450-Lever-Hand

25

61S5-00460

61S5-00460-Link-Adjust

26

61S5-00470

61S5-00470-Rod

27

61S5-00480

61S5-00480-Rod

28

61S5-00490

61S5-00490-Spring

3

61S5-00041

61S5-00041-Bushing

30

81S4-10210

81S4-10210-Bushing-Nylon

31

11S1-1002

11S1-1002-Wahser-Conical Spring

32

S926-108000

S926-108000-Rod End

33

S926-208000

S926-208000-Rod End

34

61S5-00520

61S5-00520-Bolt-Hex

37

S295-100002

S295-100002-Nut-Domed Cap

39

S275-080002

S275-080002-Nut-Locking

4

61S4-00050

61S4-00050-Pin Wa

40

S205-081002

S205-081002-Nut-Hex

41

909905401

909905401-Nut-Hex

42

S403-162002

S403-162002-Washer-Plain

43

S403-102002

S403-102002-Washer-Plain

44

S411-100002

S411-100002-Washer-Spring

45

71EH-13150

71EH-13150-Bumper-Rubber

46

61S5-00530

61S5-00530-Spacer

5

61S5-00341

61S5-00341-Lever Wa

6

61S5-00311

61S5-00311-Pin Wa

7

61S1-0039

61S1-0039-Pin

8

61S5-00400

61S5-00400-Block-Adjust

9

61S1-0040

61S1-0040-Spring

N20

61S5-00421

61S5-00421-Lever Assy-Lh

N21

61S5-00411

61S5-00411-Lever Assy-Rh

Выбрано товаров: 57
