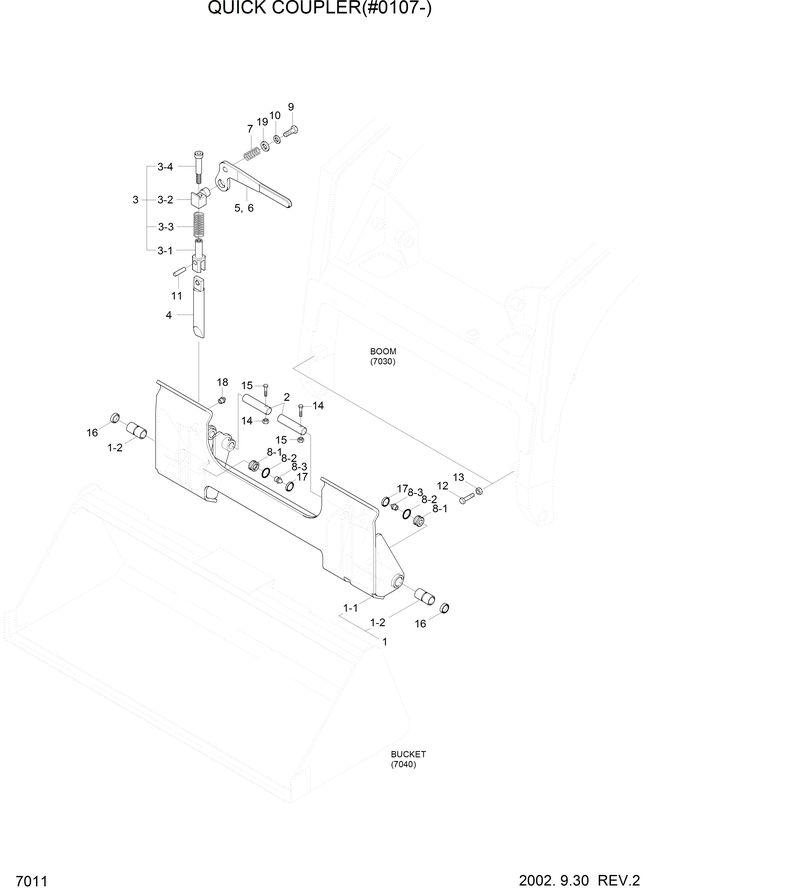

Запчасти Hyundai HSL810 QUICK COUPLER(#0107-)

61S5-01022

61S5-01022-Quick Coupler Sub Assy

61S5-00022

61S5-00022-. Quick Coupler Wa

*

@

@-Quick Coupler

1

61S5-01021

61S5-01021-Quick Coupler Sub Ass'Y

1-1

61S5-00021

61S5-00021-. Quick Coupler Wa

1-2

61S5-00041

61S5-00041-. Bushing

10

S403-142002

S403-142002-Washer-Plain

11

S472-920504

S472-920504-Pin-Spring

12

S017-160452

S017-160452-Bolt-Hex

13

S205-161002

S205-161002-Nut-Hex

14

S017-100752

S017-100752-Bolt-Hex

15

S275-100002

S275-100002-Nut-Self Locking

16

S700-040104

S700-040104-Dust Seal-Dkiy Type

17

S602-040004

S602-040004-Ring-Retaining

18

S651-810002

S651-810002-Nipple-Grease

19

S403-102002

S403-102002-Washer-Plain

2

61S5-00030

61S5-00030-Pin

3

61S5-00710

61S5-00710-Adjuster Assy

3-1

61S5-00790

61S5-00790-. Clevis-Double

3-2

61S5-00800

61S5-00800-. Block

3-3

61S5-00810

61S5-00810-. Spring

3-4

61S5-00820

61S5-00820-. Bolt

4

61S5-00721

61S5-00721-Pin

5

61S5-00750

61S5-00750-Hand Lever-Rh

6

61S5-00760

61S5-00760-Hand Lever-Lh

7

61S5-00771

61S5-00771-Spring

8

61S5-00381

61S5-00381-Plug Assy

8-1

61S5-00850

61S5-00850-. Plug

8-2

S631-034001

S631-034001-. O-Ring

8-3

S651-810002

S651-810002-. Nipple-Grease

9

S017-100652

S017-100652-Bolt-Hex
